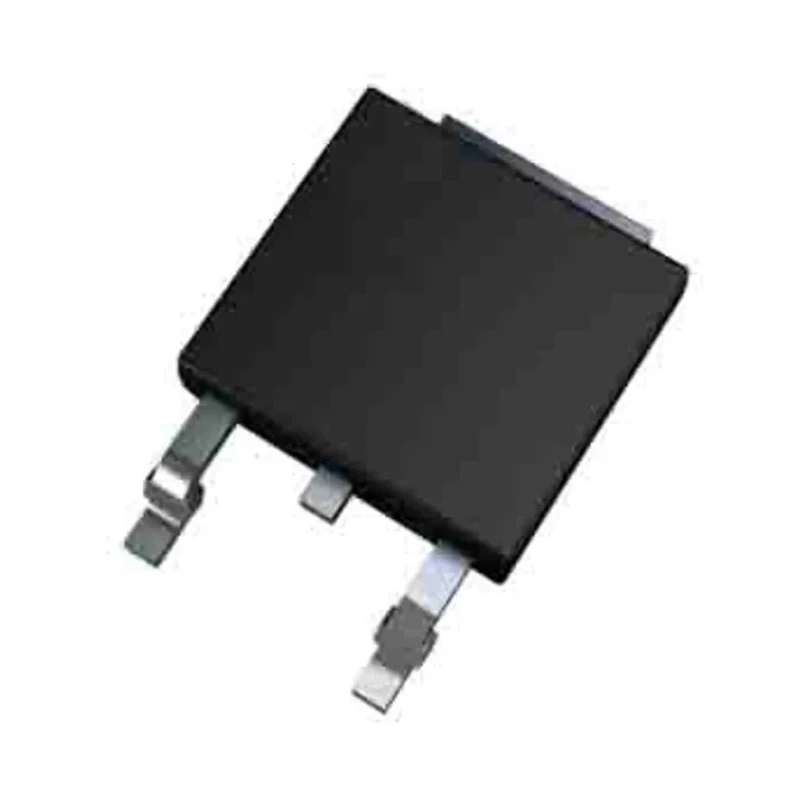

Littelfuse Thyristor SCR 600 V 16 A 6 mA Gate 200 A Surge Current TO-252AA SV6016D1RP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | SV6016D1RP |
| Mount Type | Through Hole |
| Series | SV6016Dx |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252AA |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 200A |
| Maximum Gate Trigger Current Igt | 6mA |
| Maximum Holding Current Ih | 40mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
Key Features
- This thyristor features a 600 V repetitive peak reverse voltage for robust operation.
- Rated average on-state current is 16 A for continuous use.
- The gate trigger current is low at 6 mA, allowing efficient triggering.
- It has a maximum operating junction temperature of 150°C ensuring reliability.
- Mount type is through hole with TO-252AA package type for easy PCB mounting.
- The device withstands surge currents up to 200 A at 60 Hz half cycle.
- Operating temperature range extends down to -40°C suitable for harsh conditions.
- Pin count is 3, standard for SCR devices to interface with circuits.
Product Description
The Littelfuse SV6016D1RP is a high junction temperature silicon controlled rectifier (SCR) thyristor designed for unidirectional switching applications. Rated at 600 V repetitive peak reverse voltage and 16 A average on-state current, this device supports demanding power control tasks.
Common applications include phase control of AC power, motor controls, heating systems, converters, rectifiers, and capacitive discharge ignitions. The SCR is triggered with a gate current as low as 6 mA at less than 1.5 V, enabling efficient and precise control.
Features such as a maximum junction temperature of 150°C and surge capability up to 200 A at 60 Hz half cycle ensure robustness for industrial, HVAC, and manufacturing environments.
Packaged in a TO-252AA through-hole format, the device simplifies integration into existing PCB designs and supports reliable mounting and thermal management. Its operating temperature range from -40°C to 150°C makes it suitable for harsh environments and a broad range of industrial and commercial uses.
This Thyristor provides a repetitive peak reverse voltage of 600 V. Rated average on-state current is 16 A with a maximum surge current of 200 A. Gate trigger current is specified at 6 mA for easy activation. Pin count of 3 facilitates standard SCR connectivity.
Complies with RoHS standards ensuring environmental safety.
Overall, the Littelfuse SV6016D1RP SCR is an ideal component for power switching applications requiring reliable phase control and load management. It finds use in sectors including industrial automation, electrical motor control, and power electronics.
Explore more semiconductors and power components in the Electronics & Electricals category at EnvMart for your technical and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this thyristor is 150°C.
The rated average on-state current of this model is 16 A.
This SCR has a repetitive peak reverse voltage of 600 V.
The surge current rating for this thyristor is 200 A at 60 Hz half cycle.
The gate trigger current for the SV6016D1RP is specified at 6 mA.
This thyristor uses a through-hole mounting type in a TO-252AA package.
The operating temperature range for this model extends from -40°C to 150°C.
The Littelfuse SV6016D1RP has a pin count of 3.
Common applications for this SCR include phase control of AC power, motor controls, and heating systems.
This thyristor complies with RoHS standards.
The maximum gate trigger voltage for this model is 1.5 V.
The SV6016D1RP is a silicon controlled rectifier (SCR) type thyristor.
