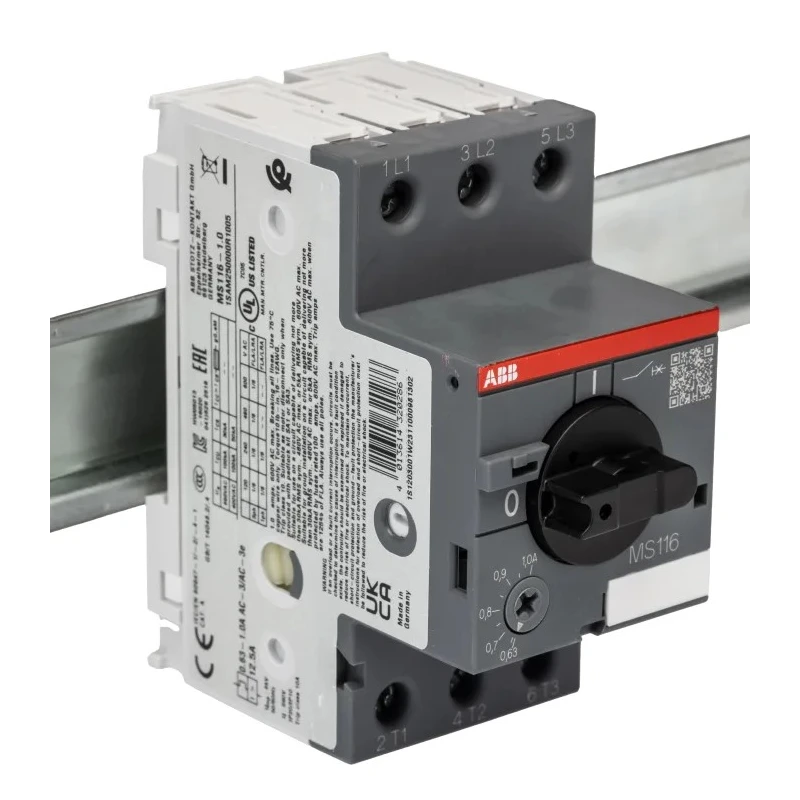

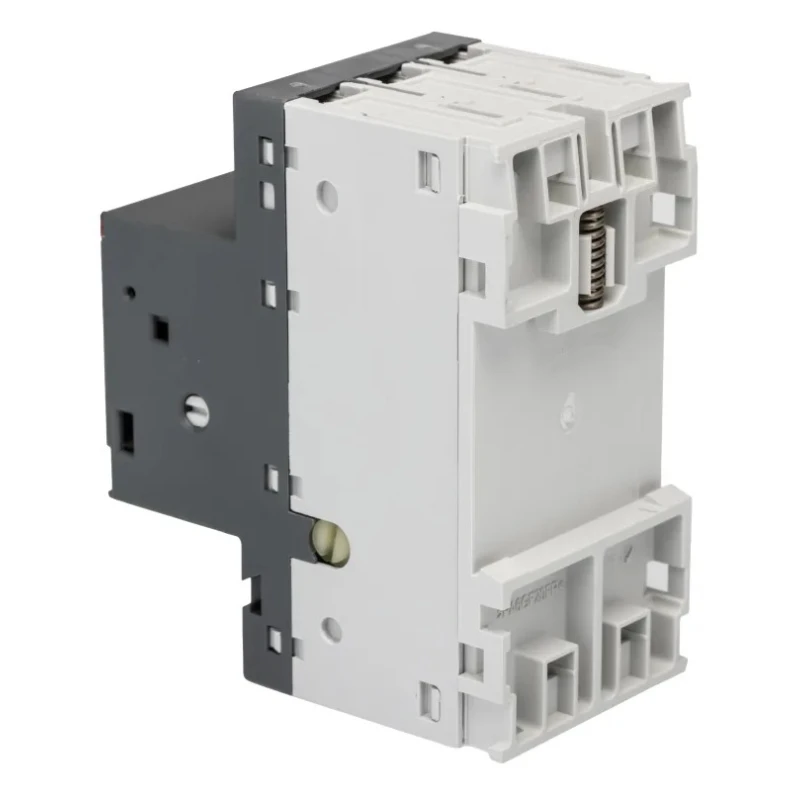

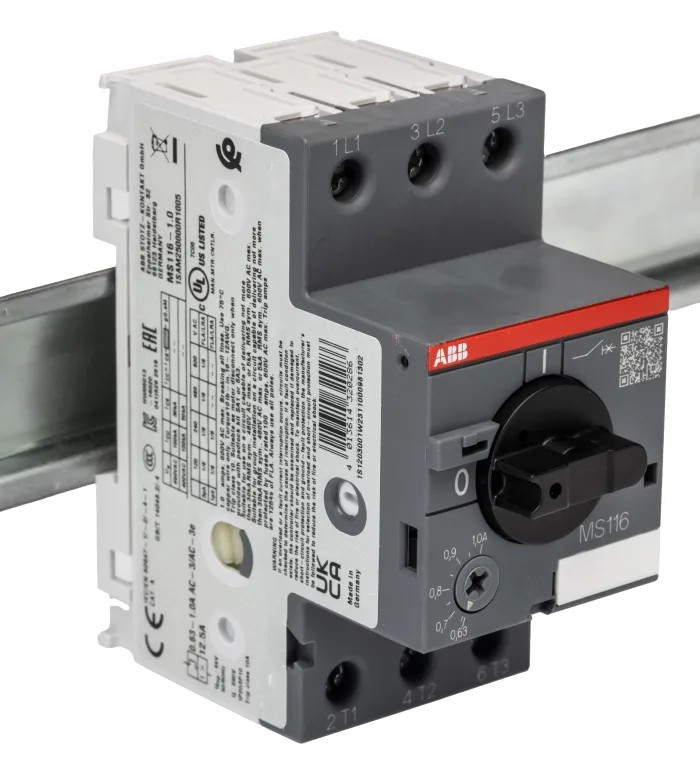

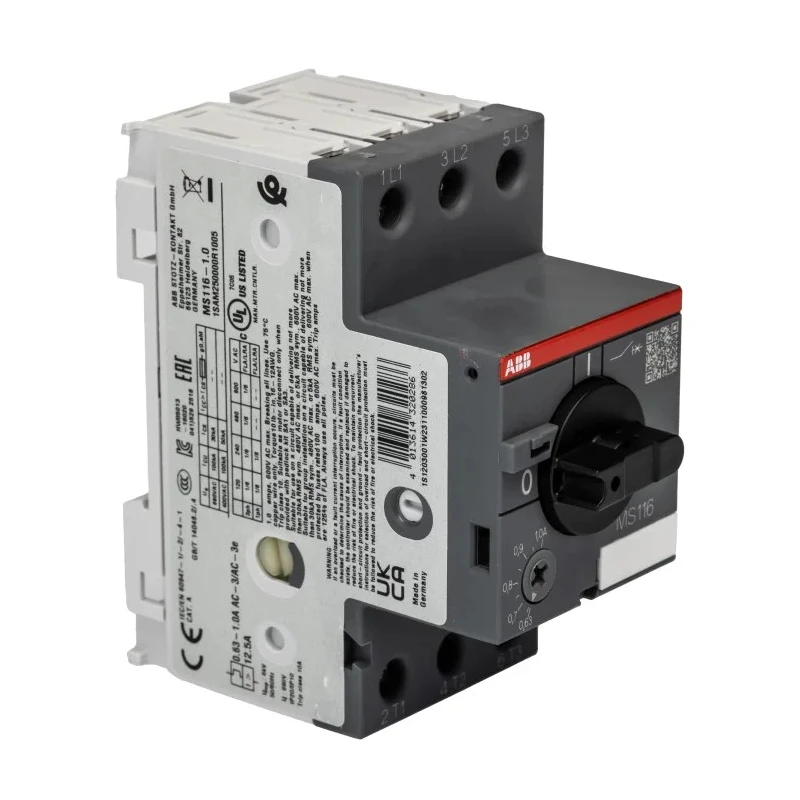

ABB Motor Protection Circuit Breaker 3 Poles 1A Current Rating 690V AC MS116 1SAM250000R1005 MS116-1.0

ABB MS116 Motor Protection Circuit Breaker model 1SAM250000R1005 MS116-1.0, rated for 1 Amp current and 690V AC supply voltage, is engineered for precise protection of electric motors in demanding industrial environments.

This motor protection circuit breaker features a 3-pole design suitable for 3-phase motor circuits, ensuring reliable disconnection under fault conditions. Its compact size (90mm length, 45mm width, 80.1mm depth) allows it to fit efficiently in control panels with limited space.

Designed to withstand harsh conditions, it operates effectively within a temperature range of -25°C to 70°C. The robust housing made from steel and polyamide delivers resistance to mechanical impacts, abrasion, and corrosion, enhancing longevity.

The device carries IP10 and IP20 protection ratings, making it touch-proof and resistant to the ingress of solid particles larger than 12mm. Compliance with international standards such as CCC, CE, CSA, cUL, IEC 60 947-1/2, EN60 series, and UL ensures safety and reliability in various industrial applications.

The motor protection circuit breaker is designed for an electrical lifespan of 100,000 operating cycles, attesting to its durability and suitability for long-term industrial use. Its manual rotary handle allows intuitive operation for switching circuits on and off. Screw terminals simplify installation, eliminating the need for specialized tools.

Typical applications include industrial automation, process control, and mechanical engineering industries where reliable motor protection is critical. Suitable for 3-phase motor circuits with 3 poles configuration. Compact dimensions: 90mm length, 45mm width, and 80.1mm depth for space-efficient installation.

Operates reliably within temperature range of -25°C to +70°C. Steel and polyamide body construction for high resistance to impacts, abrasion, and corrosion. IP10 and IP20 ratings provide protection against solid objects and touch safety.

Meets international standards including CCC, CE, CSA, cUL, IEC 60 947-1/2, EN60, and UL certifications. Provides an electrical lifespan of 100,000 operating cycles ensuring durability. Simple rotary handle enables easy manual circuit control.

Installation is facilitated by screw terminals requiring no special tools. Manufactured in Germany to high-quality standards. Explore the complete range of Motor Protection Circuit Breakers at EnvMart for high-quality, reliable electrical components.
