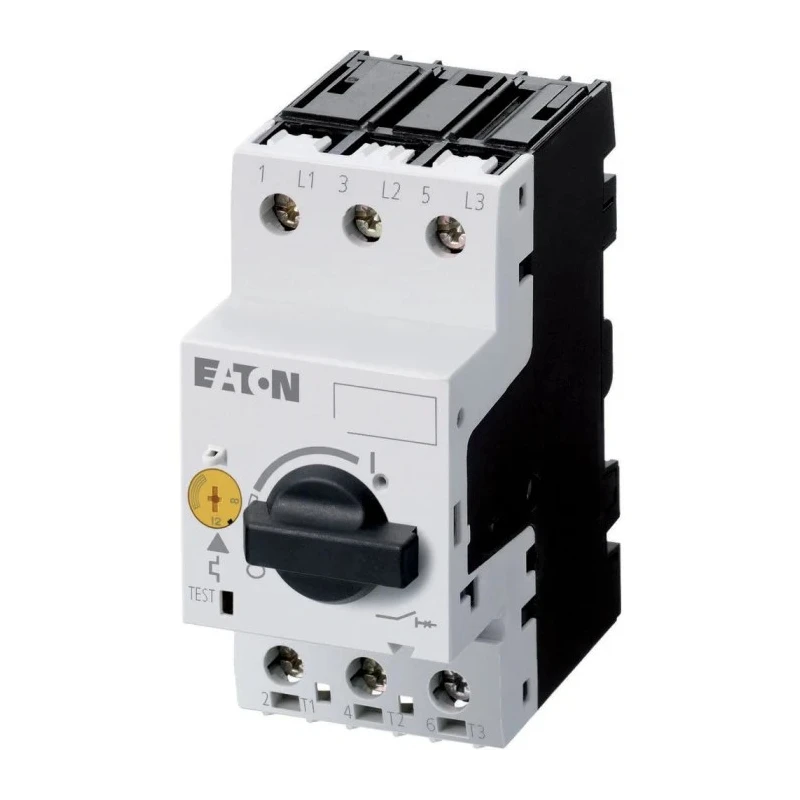

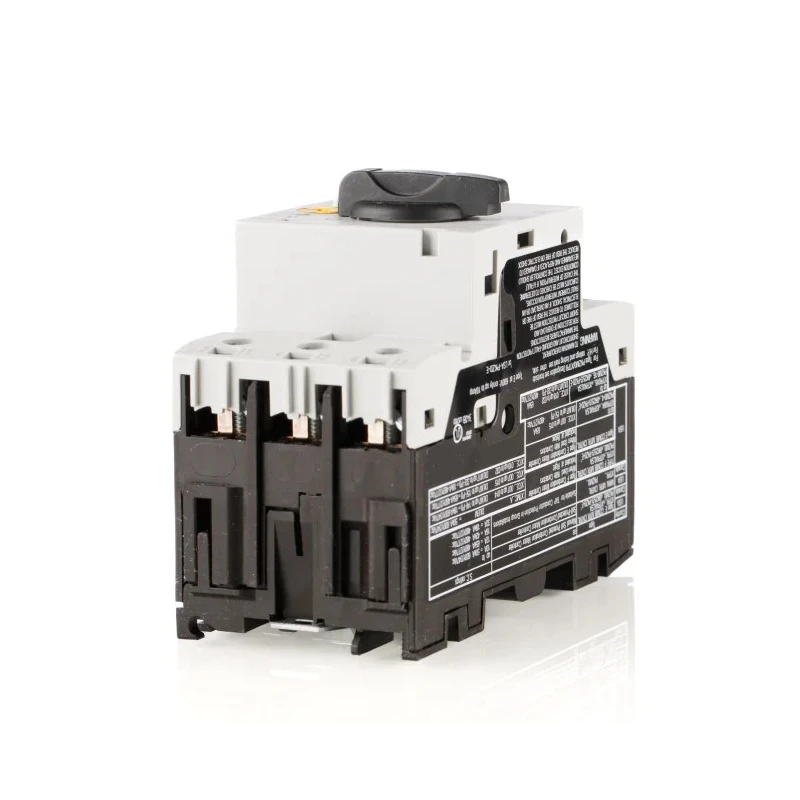

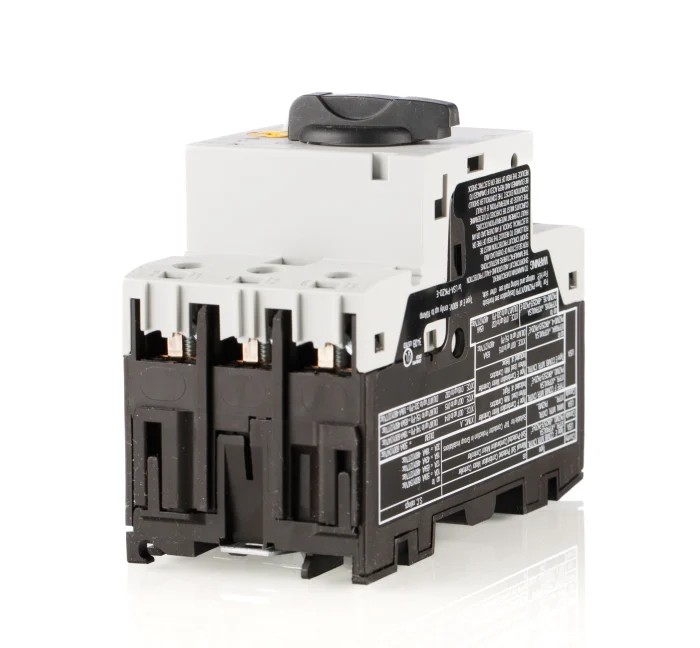

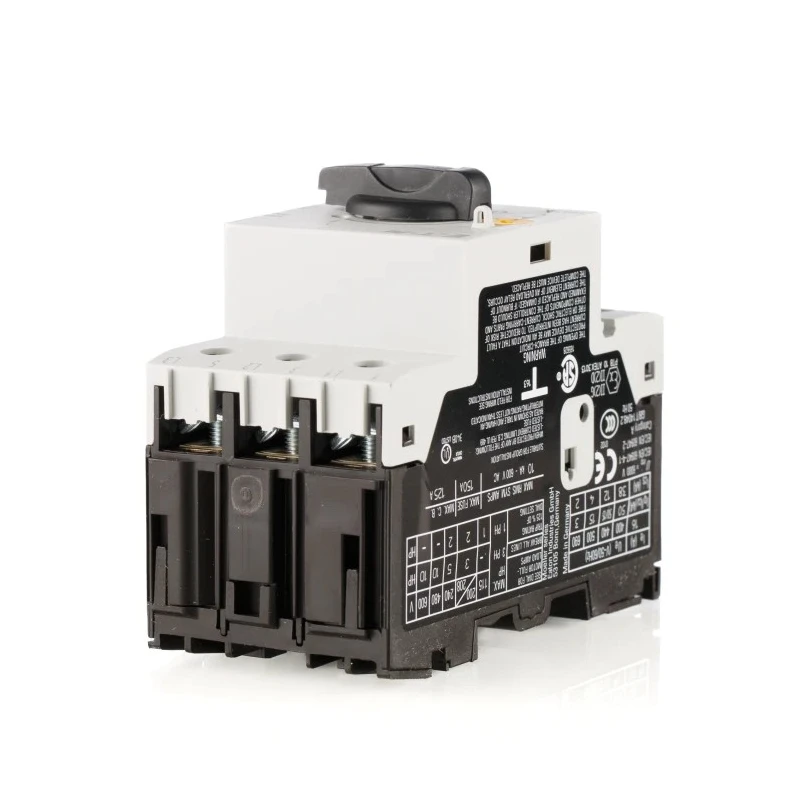

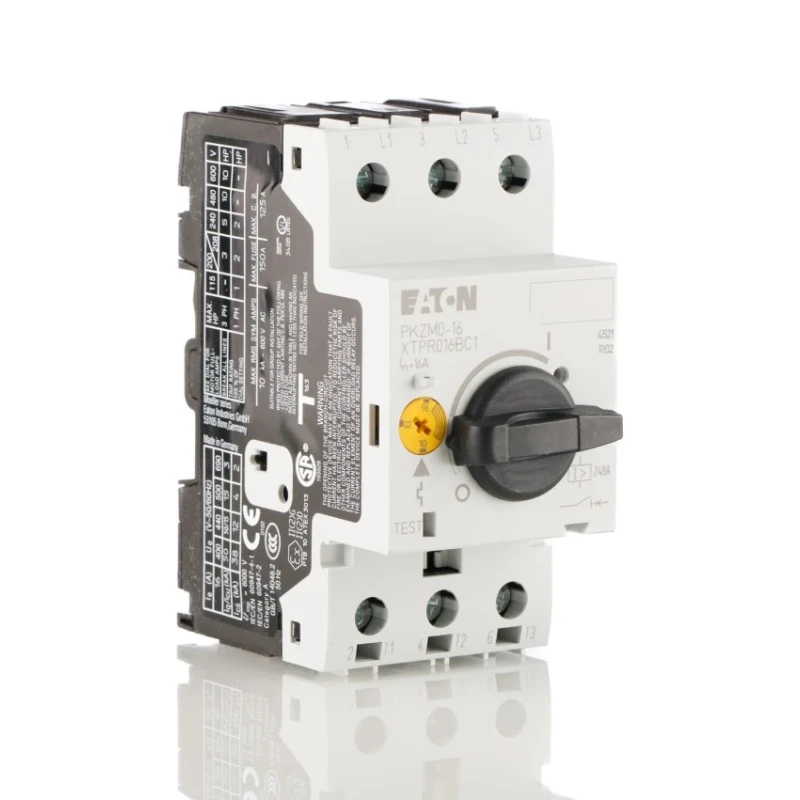

Eaton Motor Protection Circuit Breaker 10A, 16A, 690V AC, 3 Poles, IP20, PKZM0 Series 046938 PKZM0-16
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 046938 PKZM0-16 |
| IP Rating | IP20, IP00 |
| Overall Length | 93mm |
| Current Rating | 10, 16A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current Transformer |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Overall Depth | 76mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| RS PRO 10A, 16 A Motor Protection Circuit Breaker, 40 °C, -5 °CBrand | RS PRO |
| RS PRO 10A, 16 A Motor Protection Circuit Breaker, 40 °C, -5 °CRS Stock No. | 331-3668Brand: RS PRO |
| Eaton 16 A PKZM0 Motor Protection Circuit Breaker, 690 VBrand | Eaton |
Key Features
- Equipped with 3 poles providing comprehensive overload and short circuit protection.
- Mounts easily on DIN rail with screw terminals for secure electrical connections.
- Operates reliably within a temperature range of -25°C to 55°C for diverse conditions.
- Casing rated IP20 to prevent intrusion of fingers and objects larger than 12mm.
- Meets IEC/EN 60947-4-1, VDE 0660 Part 102 standards and RoHS compliance.
- Features current transformer sensing for accurate motor protection.
- Mechanical and electrical lifespan up to 100,000 operations ensures long service life.
- Robust construction resists shock and corrosion in harsh environments.
Product Description
Eaton 046938 PKZM0-16 Motor Protection Circuit Breaker is a 3-pole device engineered for effective protection of electric motors operating at 690V AC. Designed for industrial automation and control applications, it safeguards motors against overloads and short circuits, thereby minimizing equipment downtime.
This circuit breaker is equipped with screw terminals and DIN rail mounting for quick installation and maintenance. Its durable design includes an IP20 rated housing that protects against accidental contact with energized parts and objects larger than 12mm, making it safe for industrial use. The unit operates efficiently in ambient temperatures ranging from -25°C to +55°C, suitable for extreme environmental conditions.
The device complies with international standards IEC/EN 60947-4-1 and VDE 0660 Part 102, ensuring reliable performance and safety. Its sensing type utilizes a current transformer, providing precise motor protection. Its mechanical and electrical longevity reaches up to 100,000 operations, demonstrating its suitability for demanding operational cycles.
The breaker also features a rotating handle facilitating easy manual operation. It resists mechanical shocks and corrosion, suitable for harsh, humid, or explosive atmospheres such as gas processing plants and mining environments.
Current ratings of 10A and 16A to accommodate various motor loads. Three poles provide comprehensive protection for three-phase motors. Designed for use with supply voltage of 690V AC. IP20 protection against finger contact and larger objects.
Robust mechanical and electrical endurance. Operating temperature from -25°C to 55°C for extreme environments. DIN rail mounting and screw terminals for installation reliability. Meets IEC and VDE standards for safety and compliance.
Prevents costly downtime by cutting power during electrical faults. Ideal for industrial, manufacturing, HVAC, and mining sectors. Set contains 1 Pc Eaton PKZM0 Series Motor Protection Circuit Breaker model 046938 PKZM0-16.
Explore more Motor Protection Circuit Breakers and related electrical control gear components in the Electronics & Electricals category at EnvMart, delivering quality industrial protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton Motor Protection Circuit Breaker is available in current ratings of 10A and 16A.
This model operates at a maximum supply voltage of 690V AC.
It features three poles, providing comprehensive protection for three-phase motors.
The unit operates efficiently within a temperature range of -25°C to +55°C.
It utilizes a current transformer sensing type for accurate motor protection.
The overall dimensions are 93mm in length, 45mm in width, and 76mm in depth.
The casing is rated IP20, which protects against the intrusion of fingers and objects larger than 12mm.
It meets IEC/EN 60947-4-1 and VDE 0660 Part 102 standards, ensuring reliable performance and safety.
It mounts easily on DIN rail and features screw terminals for secure electrical connections.
The mechanical and electrical lifespan reaches up to 100,000 operations, indicating its suitability for demanding cycles.
It is suitable for harsh environments, including industrial, manufacturing, HVAC, and mining sectors.
The Eaton Motor Protection Circuit Breaker is manufactured in Germany.
