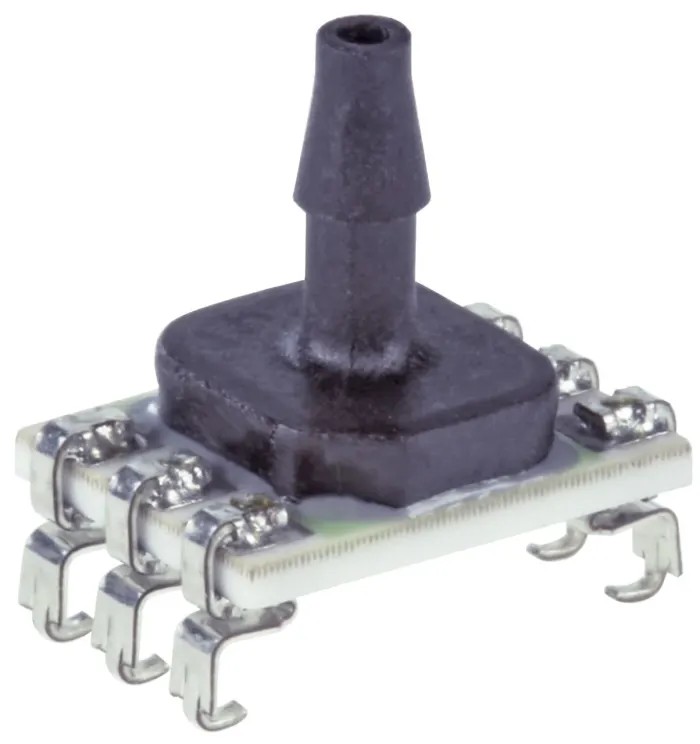

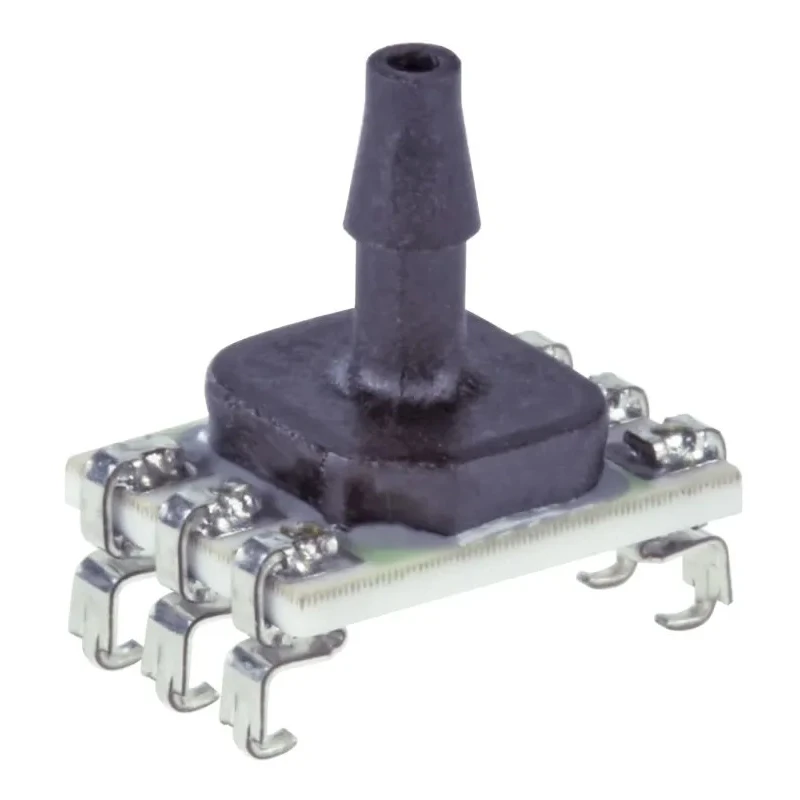

Honeywell Technologies Gauge Pressure Sensor Board 6 SMT PCB 15 psi ±0.25% Accuracy ABPMANV015PG2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANV015PG2A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 1724kPa |
Key Features
- High accuracy sensor ideal for precise pressure measurements.
- Compact board mount SMT package with 6 pins for PCB integration.
- Maximum operating pressure of 15 psi suitable for gauge pressure sensing.
- Supports single axial barbed port for dry gases and non-corrosive liquids with liquid option.
- Wide operating temperature range from -40°C to +85°C for robust industrial use.
- Fast output update rate up to 2 kHz enabling responsive pressure monitoring.
- Low power consumption with 5 V supply and sleep mode down to 2 μA for battery-powered applications.
- Temperature compensated and calibrated on-board ensuring accuracy across environmental variations.
Product Description
Honeywell ABPMANV015PG2A3 is a high-precision gauge pressure sensor designed as a board-mount SMT package with 6 pins, providing accurate pressure measurements up to 15 psi with ±0.25% accuracy. It features a piezoresistive sensor element optimized for dry gases and, with a silicone-based gel coating option, can sense non-corrosive liquids and endure condensation-prone environments.
The sensor offers a fast calibrated output update rate of up to 2 kHz, making it suitable for applications requiring responsive pressure monitoring. Operating from a 5 V supply voltage, it ensures low power consumption with sleep mode current as low as 2 μA, ideal for portable and battery-powered devices.
Designed for reliability, the device includes onboard ASIC calibration and temperature compensation to maintain output accuracy over a wide temperature range from -40°C to +85°C. It complies with industry standards such as RoHS, BPA Free, LFGB, NSF-169, and ISO 9001 automotive standards, ensuring safety and quality in diverse applications.
This sensor is perfectly suited for medical equipment like ventilators and oxygen concentrators, industrial HVAC control, pneumatic regulation systems, commercial appliances including coffee makers and washing machines, and air brake pressure monitoring. Its compact dimensions (10.63 mm height, 7.3 mm length, 6.3 mm width) allow easy integration into printed circuit boards.
The ABP series supports multiple package types and port configurations; this model uses single axial barbed port and SMT mounting for robust, consistent performance in various environments.
High accuracy sensor for precise pressure measurement. Compact SMT package with 6 pins for PCB assembly. Calibration and temperature compensation across extended range. Fast output update rate for responsive sensing. Low power consumption suited for portable devices.
RoHS and food safety compliant materials. Suitable for medical, industrial, and commercial applications. Operates reliably between -40°C and +85°C temperatures. Supports sensing of dry gases and non-corrosive liquids. Meets ISO 9001 automotive and other quality standards.
Explore a wide range of Pressure Sensors and related components in the Electronics & Electricals section at EnvMart, featuring trusted brands like Honeywell for industrial and laboratory precision needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 15 psi.
It has an accuracy of ±0.25%.
This sensor measures 10.63 mm in height, 7.3 mm in length, and 6.3 mm in width.
It uses a board mount (SMT) configuration with 6 pins for PCB integration.
The operating temperature range is from -40°C to +85°C.
It is designed for sensing dry gases and can also handle non-corrosive liquids with a silicone-based gel coating option.
The sensor operates with a maximum supply voltage of 5V.
It has a fast output update rate of up to 2 kHz, allowing for responsive pressure monitoring.
It complies with several standards including RoHS, BPA Free, LFGB, NSF-169, and ISO 9001 automotive standards.
The minimum operating pressure is 0 psi.
This model features a single axial barbed port.
It is suitable for applications such as medical equipment, industrial HVAC control, pneumatic regulation systems, and commercial appliances.
