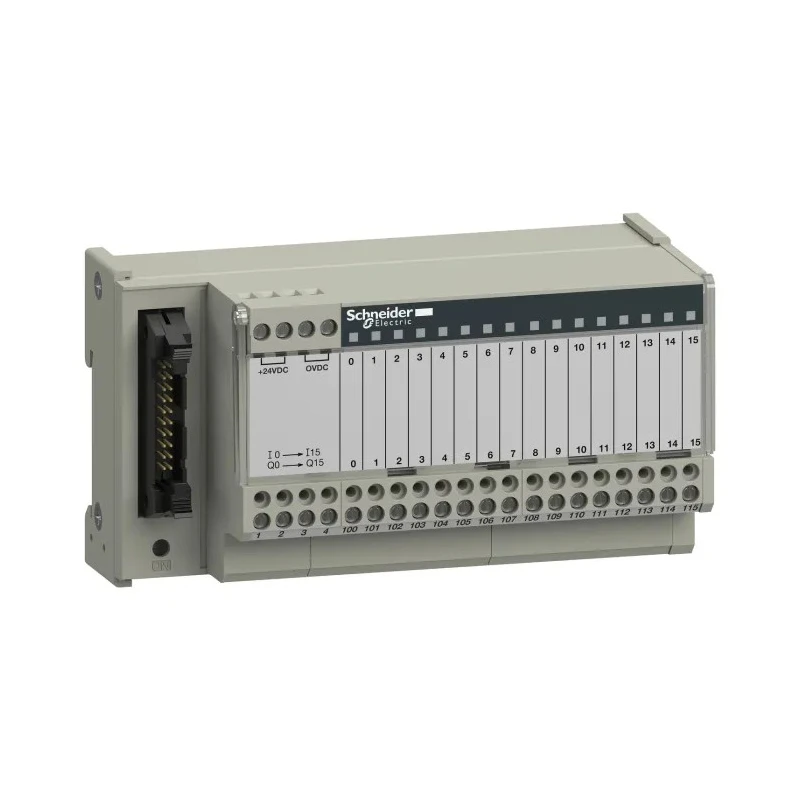

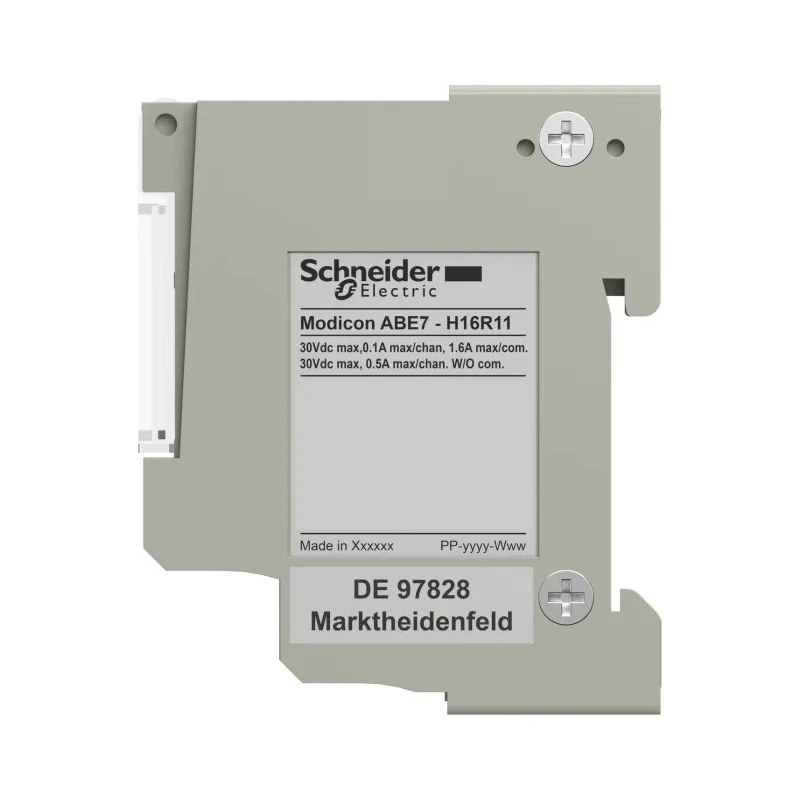

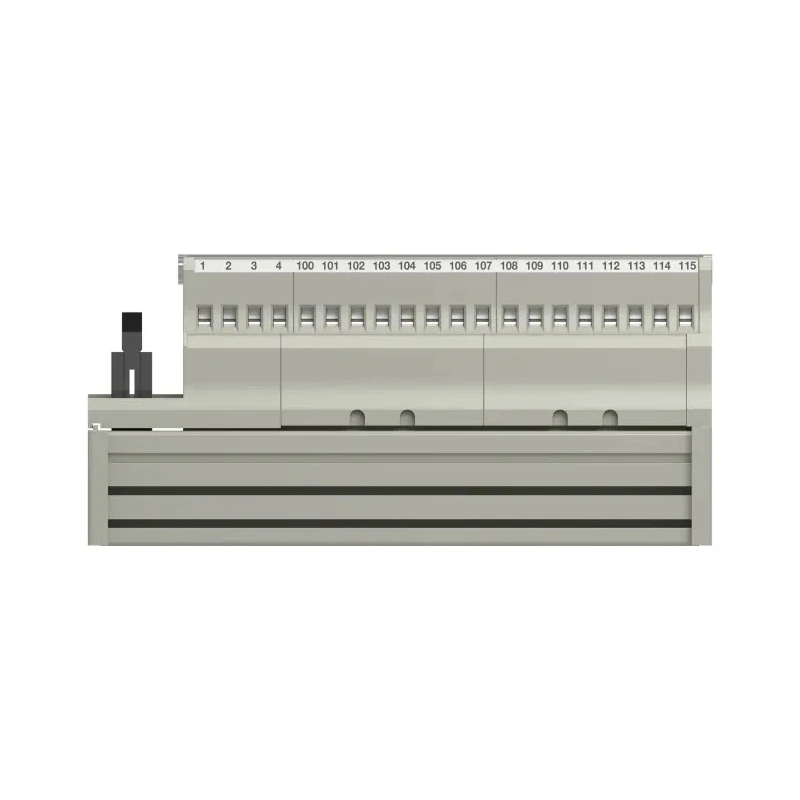

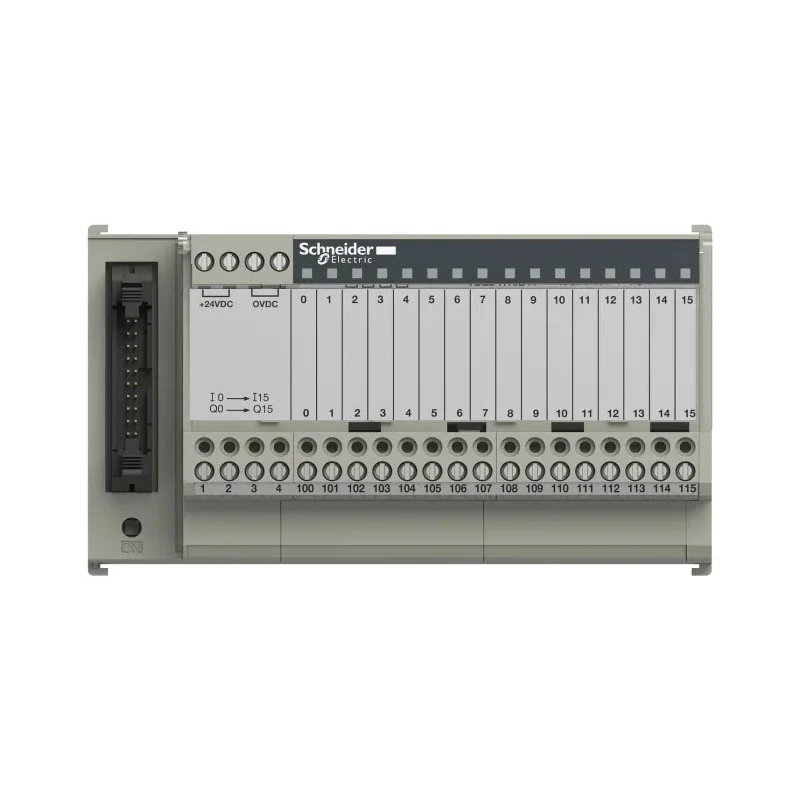

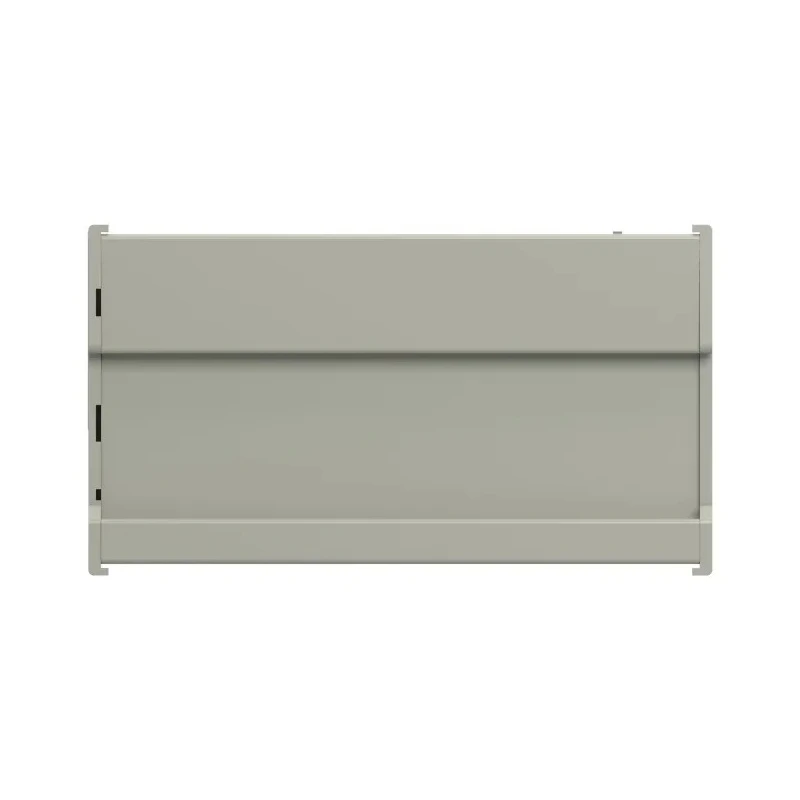

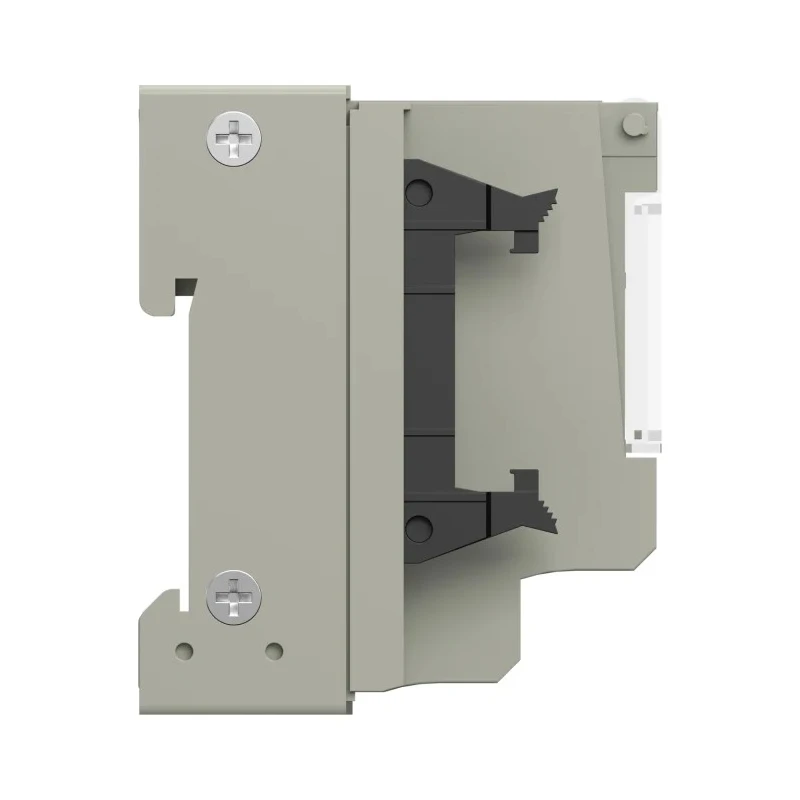

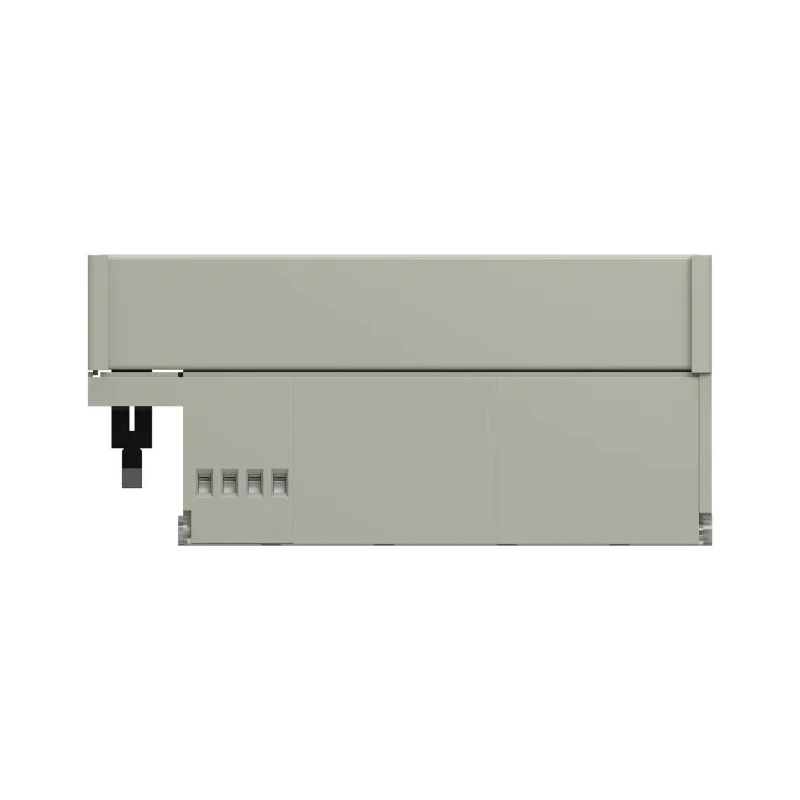

Schneider Electric Telefast Series Base for Use with Quantum Automation Platform ABE7H16R11

Schneider Electric ABE7H16R11 is a reliable base designed specifically for use with the Quantum Automation Platform within industrial control environments. It facilitates the connection of discrete input/output (I/O) modules, providing a seamless interface between field wiring and control electronics, which is critical for efficient automation operations.

The base features 16 individual channels, each delivering dedicated signal routing and equipped with LED indicators to enable quick and accurate diagnosis of channel status and power. It supports moderate current outputs of 0.5A per channel with a total maximum common output of 1.8A, ensuring robust electrical performance while preventing damage through a built-in 2A fast-blow internal fuse that isolates faulted circuits.

Mounting is versatile, allowing installation on standard 35mm DIN rail or directly on a solid plate with the included fixing kit, suitable for integration into industrial control cabinets. The device operates within a DC voltage supply range of 19 to 30 volts, conforming to IEC 61131-2 standards for automation equipment.

Field wiring is secured via screw-type terminals compatible with solid and flexible conductors from AWG 28 to AWG 12, enabling flexible installation options. The product meets IP20 ingress protection, safeguards against hazardous areas with EAC certification, and complies with major industrial approvals such as UL and CSA.

This base is ideal for modular I/O expansion in PLC systems, particularly for cabinet-mounted control panels requiring direct visual feedback via status LEDs. It supports easy migration or replacement in existing I/O arrays, enhancing control system scalability and maintainability.

Offers 16 channels with individual signal routing and visual LED indicators for rapid status diagnosis. Supports up to 0.5A per channel and a maximum common output of 1.8A for circuit protection. Features HE-10 20-pin connector for compact communication linking.

Includes a 2A fast-blow internal fuse for fault isolation and short-circuit protection. Mounts easily on 35mm DIN rail or solid plate with supplied fixing kit. Operates on a 19 to 30 V DC supply complying with IEC 61131-2 requirements.

Screw-type terminals accommodate solid and flexible conductors from AWG 28 to AWG 12. Meets IP20 rating and industrial standards including UL, CSA, and EAC hazardous area certification. Designed for modular I/O expansion in PLC systems with visual status LEDs for ease of maintenance.

This product suits industrial automation, manufacturing, electrical control cabinets, and modular PLC systems requiring reliable discrete I/O interfacing with visual status monitoring. It is engineered to withstand common industrial environmental challenges and provides safe, fault-protected operation.
