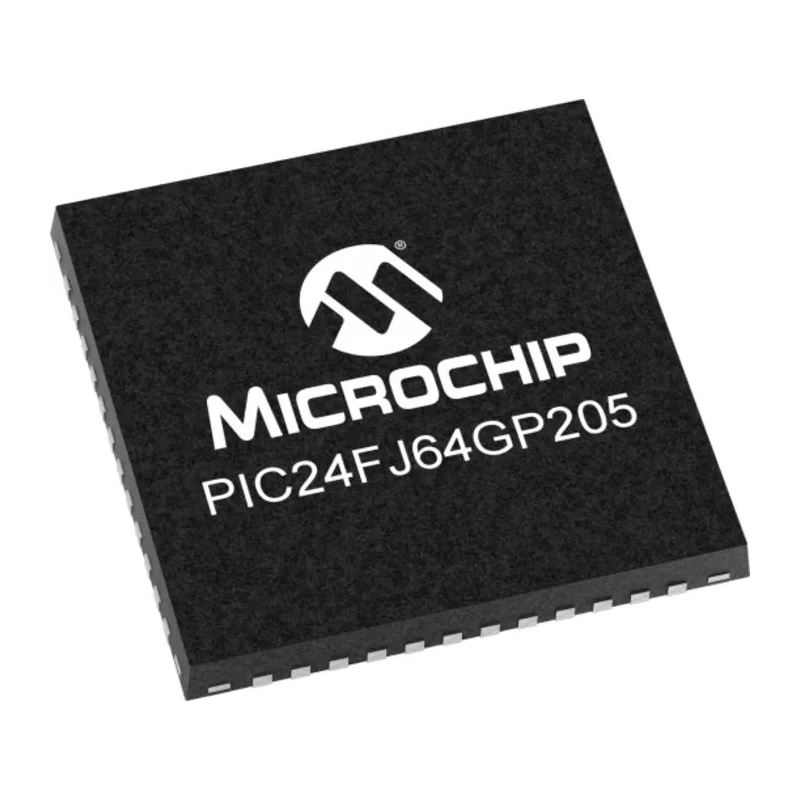

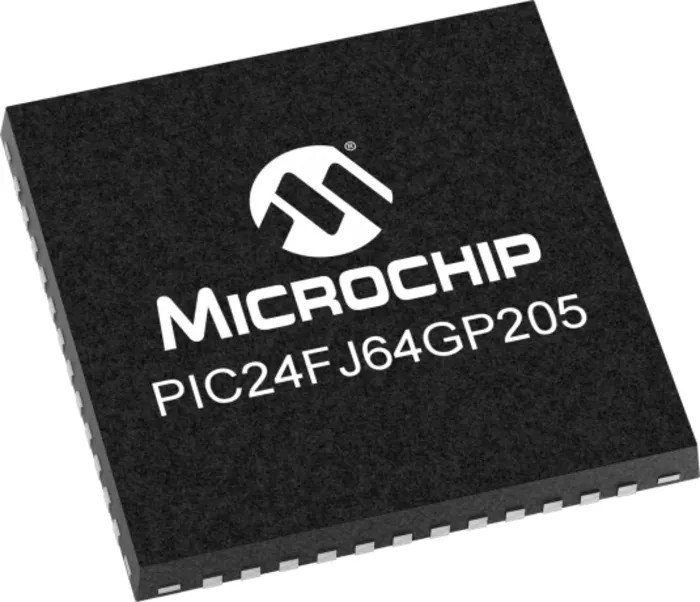

Microchip 16 bit PIC Microcontroller, PIC24FJ64GP205-I/M4, 32 MHz, 64kB FLASH, 8kB RAM, 48-Pin UQFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 6mm |
| Model | PIC24FJ64GP205-I/M4 |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 39 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Features 5-bit DACs for precision analog conversions.
- Operates between 2.5V to 5.5V supply voltage range.
- Includes 12-bit ADCs and 3 analog comparators for versatile signal processing.
- Designed for temperature operation from -40°C to 85°C ensuring robust performance in harsh conditions.
- Equipped with 4 timers and 39 programmable I/O pins for complex timing and control tasks.
- Harvard architecture ensures efficient instruction execution and performance.
- RoHS compliant, meeting environmental standards.
- Compact dimensions of 6mm x 6mm x 900μm enable integration in space-constrained designs.
Product Description
Microchip PIC24FJ64GP205-I/M4 is a high-performance 16-bit PIC microcontroller tailored for industrial, automotive, and portable applications requiring reliable digital control and low power consumption. It operates at a maximum clock frequency of 32 MHz, providing efficient processing power within a small form factor of 48-pin UQFN surface mount package. The device features 64kB of ECC FLASH program memory and 8kB of RAM to support complex firmware.
The chip includes rich analog peripherals, such as 12-bit ADCs and 5-bit DACs, alongside 3 analog comparators, allowing for sophisticated sensor interfacing and signal conditioning. Its operating voltage range between 2.5V and 5.5V combined with a wide operating temperature range from -40°C to 85°C ensures versatile deployment in diverse environmental conditions.
Additional capabilities include 39 programmable input/output pins and 4 independent timers, supporting precise timing, control, and interfacing functions essential in embedded system designs. The microcontroller architecture follows a Harvard model that separates program and data memory for high-speed operation.
Microchip's PIC24FJ series incorporates advanced protection with Code Guard™ Flash memory protection and low-power operating modes with nA-level sleep current while maintaining full RAM retention, making it ideal for battery-powered portable applications.
5-bit DACs enable high-fidelity analog output generation. Wide supply voltage from 2.5V to 5.5V for flexible power sources. Three analog comparators provide multiple threshold detection circuits. Extended temperature range from -40°C to 85°C ensures stable operation in harsh environments.
Four timers enhance multi-tasking and time-critical control. RoHS compliant ensuring environmental safety and regulatory compliance. Compact 6mm x 6mm footprint supports miniaturized electronic devices. 48-pin UQFN package provides reliable surface mounting and heat dissipation.
This microcontroller is suited for embedded industrial control, automotive instrumentation, portable medical devices, and consumer electronics requiring robust computation and analog interfacing capabilities. Available with Microchip's extensive ecosystem of development tools and support, it accelerates time to market.
Explore more Microcontrollers and related electronic components in the Microchip range on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a supply voltage range of 2.5V to 5.5V.
This model features 64kB of FLASH program memory.
The microcontroller includes 8kB of RAM.
It has compact dimensions of 6mm x 6mm x 900μm.
The PIC24FJ64GP205-I/M4 is equipped with 39 programmable I/O pins.
This microcontroller comes in a 48-pin UQFN package type.
It can operate within a temperature range of -40°C to 85°C.
It includes 12-bit ADCs, 5-bit DACs, and 3 analog comparators for signal processing.
This model features 4 independent timers.
Yes, it is RoHS compliant, meeting environmental standards.
It follows a Harvard architecture, which separates program and data memory for efficient operation.
