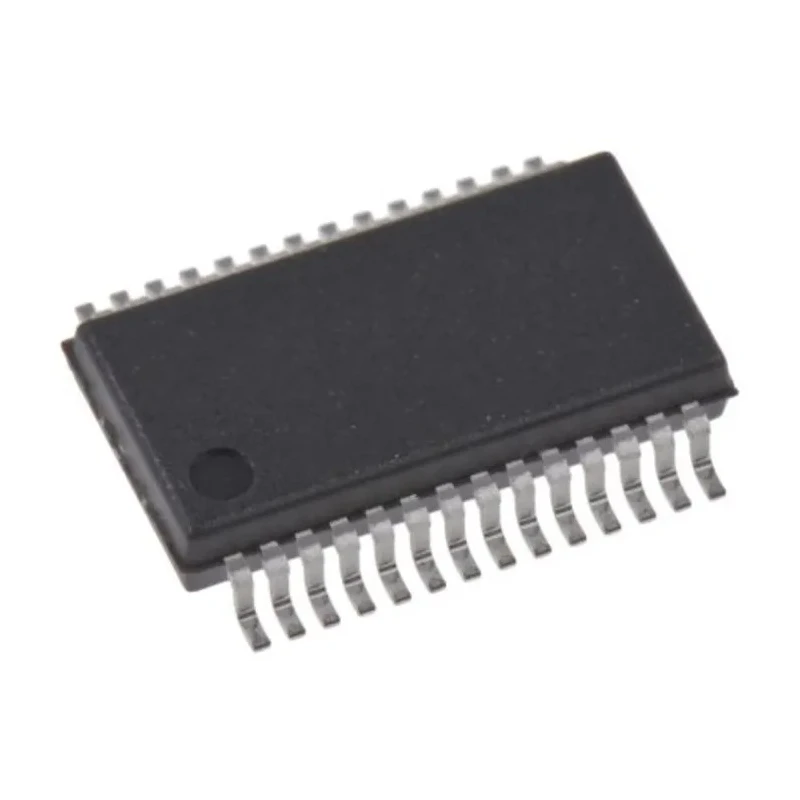

Microchip 16-bit PIC Microcontroller PIC24FJ64GP202-I/SS, 32 MHz, 64kB FLASH, 28-Pin SSOP PIC24FJ64GP202-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.05mm |
| Length | 17.9mm |
| Model | PIC24FJ64GP202-I/SS |
| Width | 5.3mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 28 |
| Automotive Standard | AEC-Q |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 21 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Operates within a supply voltage range of 2.5V to 5.5V.
- Features 64 kB of FLASH program memory and 64 kB RAM size.
- Includes 21 programmable I/Os and 4 timers for versatile control.
- Contained in a 28-pin SSOP surface mount package with dimensions 17.9mm x 5.3mm x 2.05mm.
- Designed for operation between -40°C and 85°C, RoHS compliant for environmental safety.
- Supports advanced peripherals such as 5-bit DACs, 3 analogue comparators, and 12-bit ADCs.
- Utilizes a Harvard instruction set architecture optimized for embedded applications.
- Meets automotive standard AEC-Q for reliability in automotive environments.
Product Description
Microchip PIC24FJ64GP202-I/SS is a high-performance 16-bit PIC microcontroller designed for embedded electronics applications. With a maximum clock speed of 32 MHz and 64 kB of FLASH program memory, this microcontroller delivers efficient and reliable processing power suitable for a wide range of industrial, automotive, and consumer electronics systems.
The device operates over a wide voltage range from 2.5 V to 5.5 V and is capable of functioning in extreme temperature conditions from -40°C to 85°C, ensuring stable performance in harsh environments.
Available in a compact 28-pin SSOP (Shrink Small Outline Package) surface mount format, it measures just 17.9 mm in length, 5.3 mm in width, and 2.05 mm in height, making it ideal for space-constrained PCB layouts.
Key features include 21 programmable input/output pins, 4 hardware timers, 5-bit digital-to-analog converters, 3 analogue comparators, and 12-bit analog-to-digital converters, enabling versatile interfacing and control capabilities for embedded systems.
The microcontroller uses the Harvard instruction set architecture and includes Code Guard™ Flash protection with Error Correction Code (ECC) to ensure memory integrity and protection, vital for mission-critical embedded applications. Compliance with the automotive AEC-Q standard ensures it meets rigorous quality and reliability standards required in automotive electronics.
Operates from 2.5 V to 5.5 V supply voltage for flexible power configurations. 64 kB FLASH and 64 kB RAM allow extensive program and data storage. 21 programmable I/Os for a broad range of peripheral connections. 4 timers provide precise timing and event control.
5-bit DACs and 12-bit ADCs enable analog signal processing. Robust operating temperature range suited for automotive and industrial use. Compact 28-pin SSOP package facilitates integration in tight PCB spaces. RoHS compliant to adhere to environmental safety guidelines.
This microcontroller family is optimized for low power operation with sleep currents in the nanoampere range and full RAM retention, making it suitable for battery-powered and portable device applications. Its extensive peripheral set and robust memory protections make it a trusted choice for embedded development across industrial controls, automotive systems, consumer electronics, and other demanding sectors.
Explore EnvMart for more Microchip Microcontrollers and embedded solutions tailored to meet your design specifications, ensuring quality, reliability, and innovation in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a supply voltage range of 2.5V to 5.5V.
This model is designed to operate between -40°C and 85°C.
It features 64 kB of FLASH program memory.
It is contained in a 28-pin SSOP (Shrink Small Outline Package) format.
This microcontroller includes 21 programmable input/output pins.
It supports 5-bit digital-to-analog converters (DACs) and 12-bit analog-to-digital converters (ADCs).
It meets the automotive standard AEC-Q for reliability in automotive environments.
The height of this microcontroller is 2.05 mm.
RoHS compliance indicates that the microcontroller adheres to environmental safety guidelines, restricting hazardous substances.
This microcontroller includes 4 hardware timers for precise timing and event control.
It utilizes a Harvard instruction set architecture optimized for embedded applications.
