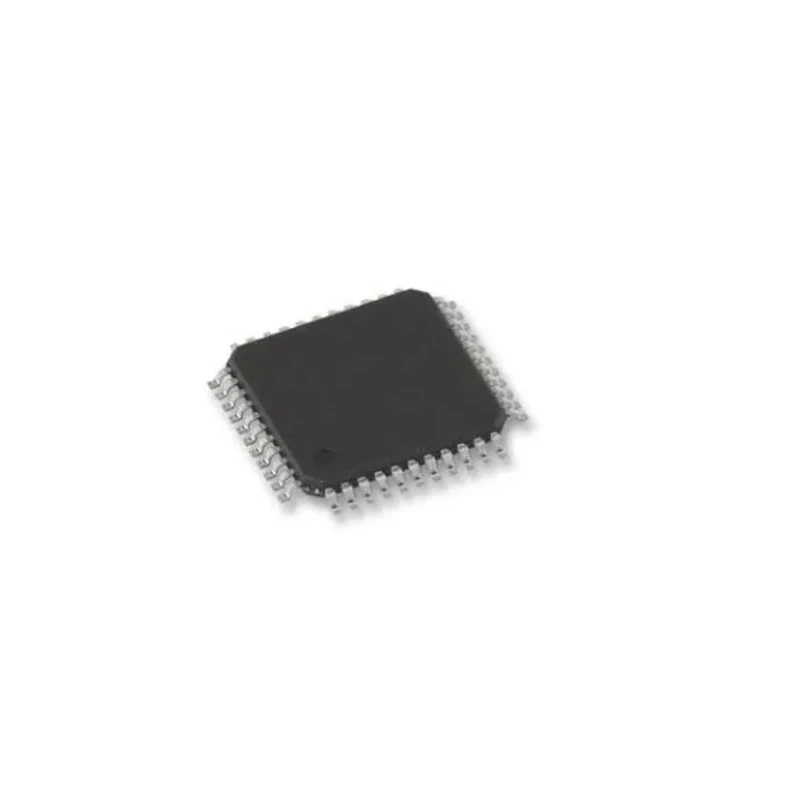

Microchip 8 bit PIC Microcontroller, 64 MHz, 128kB FLASH, 44-Pin TQFP PIC18F47Q43-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 10mm |
| Model | PIC18F47Q43-I/PT |
| Width | 1mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 36 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
Key Features
- Optimized RISC architecture with 64 MHz clock input for high performance.
- 128kB FLASH program memory and 8kB RAM for ample data storage.
- Surface mount 44-pin TQFP package supports compact PCB design.
- Includes 12-bit ADCs with capacitive voltage divider for advanced touch sensing.
- Supports multiple communication protocols like UART, SPI, and I2C.
- Operates over wide temperature range from -40°C to 85°C.
- Maximum supply voltage of 5.5V with minimum voltage of 1.8V for flexible power options.
- Built-in hardware features such as DMA controllers, watchdog timer, and vectored interrupt controller.
Product Description
Microchip PIC18F47Q43-I/PT is an 8 bit PIC microcontroller that delivers enhanced performance with a 64 MHz clock frequency and 128kB FLASH memory capacity, housed in a 44-Pin TQFP surface mount package. It is designed for embedded system and industrial automation applications requiring reliable performance and versatile interfacing options.
This microcontroller incorporates a 12-bit ADC with Computation (ADCC) enabling capacitive touch sensing with filtering, averaging, and threshold comparison for advanced user interface capabilities. The 16-bit PWM module offers dual independent outputs on the same time base, enhancing motor and power control applications.
Advanced features include six configurable Direct Memory Access (DMA) controllers for efficient data movement, a vectored interrupt controller with fixed low latency for responsive event handling, and a memory access partition for secure bootloading and data protection.
The device supports asynchronous UART with DMX, DALI, and LIN communication protocols, SPI, and I2C interfaces, broadening connectivity options in complex embedded systems. Its operating voltage ranges from 1.8V to 5.5V, with a robust temperature range of -40°C to 85°C, suitable for automotive and industrial conditions.
Safety and reliability are enhanced by watchdog timers, power-on reset circuits, brown-out reset options, and a windowed watchdog timer, ensuring stable operation in critical environments.
Optimized RISC architecture with 64 MHz clock input for high performance. 128kB FLASH program memory and 8kB RAM for ample data storage. Surface mount 44-pin TQFP package supports compact PCB design. Includes 12-bit ADCs with capacitive voltage divider for advanced touch sensing.
Supports multiple communication protocols like UART, SPI, and I2C. Operates over wide temperature range from -40°C to 85°C. Maximum supply voltage of 5.5V with minimum voltage of 1.8V for flexible power options. Built-in hardware features such as DMA controllers, watchdog timer, and vectored interrupt controller.
This microcontroller suits applications in industrial automation, automotive electronics, consumer devices, and embedded control systems. The comprehensive peripheral set supports efficient and reliable system designs that require configurable hardware features and multiple communication interfaces.
Discover more advanced Microcontrollers and related components in the Microchip category at EnvMart to support your development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC18F47Q43-I/PT microcontroller is 64 MHz.
It has a program memory size of 128 kB, allowing for ample storage of code.
This model operates over a wide temperature range from -40°C to 85°C, making it suitable for various environments.
The microcontroller features a total of 44 pins, which supports various interfacing options.
It supports multiple communication protocols including UART, SPI, and I2C, enhancing its connectivity options.
The RAM size of the PIC18F47Q43-I/PT is 8 kB, providing sufficient space for data storage during operation.
This model is housed in a 44-pin TQFP (Thin Quad Flat Package), which supports compact PCB design.
It operates with a minimum supply voltage of 1.8V and a maximum supply voltage of 5.5V, allowing for flexible power options.
It includes features such as DMA controllers, a watchdog timer, and a vectored interrupt controller for enhanced performance and reliability.
This microcontroller includes 35 x 12-bit ADCs, enabling advanced touch sensing capabilities.
The PIC18F47Q43-I/PT complies with REACH and RoHS3 standards, ensuring it meets environmental regulations.
It is suitable for applications in industrial automation, automotive electronics, consumer devices, and embedded control systems.
