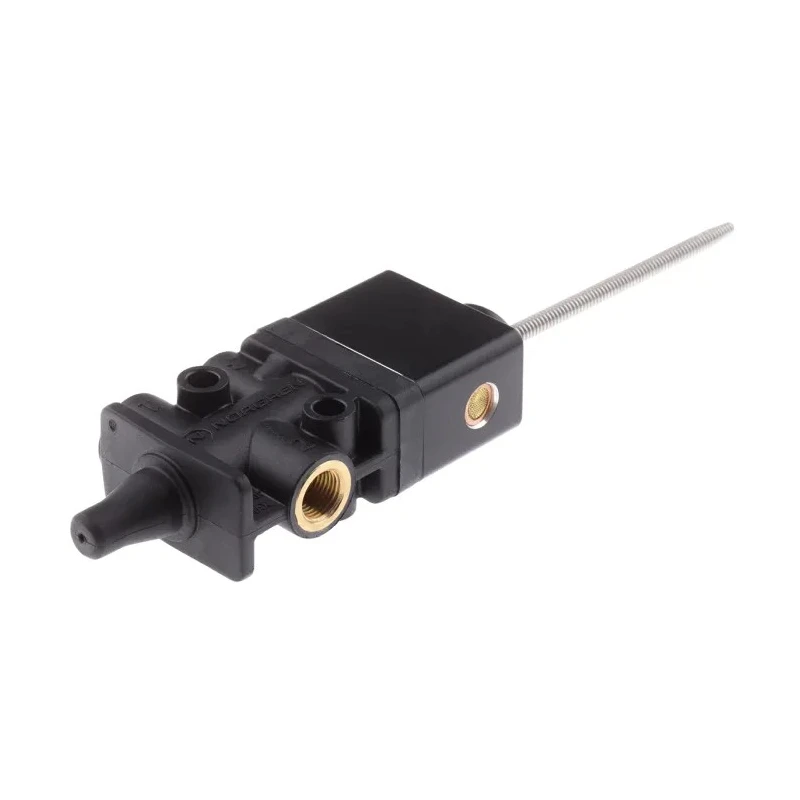

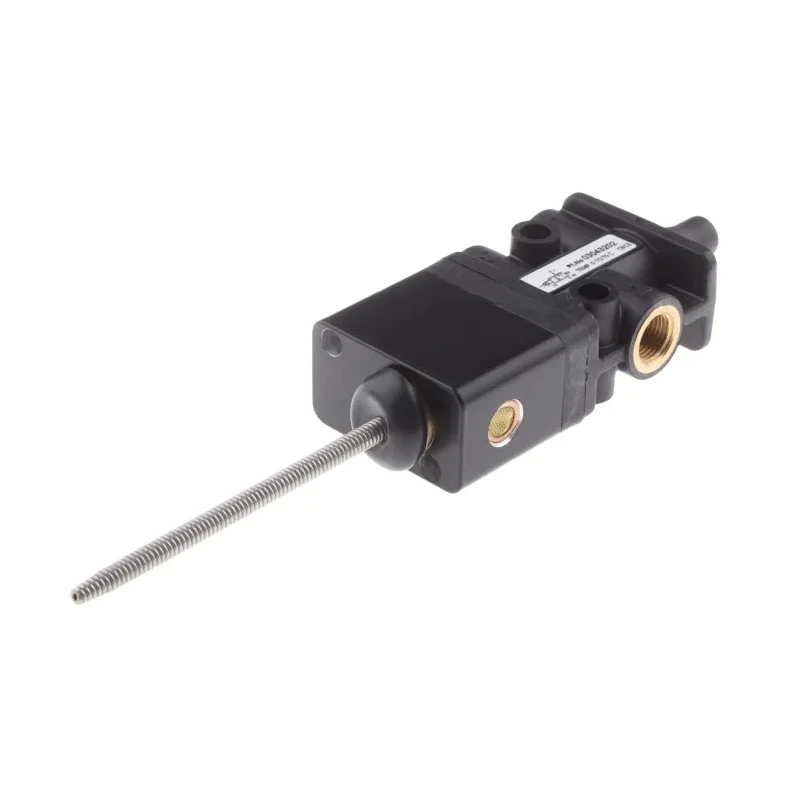

Norgren Antenna Pneumatic Manual Control Valve 03 Series, G 1/8 Port, 3/2 Valve Function, 10 Bar Max Pressure 03043202

Norgren 03043202 Pneumatic Manual Control Valve 03 Series is engineered for precise air flow control in pneumatic industrial and manufacturing applications. Its antenna control mechanism facilitates manual operation, enhancing control accuracy in system processes.

The valve body is constructed from polyamide, offering excellent resistance to impact and corrosion, making it suitable for demanding industrial environments. The product is equipped with durable NBR seals designed for resistance against oils and solvents, ensuring minimal leakage and increased longevity.

This pneumatic valve supports a maximum operating pressure of 10 bar and allows a maximum flow rate of 335 L/min, making it adaptable to high-flow pneumatic systems. Operational temperature tolerance spans from 0°C to +70°C, providing reliable performance in various industrial temperature conditions.

Its 3/2 valve function with 2 positions and 3 ports offers effective directional control. The compact dimensions of 161mm length, 45mm width, and 21mm height support integration into constrained panel spaces. The valve features a panel mounting design with through-holes in the body, enabling straightforward installation within control cabinets.

This model comes with black, green, and red control buttons, facilitating visual identification during operation and maintenance.

Applications include manufacturing lines, assembly plants, chemical industries, water treatment facilities, and hydraulic device control. Designed for use with compressed air, including filtered, lubricated, and non-lubricated air types.

Suitable for pneumatic equipment with a maximum operating pressure of 10 bar. Features a durable polyamide body resistant to impact and corrosion. Maximum flow rate of 335 L/min supports high-flow applications. Operating temperature range from 0°C to +70°C accommodates harsh environments.

Panel mounting design allows direct installation in control cabinets. NBR seals provide oil and solvent resistance for leak prevention. 3/2 valve function with 2 positions and 3 ports for versatile control. Comes with black, green, and red control button colors for easy identification.

Compact size with dimensions 161mm x 45mm x 21mm. Manufactured in Czech Republic ensuring quality and reliability. Explore a broad range of pneumatic valves and control components at EnvMart to support diverse industrial automation needs.
