Norgren Pneumatic Manual Locking Shut-Off Valve G 3/8 Port, Die Cast Aluminium, 3/2 Function T82T-3GA-B1N

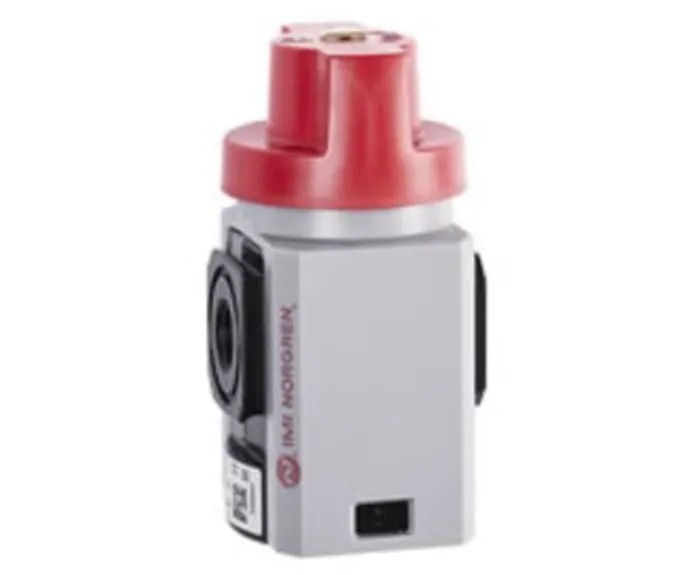

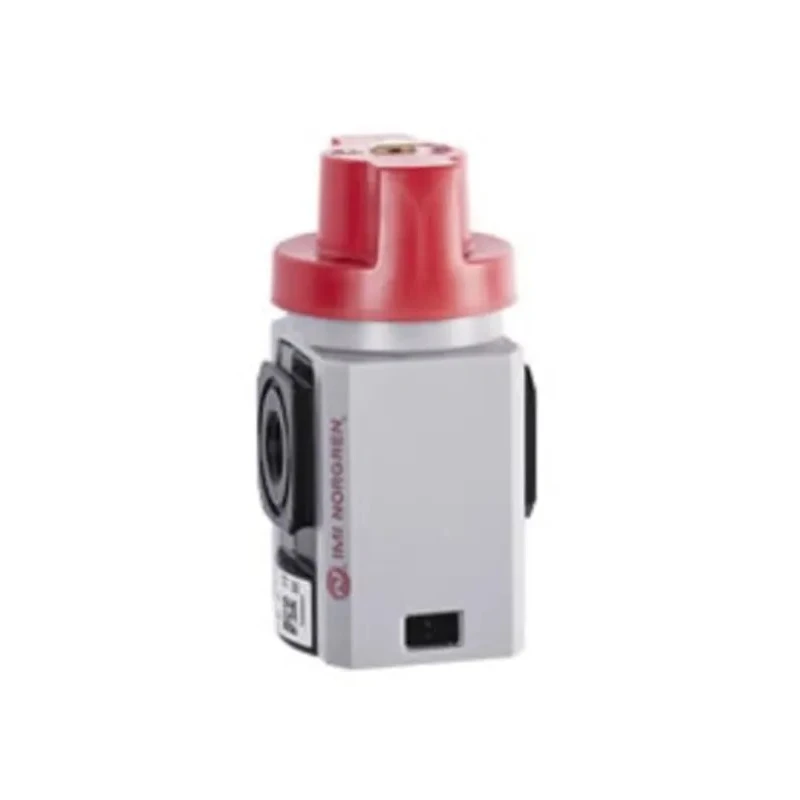

Norgren T82T-3GA-B1N pneumatic manual locking shut-off valve is a 3/2-way valve designed for precise manual control of compressed air systems. Featuring a robust die cast aluminium body and brass valve, this valve ensures mechanical strength and corrosion resistance suitable for industrial and commercial applications.

The valve supports a maximum operating pressure of 17 bar and a flow rate of 45 dm³/s, making it ideal for high-demand pneumatic operations. Its operating temperature range from -20°C to +65°C enables reliable use in tough environmental conditions.

The compact design, with dimensions of 90mm length, 70mm width, and 48mm height, facilitates modular or inline installation. It features a G 3/8 female port with push-in type connection threads conforming to G standard, compatible with standard pipe fittings.

Its red control button incorporates a locking mechanism, padlock compatible for enhanced operational safety when maintenance or shutdown is necessary. The valve has three positions and two functional ports, allowing for easy switching between operational states.

ATEX 2014/34/EU II 2 GD Ex h IIC T6 Gb and EX h IIIC T85°C Db certifications ensure suitability for hazardous and explosive atmospheres, meeting stringent safety standards. The valve's die cast aluminium body offers high durability and corrosion resistance.

Operation range includes minimal ambient temperature of -20°C and maximum of +65°C. Maximum flow rate of 45 dm³/s for efficient air handling. Locking shut-off mechanism increases safety and security with padlock compatibility.

Compact form factor allows for versatile installation in factory automation and pharmaceutical systems. Complies with international safety standards for explosive atmospheres (ATEX certified). Red control button for clear visibility and ease of use.

Female G 3/8 port with push-in connector for ease of integration. Lightweight design minimizes strain on mounted surfaces.

Suitable for industrial automation, medical and pharmaceutical production, warehouses, and distribution centers, this Norgren valve provides reliable pneumatic system control. Its robust construction and compliance with safety standards make it a durable choice for demanding environments.
