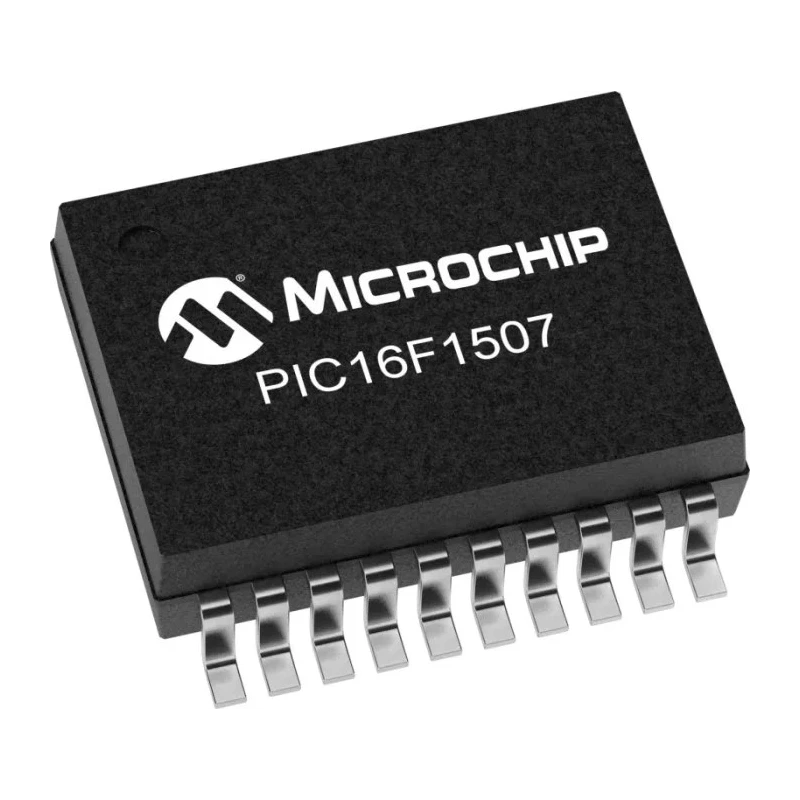

Microchip 8 bit PIC PIC16 Microcontroller 20 MHz 3.5kB FLASH 20-Pin SSOP PIC16F1507T-I/SS

Microchip PIC16F1507T-I/SS is an 8-bit PIC microcontroller that integrates a high-performance RISC CPU and enhanced mid-range architecture delivering efficient processing at a maximum clock frequency of 20 MHz. It comes with 3.5kB of FLASH program memory featuring self read/write capability, enabling flexible program storage and updates. The device includes 128 bits of RAM for data operations, 12 channels of 10-bit ADC with voltage reference for accurate analog measurements, and 18 programmable input/output pins providing versatility in control and interface.

This microcontroller is housed in a compact 20-pin SSOP surface-mount package with physical dimensions of 7.5mm length, 8.2mm width, and 2mm height, making it suitable for space-constrained designs. Its operating voltage ranges between 1.8V and 5.5V, supporting low power to standard voltage applications. Enhanced features include three timers and an interface type of in-circuit serial programming (ICSP), facilitating easy debugging and programming in embedded designs.

Designed to withstand minimum operating temperatures of -40°C and maximum of 85°C, it is ideal for industrial control, automotive, and consumer electronics. The architecture uses a RISC instruction set with 49 instructions, offering optimized performance for embedded control applications.

Maximum clock frequency: 20 MHz for efficient processing. 3.5kB FLASH program memory with self read/write capability. 128-bit RAM storage for data operations. 12-channel 10-bit ADC for precise analog input conversion. Comprehensive I/O with 18 programmable pins.

Three timers allow flexible timing control. Compact 20-pin SSOP surface mount package. Wide operating voltage: 1.8V to 5.5V. Operating temperature range of -40°C to +85°C. Supports ICSP interface for programming and debugging.

This microcontroller is suitable for embedded system development, industrial automation, control units, and consumer electronics requiring efficient, reliable 8-bit processing. Its compact design and robust specifications make it compatible with a variety of applications in electronics and electrical engineering sectors. Browse EnvMart for more Microchip Microcontrollers and embedded components.
