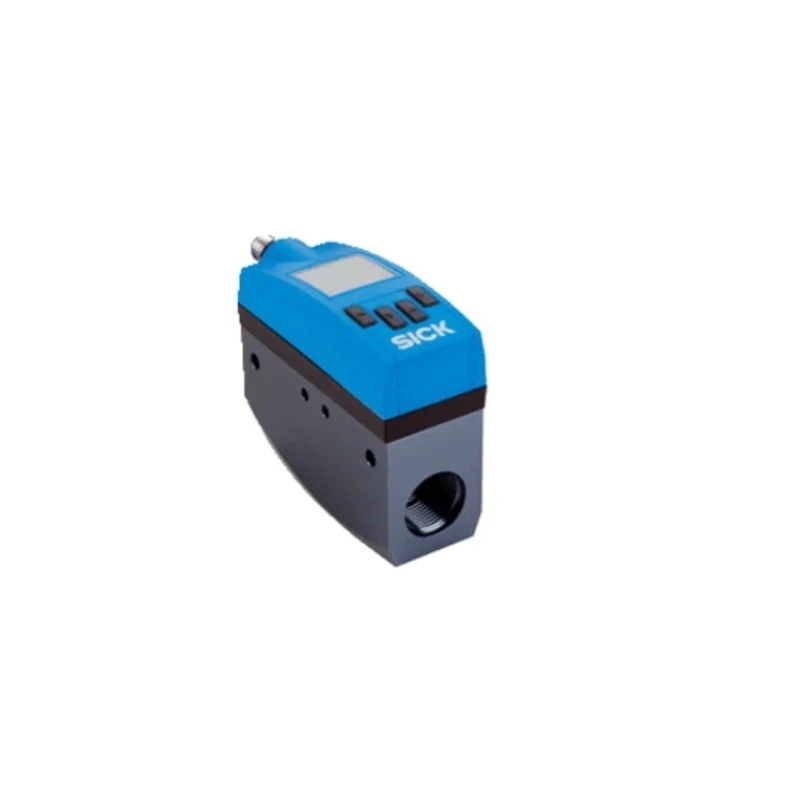

SICK FTMG Series Gas Flow Meter for Compressed Air, Stainless Steel Housing, 5.3L/min Min, 1590L/min Max FTMG-ESD15AXO

The SICK FTMG-ESD15AXO is an advanced gas flow meter designed for precise measurement of compressed air and other non-corrosive gases such as argon, carbon dioxide, and nitrogen. Featuring a robust stainless steel housing, the device withstands industrial environments with an IP65 and IP67 ingress protection rating. It measures flow rates between 5.3L/min and 1590L/min with high accuracy using a calorimetric measurement principle, offering ±3% of measured value and ±0.3% of maximum measured value precision.

This flow meter integrates the measurement of gas flow, temperature, process pressure, and energy consumption into a single sensor, reducing installation complexity and improving system transparency. Its maximum operating pressure is 16 bar with operational temperatures ranging from -20°C to 60°C. The FTMG series includes Power over Ethernet (PoE) connectivity for easy integration with OPC UA networks and web-based systems, enhancing data accessibility and system connectivity.

The device is equipped with data logging capabilities for seven days and internal static analysis, enabling early detection of leaks in pneumatic systems, which aids in reducing energy wastage and operational costs. The contrast-rich OLED display simplifies user interaction and commissioning, showing multiple measured values and process diagrams. The flow meter’s high measurement dynamic range is ideal for cylinder and leakage monitoring applications.

Suitable for various industrial, laboratory, and manufacturing environments, this flow meter helps maintain efficient compressed air use, supporting energy saving measures aligned with DIN EN 50001 standards. The meter’s reliable and precise performance increases system reliability and production efficiency by monitoring and managing gas consumption effectively.

Manufactured in Germany, the SICK FTMG-ESD15AXO flow meter complies with CE standards and carries the Better World Claim for energy savings. It is designed for use in industrial automation, HVAC systems, water treatment plants, and other manufacturing processes requiring accurate gas flow measurement and monitoring.

Measures compressed air and non-corrosive gases with high accuracy. Calorimetric measurement principle ensuring precise readings. Integrates flow, temperature, pressure, and energy consumption measurement. Durable stainless steel housing with IP65/IP67 protection.

Power over Ethernet interface supports simple network integration. Internal data logging and leak detection capabilities. Large OLED display for intuitive configuration and operation. Certified CE compliant and energy-efficient design.
