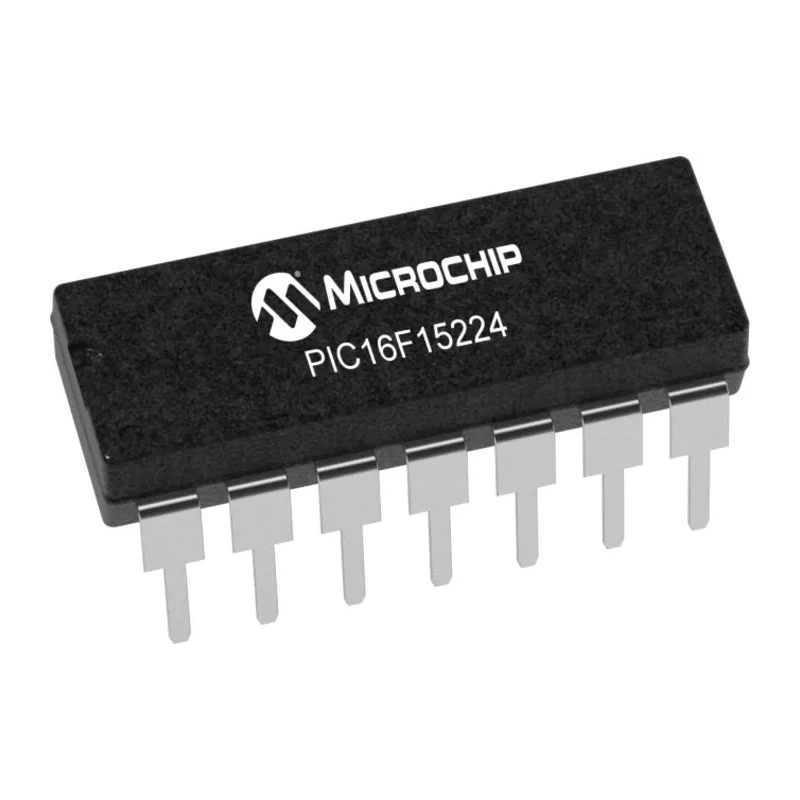

Microchip 8 bit PIC16F Microcontroller 32 MHz 7kB FLASH 14-Pin PDIP PIC16F15224-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 3mm |
| Model | PIC16F15224-I/P |
| Width | 3mm |
| Mount Type | Through Hole |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC16F |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 9 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates on 1.8V to 5.5V supply voltage.
- Features 12 programmable I/Os for flexible interfacing.
- Equipped with 512-bit RAM and 7kB FLASH program memory.
- Integrated with 9 ADCs of 10-bit resolution for analog signal processing.
- Supports Peripheral Pin Select (PPS) for customizable pin configuration.
- Utilizes RISC architecture for efficient processing.
- Designed for through-hole mounting in PDIP package.
- Rated for operating temperature from -40°C to 85°C suitable for industrial applications.
Product Description
Microchip PIC16F15224-I/P is an 8-bit PIC16F series microcontroller designed for cost-sensitive sensor and real-time control applications. It operates at a maximum clock frequency of 32 MHz and incorporates 7kB of FLASH program memory along with 512-bit RAM, allowing efficient code execution and data handling.
This microcontroller comes in a 14-Pin PDIP package suitable for through-hole mounting, with a height of 900μm, length of 3mm, and width of 3mm, making it compact and easy to integrate into electronic circuits.
Operating voltage ranges from 1.8V minimum to 5.5V maximum, with a maximum power dissipation of 800mW. It features 12 programmable I/Os, one timer, and 9 analog-to-digital converters (ADCs) with 10-bit resolution for accurate analog signal measurement. The device utilizes the RISC instruction set architecture and supports Peripheral Pin Select (PPS) for flexible pin assignments.
Designed with robustness in mind, the PIC16F15224-I/P operates reliably within a temperature range of -40°C to 85°C, suitable for industrial, automotive, and general embedded system applications. It complies with RoHS environmental standards. Its flash memory structure and versatile peripherals make it ideal for embedded control, sensor interfacing, and real-time processing tasks.
Operates on a 32 MHz maximum clock frequency for high-speed processing. 7kB FLASH program memory with fast write and erase cycles. 12 programmable input/output pins allow flexible hardware interfacing. Includes 9 10-bit ADCs for precise analog data acquisition.
Mounted in a standard PDIP 14-pin package for easy prototyping and PCB layouts. Wide operating temperature range supports industrial environments. Low power consumption with maximum dissipation of 800mW.
Microchip offers comprehensive technical support and documentation, including datasheets, application notes, and design resources to assist developers in implementing this microcontroller into various electronic and embedded projects. It is commonly used in electronics manufacturing, laboratory instrumentation, automotive electronics, and consumer electronics development.
Explore more Microcontrollers and semiconductor products at EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F15224-I/P operates at a maximum clock frequency of 32 MHz.
It features 7kB of FLASH program memory for efficient code execution.
The operating supply voltage ranges from a minimum of 1.8V to a maximum of 5.5V.
This model includes 12 programmable input/output pins for flexible interfacing.
It is rated for an operating temperature range from -40°C to 85°C, suitable for industrial applications.
The PIC16F15224-I/P is packaged in a 14-Pin PDIP suitable for through-hole mounting.
It is equipped with 9 analog-to-digital converters (ADCs) of 10-bit resolution for accurate analog signal processing.
The maximum power dissipation is rated at 800mW.
It has a RAM size of 512 bits, allowing for efficient data handling.
Yes, it supports Peripheral Pin Select (PPS) for customizable pin configuration.
It utilizes a RISC instruction set architecture for efficient processing.
Yes, it complies with RoHS environmental standards.
