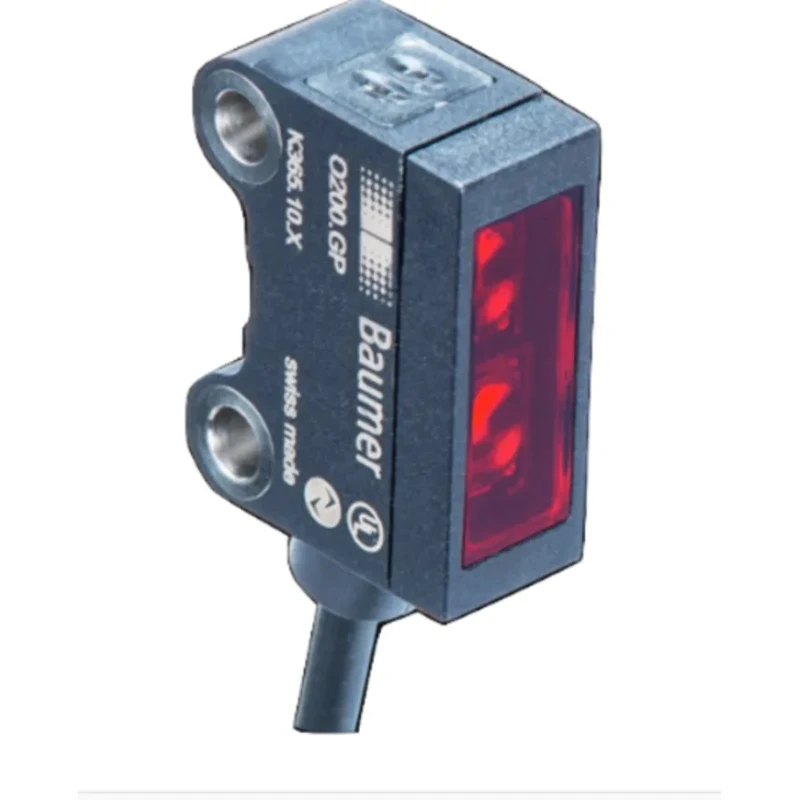

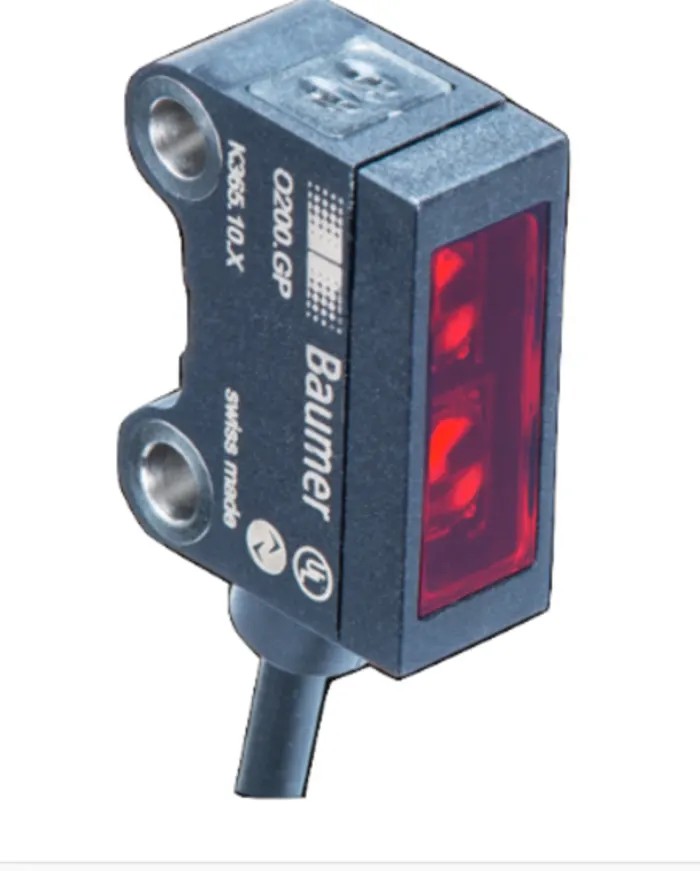

Baumer Light Barrier Photoelectric Sensor Block Sensor Detection Range 15 mm to 180 mm Push Pull O200.SL.T-GW1J.72NV/F160

The Baumer O200.SL.T-GW1J.72NV/F160 light barrier Photoelectric Sensor is a precision block sensor designed for industrial automation and control applications. It offers a detection range from 15 mm up to 180 mm using a pulsed pinpoint laser light source, ensuring reliable object detection with high accuracy.

This sensor features a push-pull output and integrates an IO-Link interface with teach-in function for versatile connectivity and easy setup in complex systems. Its terminal connection is a rugged M8 connector with a 4-pin 200 mm fly lead, allowing smooth mechanical mounting and secure electrical connections.

The housing is constructed from a combination of polymethyl methacrylate and acrylonitrile styrene acrylate, providing robust protection against mechanical stresses and environmental factors. It is rated IP67 for dust-tight and water immersion resistance, making it suitable for harsh industrial environments including manufacturing, automation, and material handling sectors.

The sensor operates reliably in a temperature range from -20°C to +50°C, supporting a wide variety of industrial climate conditions. Electrical ratings include a maximum DC voltage of 30 V dc and a maximum current of 50 mA, while delivering fast response times of 0.25 ms to enable real-time process control.

This product complies with IEC standards, although it does not have hazardous area certification, limiting its use to safe areas. Its compact design with a 60 mm focus distance allows accurate detection of objects within the specified sensing range.

Common applications include photoelectric sensing for part detection, counting, positioning, and presence verification in automated machinery, robotics, conveyor systems, and quality inspection equipment.

This sensor uses a laser light source for precise detection. The device provides IO-Link interface with teach-in functionality. It features an M8 connector terminal type with a 4-pin 200 mm fly lead. The sensor housing material includes polymethyl methacrylate and acrylonitrile styrene acrylate.

Its protection rating is IP67, suitable for harsh industrial environments. Operating temperature range spans from -20°C to +50°C. Maximum DC voltage rating is 30 V dc, with a maximum current of 50 mA. Response time is fast at 0.25 ms for quick signal processing.

IEC standard approved, without hazardous area certification. Designed for accurate light barrier detection in automation applications. Discover more precision sensing solutions in the Sensors category at EnvMart for your automation and industrial requirements.
