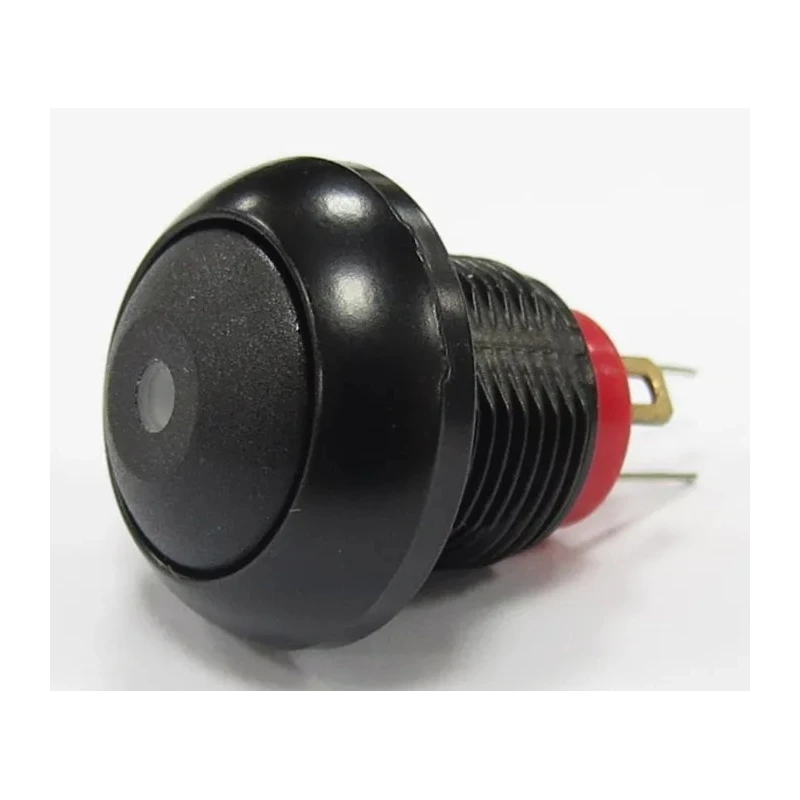

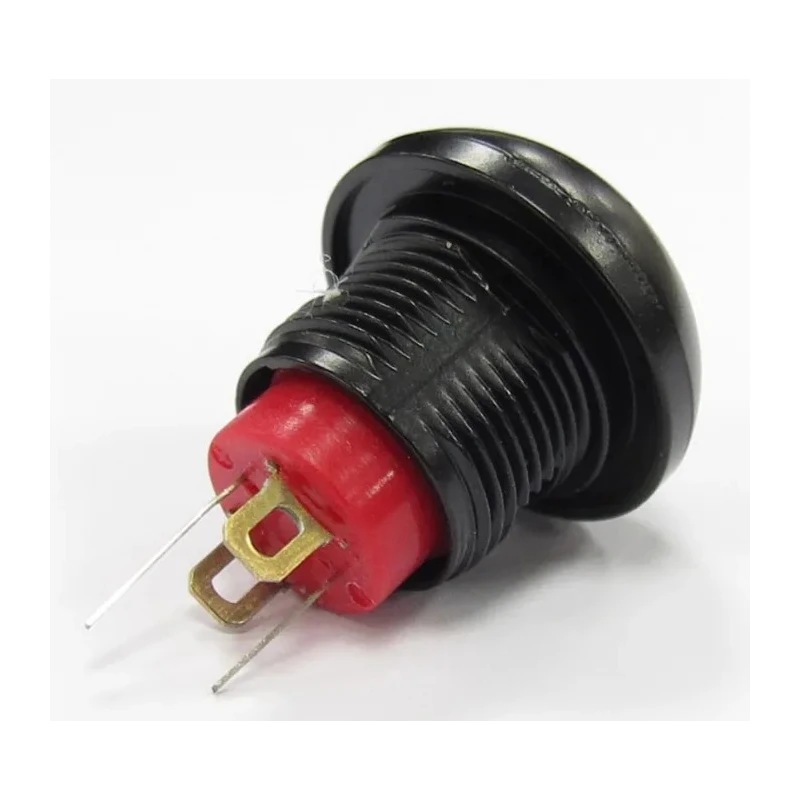

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Red LED, IP67, 36 V DC, 250 V 209-9103

RS PRO 209-9103 is an illuminated push button switch designed for momentary operation, intended for panel mounting with a 13.6 mm cutout size. Featuring a single-pole, single-throw (SPST) contact configuration, this switch integrates a red LED illumination for enhanced visibility in control panels and equipment.

Constructed with a robust polyamide 6/6 actuator, the flat dome cap ensures ergonomic and reliable actuation. It has a solder lug terminal type facilitating secure electrical connections in diverse industrial and commercial applications.

The switch supports a contact voltage rating of 36 V DC and 250 V AC, with a contact current of 125 mA, rendering it suitable for telecommunications, networking, handheld appliances, and test equipment use cases. Its IP67 rating certifies its resistance to dust ingress and water immersion, making it ideal for harsh operational environments.

This RS PRO switch boasts an extended mechanical life with one million cycles and operates effectively within a temperature range of -35°C to 85°C, accommodating a variety of climatic conditions. The operating force ranges between 2 N and 5 N, providing a tactile and dependable response.

Panel thickness compatibility ranges from 1.5 mm to 4 mm, with mounting options including threaded or press-fit designs, enabling versatile installation. Compact dome-shaped flat actuator with black color for aesthetic and functional versatility.

Illuminated design with red LED for clear visual indication during operation. Rated for 36 V DC and 250 V AC applications, suitable for low voltage industrial control. Provides IP67 ingress protection ensuring resistance against dust and water exposure.

Panel mount configuration with solder lug terminals for secure connections. Mechanical life expectancy of 1,000,000 cycles ensures long-lasting operation. Operating temperature range from -35°C to 85°C for varied environmental conditions.

Operating force between 2 N and 5 N, offering responsive tactile feedback. Contact current capacity of 125 mA compatible with test equipment and network devices. Flat actuator style manufactured from durable polyamide 6/6 material with coated contacts.

This switch is designed for industrial, telecommunications, networking, laboratory, and commercial applications that require a reliable and visually indicated momentary Push Button Switch. Its robust construction and IP67 rating make it suitable for demanding environments.
