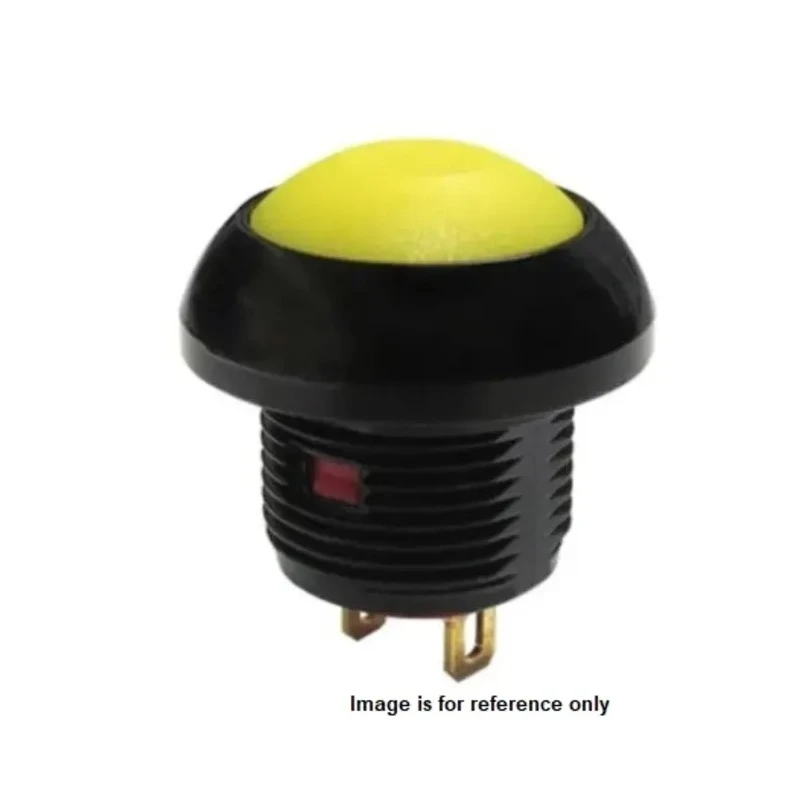

RS PRO Sub-Miniature Momentary Push Button Switch Panel Mount SPST Orange LED IP67 36V DC 250V AC 209-9115

RS PRO 209-9115 is a sub-miniature push button switch designed for panel mounting with a SPST (single-pole, single-throw) contact configuration and momentary operation. The switch has a 13.6 mm cutout, featuring a flat yellow actuator cap illuminated by an orange LED. Constructed with high-quality Polyamide 6/6 material, it provides durability alongside an IP67 ingress protection rating that ensures robust performance even in demanding industrial environments.

It supports a contact voltage of up to 36 V DC and 250 V AC, with a contact current of 125 mA, making it suitable for various control and automation tasks. The switch operates reliably in temperatures between -35°C and 85°C and mounts securely to panels with thicknesses from 1.5 mm to 4 mm. The solder lug terminals allow secure and straightforward wiring connections.

The mechanical design promises a life cycle of 1,000,000 actuation cycles, providing long-term reliability. Its IP67 ingress protection rating makes the switch resistant to dust and water, suitable for indoor and outdoor industrial applications, including telecommunications, networking, test equipment, and handheld appliances.

This RS PRO push button switch provides versatility with options to illuminate the button for enhanced visual indication and aesthetic versatility. The dome/flat cap style can be selected in multiple colors, and this particular model uses a yellow actuator combined with a bright orange LED for visibility.

The switch operates on momentary (off-on) action for process activation or machine control. It is equipped for high-quality performance with gold over silver-plated contacts for reliable conductivity. Its compact design and extensive operating temperature range support a wide range of industrial, laboratory, and commercial applications.

The sturdy plastic construction and high mechanical life span ensure dependable switching action under rigorous usage. The IP67 rating confirms excellent sealing against dust ingress and water immersion, enabling use in adverse environments.

This product is a trusted choice for electrical switching needs in various sectors including automation, manufacturing, telecommunications, and laboratory equipment. It exemplifies RS PRO's commitment to quality and value with durable, reliable components engineered for optimal performance.
