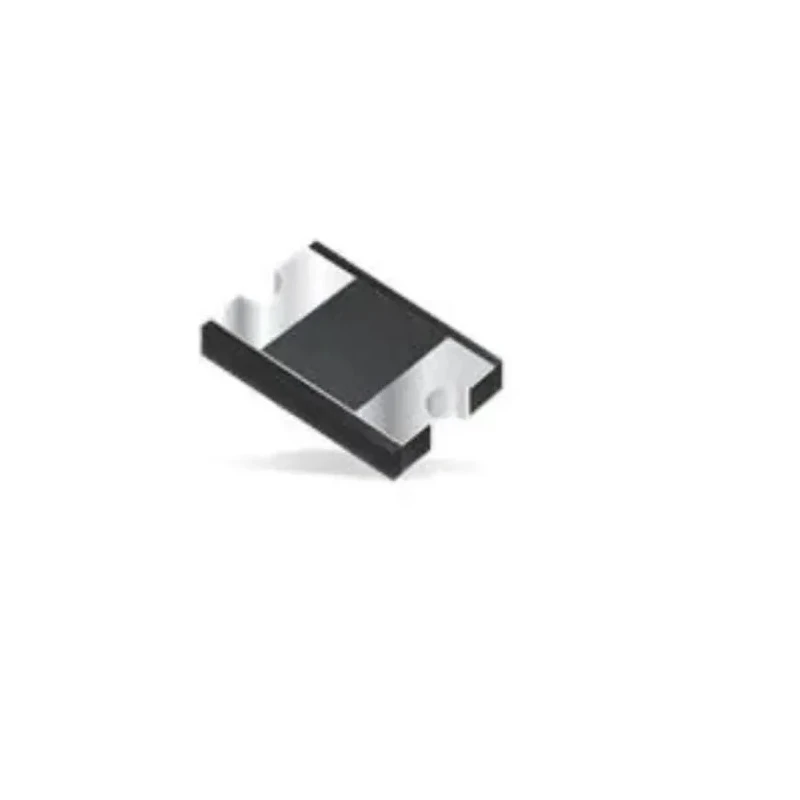

Bourns 400 V 1 A Fast Recovery Single Diode 2-Pin DO-214AC Package CD214A-RS1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.16mm |
| Length | 4.5mm |
| Model | CD214A-RS1G |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 150ns |
Key Features
- Surface mount construction in compact DO-214AC form factor.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating of 400 volts.
- Low forward voltage drop of 1.3 V to reduce power loss.
- Fast recovery time of 150 nanoseconds supports high-frequency switching.
- Peak non-repetitive forward surge current up to 30 amperes.
- Operating temperature range from -65°C to +175°C.
- Certified to automotive standard AEC-Q101 for reliability.
Product Description
Bourns CD214A-RS1G is a fast recovery diode designed for surface mount applications requiring high efficiency and reliability. This single diode in a DO-214AC package accommodates a maximum continuous forward current of 1 amp and a peak reverse voltage of 400 volts, making it suitable for demanding power rectification tasks in electronics.
Its glass passivated rectifier construction offers low power loss and a forward voltage of 1.3 V, ensuring high efficiency during operation. With a fast recovery time of 150 ns, it is well suited for switching applications where rapid response is critical.
The diode supports peak non-repetitive forward surge currents up to 30 A, allowing it to handle transient overloads effectively. It operates reliably within a broad temperature range from -65°C up to 175°C and meets the automotive quality standard AEC-Q101, making it suitable for automotive and industrial environments.
Its compact DO-214AC (SMA) form factor facilitates integration into PCB layouts with limited space. The Bourns CD214A-RS1G diode is RoHS compliant and halogen free, affirming its compliance with environmental regulations.
Surface mount 2-pin DO-214AC package. Maximum continuous forward current: 1 ampere. Peak reverse voltage: 400 volts. Forward voltage drop: 1.3 volts. Fast recovery time: 150 nanoseconds. Peak surge current capability: 30 amperes.
Operating temperature from -65°C to 175°C. Automotive grade AEC-Q101 certification. RoHS compliant and halogen free. Glass passivated rectifier technology.
This diode finds applications in power supplies, automotive electronics, industrial controls, and other fields requiring efficient and reliable power rectification. It is ideal for use in electronic component assemblies requiring durability and fast switching performance.
Explore more semiconductor and diode products in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
It has a peak reverse repetitive voltage rating of 400 volts.
The forward voltage drop is 1.3 volts, which helps reduce power loss during operation.
The recovery time for the CD214A-RS1G is 150 nanoseconds, making it suitable for high-frequency switching applications.
This diode can handle peak non-repetitive forward surge currents up to 30 amperes.
The operating temperature range is from -65°C to 175°C.
It comes in a DO-214AC package, suitable for surface mount applications.
It is certified to the automotive standard AEC-Q101 for reliability.
The dimensions are 4.5mm in length, 2.2mm in width, and 1.16mm in height.
This model is a fast recovery rectifier designed for high efficiency and reliability.
Yes, it is RoHS compliant and halogen free, meeting environmental regulations.
This diode is suitable for applications in power supplies, automotive electronics, and industrial controls.
