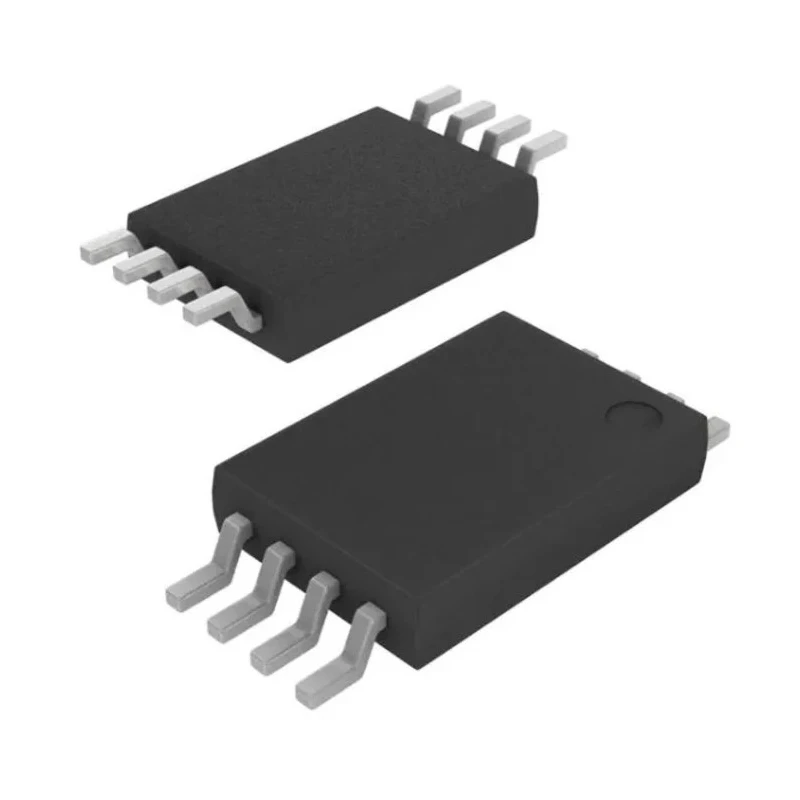

STMicroelectronics Operational Amplifier 1.1 MHz Dual Channel 8-Pin TSSOP-8 Surface Mount LM2904YPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | LM2904YPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LM2904 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 150 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 30 nA |
Key Features
- Dual independent high gain operational amplifiers in a single package.
- Internally frequency compensated for stable operation.
- Wide supply voltage range from 3V to 30V suitable for automotive and industrial systems.
- Low input bias current and offset currents ensuring precision.
- Temperature compensated characteristics for reliable performance between -40°C and 125°C.
- Packaged in compact 8-pin TSSOP surface mount package measuring 3.1 mm by 4.5 mm.
- Output current capability rated at up to 40 mA per amplifier.
- Compliance with RoHS and automotive AEC-Q3 and AEC-Q100 standards.
Product Description
STMicroelectronics LM2904YPT is a dual operational amplifier designed for automotive and industrial control applications. It features two independent high gain op amps with internally implemented frequency compensation ensuring stable operation across various conditions.
The device operates at a wide voltage range from 3V minimum to 30V maximum, providing flexibility for different power supply designs. It delivers a wide bandwidth with a gain bandwidth product of 1.1 MHz and a slew rate of 0.6 V/μs, suitable for precise amplification tasks.
Low input bias and offset currents, both temperature compensated, reduce error and improve accuracy in sensitive electronic circuits. It supports operation over a broad temperature range from -40°C to 125°C, ensuring robustness in harsh environment conditions.
This amplifier comes in an 8-pin TSSOP surface mount package with compact dimensions of 3.1 mm length, 4.5 mm width, and 1.2 mm height. The output current rating is 40 mA per amplifier. The device is compliant with industry standards including RoHS and automotive standards AEC-Q3 and AEC-Q100.
Dual independent high gain operational amplifiers in a single compact package. Wide voltage supply range with low power consumption. Designed with temperature compensated inputs for consistent performance. Compact surface mount packaging suitable for dense PCB layouts.
Manufactured to meet automotive and industrial reliability standards.
This STMicroelectronics LM2904YPT Operational Amplifier is ideal for industrial, automotive, and electronic instrumentation applications requiring reliable, precise amplification and signal conditioning. It supports a variety of control and sensing circuits.
Explore a wide range of amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.1 MHz, providing a wide bandwidth for amplification tasks.
It has an output current capability rated at up to 40 mA per amplifier, suitable for various applications.
This operational amplifier operates over a temperature range from -40°C to 125°C, ensuring reliable performance in harsh conditions.
It supports a wide supply voltage range from 3V to 30V, making it flexible for different power supply designs.
The operational amplifier comes in an 8-pin TSSOP surface mount package with dimensions of 3.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
It is compliant with RoHS and automotive standards AEC-Q3 and AEC-Q100, ensuring it meets industry reliability requirements.
The input bias current is specified at 150 nA, which helps in reducing error in sensitive electronic circuits.
The slew rate of this model is 0.6 V/μs, which is important for determining how quickly the output can respond to changes in input.
This operational amplifier features two independent channels, allowing for dual amplification in a single package.
The input offset voltage is specified at 7 mV, which contributes to the precision of the amplifier's performance.
It is designed for surface mounting, specifically in an 8-pin TSSOP configuration, suitable for dense PCB layouts.
This operational amplifier is ideal for industrial, automotive, and electronic instrumentation applications requiring precise amplification and signal conditioning.
