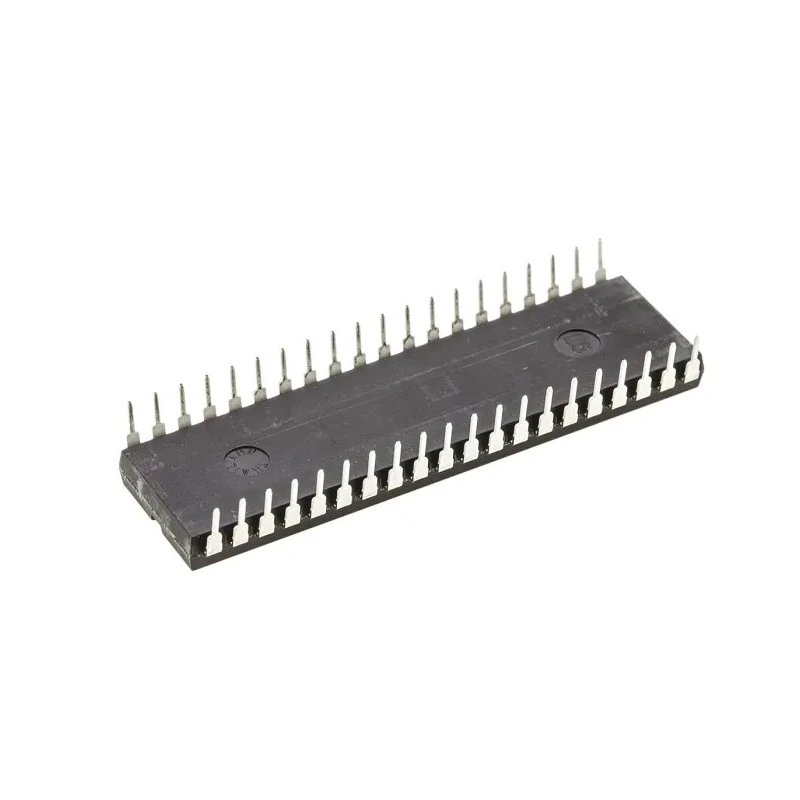

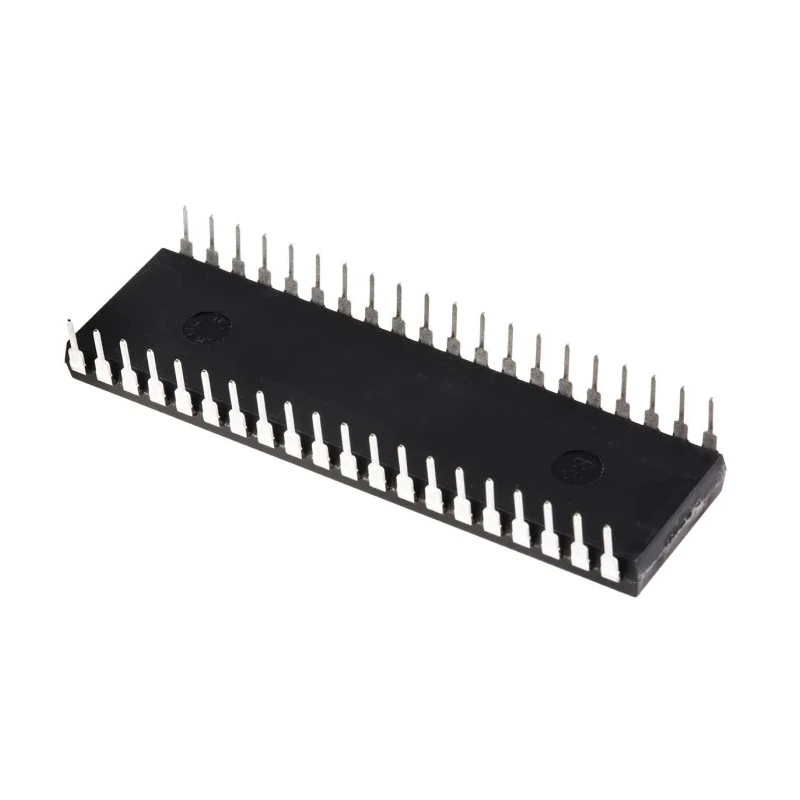

Microchip 3.5 Digits Dual Slope ADC, Voltage Input, Through Hole PDIP 40-Pin TC7107CPL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 3.5 Digits |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC7107CPL |
| Mount Type | Through Hole |
| Series | TC7107 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | BCD Output |
| Architecture | Dual Slope |
| Pin Count | 40 |
| Minimum Supply Voltage | 6V |
| Number of ADCs | 1 |
Key Features
- Features 3.5 digit resolution with dual slope architecture for accurate analogue to digital conversion.
- Equipped with 40-pin PDIP package suited for through-hole mounting on PCBs.
- Operates with a minimum supply voltage of 6V and supports BCD output interface.
- Designed to operate reliably between 0°C to 70°C ambient temperatures.
- Compact footprint with dimensions of 52.38mm length and 6.25mm height.
- Ideal for precision measurement applications requiring stable voltage input conversion.
- Non-automotive grade component without specific industry approvals.
- Single ADC integrated within the IC supporting industrial and laboratory equipment.
Product Description
The Microchip TC7107CPL is a 3.5 digit Analogue to Digital Converter (ADC) featuring a dual slope architecture designed specifically for voltage input measurement applications. Packaged in a through-hole 40-pin PDIP form factor, it offers an easy-to-layout solution for PCB designers requiring high-accuracy ADC functions.
This device operates with a minimum supply voltage of 6V and outputs the conversion result in a BCD format, enabling straightforward digital interface with microcontrollers and digital systems. The TC7107CPL is stable across a temperature range of 0°C to 70°C, making it suitable for various industrial, laboratory, and instrumentation use cases.
With its precise 3.5 digit resolution, this ADC excels in applications requiring targeted measurement accuracy such as digital voltmeters, instrumentation panels, and industrial control systems.
The compact dimensions of 52.38mm length and 6.25mm height fit standard PDIP sockets or direct PCB mounting. Despite lacking automotive or specific compliance certifications, the device is widely trusted for general electronic component uses.
Typical industrial applications include control panel instrumentation, laboratory measurement equipment, and bespoke electronic designs requiring intermediate level ADC performance.
Features 3.5 digit resolution with dual slope architecture for accurate analogue to digital conversion. Equipped with 40-pin PDIP package suited for through-hole mounting on PCBs. Operates with a minimum supply voltage of 6V and supports BCD output interface.
Designed to operate reliably between 0°C to 70°C ambient temperatures. Compact footprint with dimensions of 52.38mm length and 6.25mm height. Ideal for precision measurement applications requiring stable voltage input conversion.
Non-automotive grade component without specific industry approvals. Single ADC integrated within the IC supporting industrial and laboratory equipment. Explore more products like the Microchip TC7107CPL ADC and other semiconductor components available for electronics manufacturing, testing, and design at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC7107CPL features a resolution of 3.5 digits, allowing for accurate analogue to digital conversion.
This model operates with a minimum supply voltage of 6V.
It supports a BCD output interface, which enables easy integration with microcontrollers and digital systems.
The TC7107CPL is designed to operate reliably between 0°C to 70°C ambient temperatures.
This model has compact dimensions of 52.38mm in length and 6.25mm in height.
The TC7107CPL integrates a single ADC within the IC.
The TC7107CPL is packaged in a 40-pin PDIP form factor suitable for through-hole mounting on PCBs.
This ADC utilizes a dual slope architecture for accurate analogue to digital conversion.
No, the TC7107CPL is a non-automotive grade component and does not have specific industry approvals for automotive use.
It is ideal for precision measurement applications such as digital voltmeters, instrumentation panels, and industrial control systems.
The TC7107CPL is manufactured in India.
This model is designed for voltage input measurement applications.
