STMicroelectronics High Speed Digital Input Current Limiter Evaluation Board Interface Development Kit STEVAL-IFP030V1

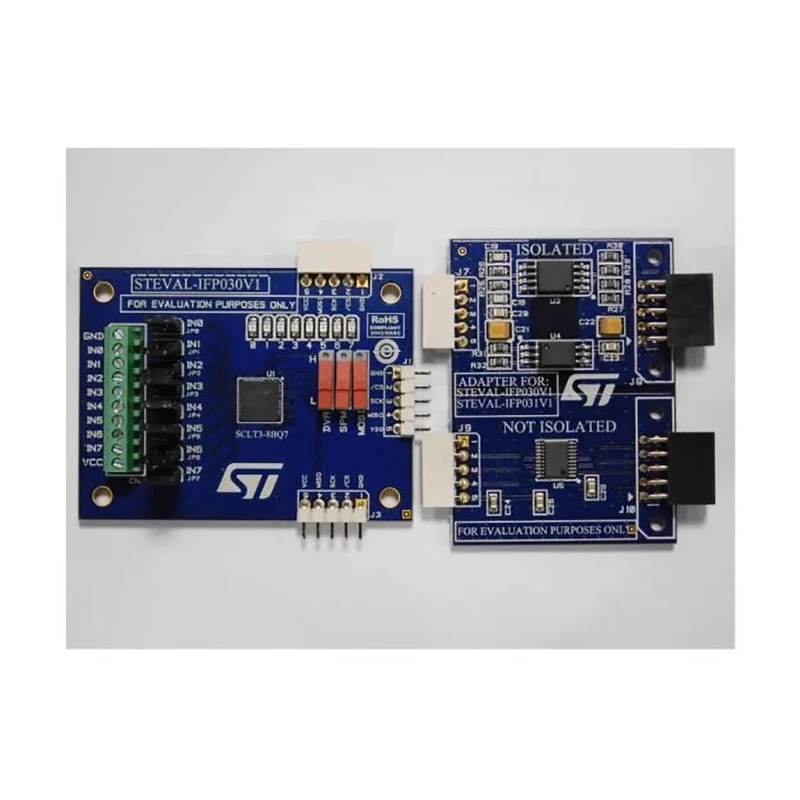

STMicroelectronics STEVAL-IFP030V1 is a high-speed digital input current limiter evaluation board designed specifically for interface development in programmable logic controllers (PLCs). This evaluation board is based on the featured SCLT3-8BQ7 device that enhances I/O module density while reducing power dissipation to approximately 78 mW per input. The design significantly reduces the number of required opto-transistors, improving efficiency and reliability.

The board provides an 8-line protected digital input termination with serialized state transfer, leveraging a 2 MHz SPI peripheral output that serializes the input state transfer directly to the I/O module controller. Each input channel is equipped with an adjustable digital filter and integrated LED driver for real-time status indication.

Its flexible operation modes include 8-bit and 16-bit configurations with parity check mechanisms, and it also supports temperature and voltage alarms for enhanced monitoring. The daisy-chain capability allows multiple STEVAL-IFP030V1 boards to be interconnected, enabling scalability for larger systems.

The board features an adjustable minimal digital filter time setting with options of 20 microseconds and 160 microseconds, allowing users to adapt the filtering according to specific application needs.

Manufactured in Italy, this evaluation kit complies with RoHS standards and serves as a versatile tool for FPGA development and interface prototyping. It is suitable for industrial automation, control system development, and educational purposes in electronics and embedded systems engineering.

The board enhances I/O density and reduces dissipation for digital inputs. Embedded adjustable digital filter improves signal integrity. LED drivers provide clear input status indication. 2 MHz SPI output offers efficient serialized input state communication.

Supports advanced features including parity checks and alarm functions. Daisy-chain capability enables system expansion and flexibility. RoHS compliant and manufactured in Italy ensuring quality and compliance.

This STEVAL-IFP030V1 Evaluation Board is part of the extensive range of interface development kits available at EnvMart, providing reliable and efficient solutions for electronic component prototyping and industrial applications.
