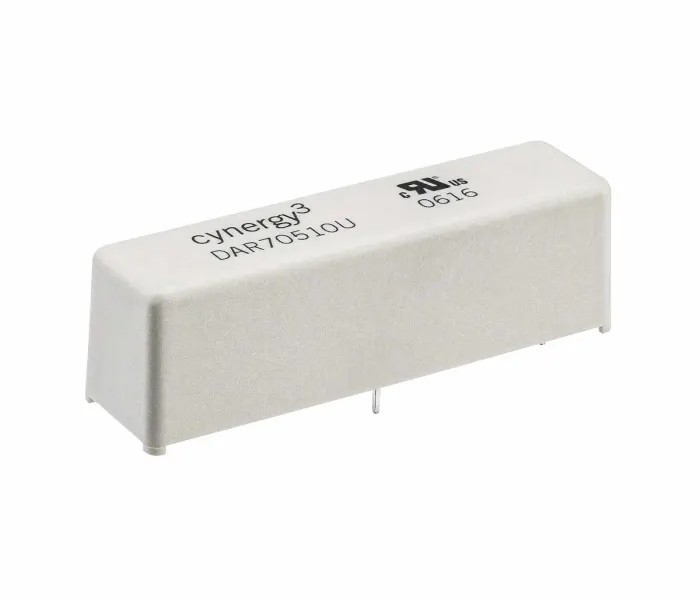

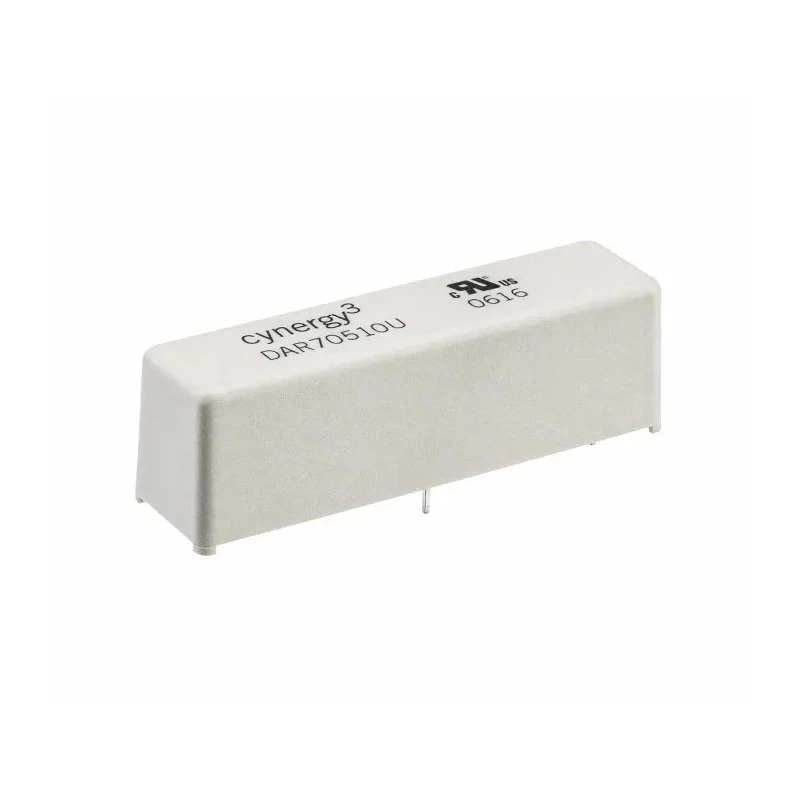

Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact, 7000V DC Isolation, 2A Max, 50W Coil Power, 780Ω Coil Resistance, DAT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 780Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- Provides high isolation voltage of up to 7000V DC ensuring safe signal switching.
- Coil power rating of 50W with coil resistance of 780 ohms for efficient operation.
- PCB mounting type with PCB terminals supports easy integration on circuit boards.
- Fast operating time of 3 milliseconds suitable for sensitive electronic controls.
- Temperature range of -20°C to 70°C for reliable performance under diverse conditions.
- Low contact resistance of 250 milliohms reduces signal loss and ensures durability.
- Non-latching relay type designed for momentary switching applications.
- UL approved product from the DAT series ensuring quality and safety standards.
Product Description
Cynergy3 DAT72475U PCB Reed Relay is engineered with a 24V DC coil and SPST contact configuration, delivering robust switching capabilities with high voltage isolation of up to 7000V DC. Designed for PCB mounting, it features PCB terminals for seamless board integration. The relay belongs to the DAT series known for reliable performance in critical applications.
This relay provides a coil power rating of 50 watts and a coil resistance of 780 ohms, balancing power efficiency and responsiveness. With an operating time of 3 milliseconds, it is ideal for applications requiring quick actuation within power electronics, test equipment, and safety systems.
Operating effectively in environments from -20°C to 70°C, the relay caters to a range of industrial, electrical, automation, and signal conditioning uses. It does not latch and features low contact resistance of 250 milliohms, which minimizes signal drop and enhances relay life.
Notably, the relay achieves very high isolation voltage between coil and contacts, with an isolation rating of 17kV, ensuring strong protection against voltage spikes. Its dimensions (60 mm length and 18.5 mm height) make it suitably compact for PCB applications, while carrying UL approval for assured quality and compliance.
Commonly used in medical devices like cardiac defibrillators, high voltage power supplies, and precision testing instruments, this Cynergy3 PCB reed relay is a reliable choice for sophisticated signal switching needs.
High isolation voltage up to 7000V DC ensures device safety. Compact PCB mounting design with PCB terminals for easy installation. Fast 3ms operating time supports timely and precise control. Durable coil powering with 50W rating and 780Ω resistance.
Wide temperature tolerance between -20° and 70°C for versatile use. Low contact resistance minimizes losses and maintains signal integrity. UL certified for trusted industrial and electrical applications. Non-latching SPST relay suitable for momentary switching requirements.
Explore the full range of Cynergy3 Reed Relays and other quality relay components at EnvMart for your industrial, automation, and electrical control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay provides a high isolation voltage of up to 7000V DC, ensuring safe signal switching.
It has a coil power rating of 50 watts, which supports efficient operation.
The coil resistance is 780 ohms, contributing to its efficient performance.
This model has a fast operating time of 3 milliseconds, suitable for sensitive electronic controls.
The relay measures 60 mm in length and 18.5 mm in height, making it compact for PCB applications.
It operates effectively within a temperature range of -20°C to 70°C.
It features an SPST (Single Pole Single Throw) contact configuration.
This relay is designed for PCB mounting and features PCB terminals for easy integration.
The contact resistance is 250 milliohms, which helps reduce signal loss.
Yes, it is UL approved, ensuring it meets quality and safety standards.
It is commonly used in medical devices, high voltage power supplies, and precision testing instruments.
The isolation rating between the coil and contacts is 17kV, providing strong protection against voltage spikes.
