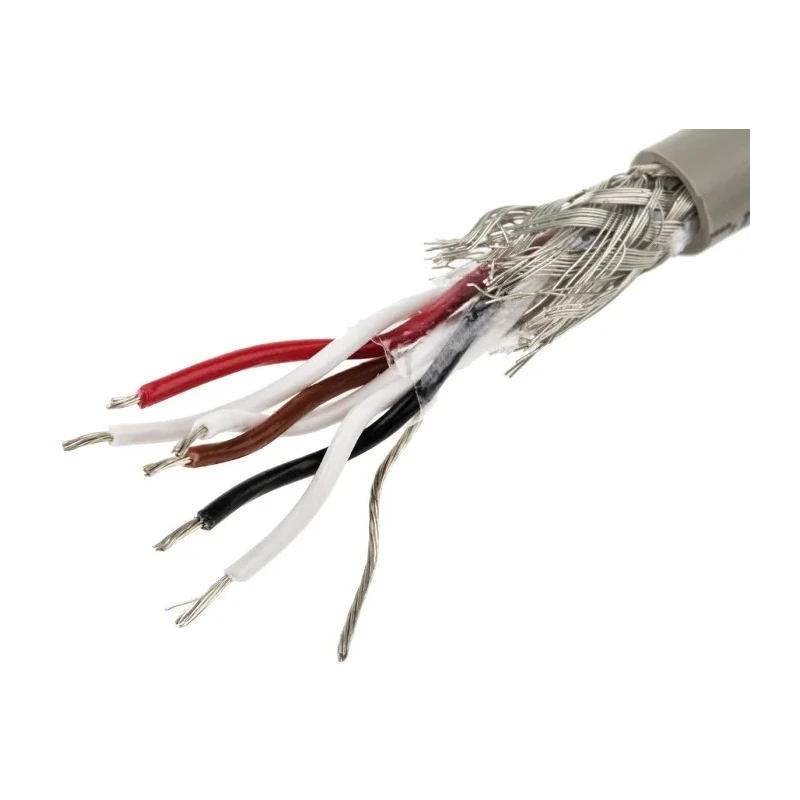

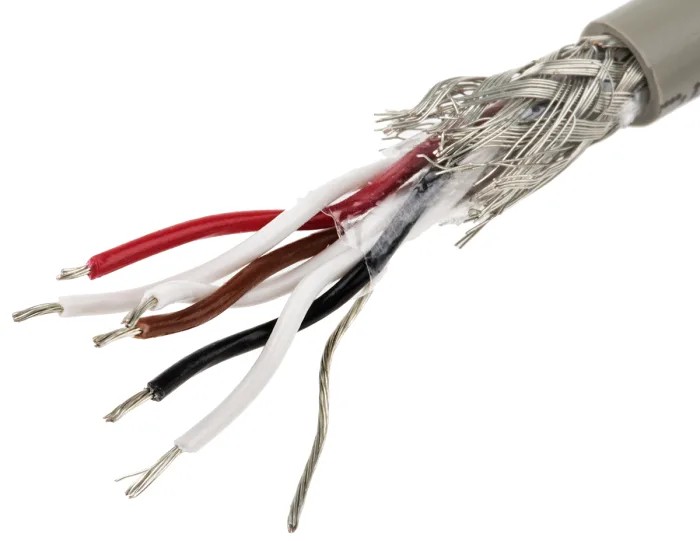

Alpha Wire Pro-Tekt Series Data Cable 3 Pairs 6 Cores 0.56 mm² 50 m Grey PVC Jacket 300V B965033 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.56mm² |
| Model | B965033 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 8.56mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Interfaces | Ethernet and communication links Used for sensor and actuator cabling in machinery Can be used for distributed I/O and fieldbus installations Suitable for long continuous runs from spools |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4907Brand: Alpha WireManufacturers Part No.: B965033 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Copper |
| Number of Strands | 7 |
| Core Strands | 7 x 28AWG |
| Size of Strands | 28AWG |
| Number of Pairs | 3 |
Key Features
- This cable features a tin-plated copper conductor with seven strands for enhanced flexibility.
- The 0.56 mm² conductor area supports low-loss signal transmission for industrial environments.
- The flame-retardant PVC jacket improves fire safety and durability.
- Rated for 300 volts, suitable for typical industrial signaling circuits.
- The operational temperature range extends up to 105 °C for high-temperature tolerance.
- The cable is sunlight-resistant, allowing outdoor installation and exposed routing.
- It complies with CE, CSA, and UL standards, ensuring reliability and safety.
- The cable is designed for use in control cabinets, factory automation, and industrial Ethernet applications.
Product Description
Alpha Wire B965033 GE321 Pro-Tekt Series Data Cable is a high-quality industrial cable designed for signal transmission and Ethernet in automation and machinery environments. It is constructed with a 0.56 mm² tin-plated copper conductor comprising seven 28AWG strands, ensuring excellent flexibility and low-loss communication performance.
This cable features three individually twisted pairs with specified twist rates, maintaining consistent pair balance to reduce interference and maintain signal integrity over long runs. Its grey flame-retardant polyvinyl chloride (PVC) jacket provides enhanced fire resistance and protection against harsh conditions, including sunlight exposure, allowing outdoor applications.

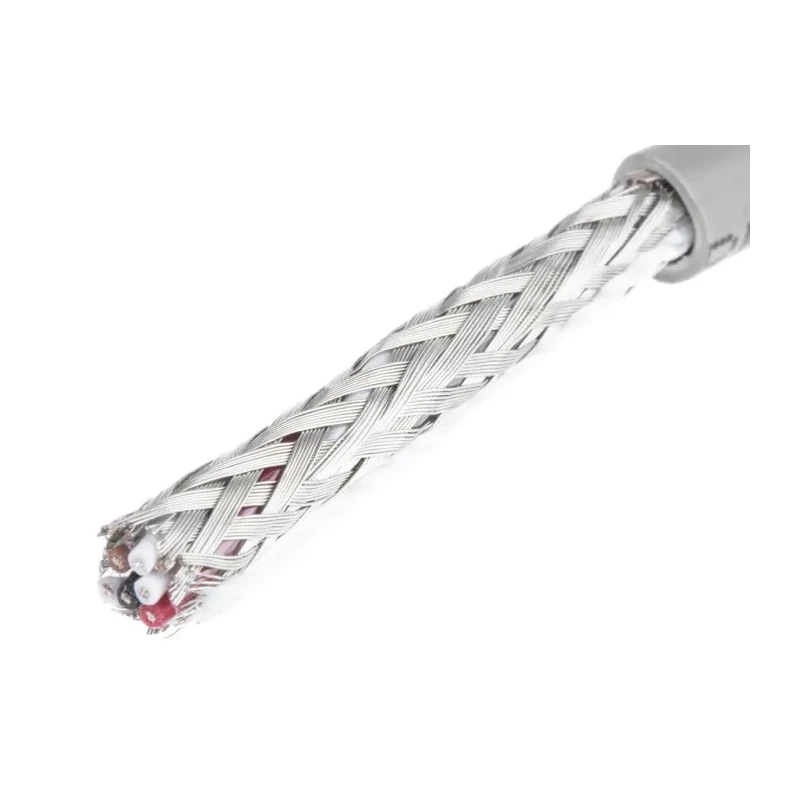

The cable operates at a voltage rating of 300V and withstands temperatures from -30°C to 105°C, making it suitable for varied industrial and control cabinet environments. The inclusion of a braided tin-copper shield offers mechanical protection and electromagnetic interference (EMI) shielding, supported by a 20 AWG drain conductor for grounding and a ripcord to facilitate easy jacket removal during installation.

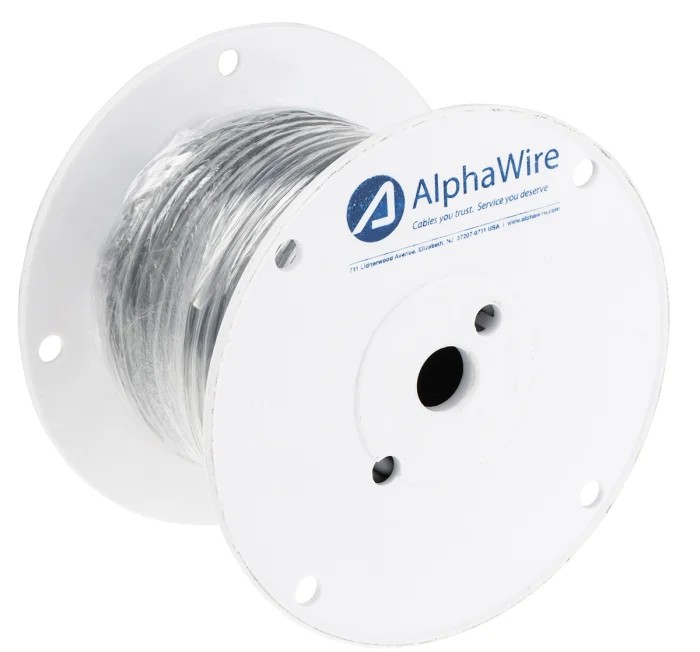

Typical applications include factory automation wiring, industrial Ethernet communications, sensor and actuator connections, and distributed I/O or fieldbus systems. The cable is supplied on industry-standard spools, minimizing joins and simplifying large installations requiring continuous cable lengths.
This cable uses tin-plated copper conductors with 7 strands for flexibility. The flame-retardant PVC jacket enhances safety and durability. Supports industrial Ethernet and communication links. Suitable for sensor, actuator, and distributed I/O cabling.
Complies with CE, CSA, and UL certifications. Rated for 300 volts and temperatures up to 105°C. Sunlight resistant for outdoor routing applications. Includes braided shield and ripcord for ease of installation.
Choose Alpha Wire Pro-Tekt Series Data Cable for reliable, flexible, and safe industrial data transmission in demanding environments. Explore more cables and electrical components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor area of this data cable is 0.56 mm².
This model can operate at a maximum temperature of 105 °C.
It has a total of 6 cores.
The cable is rated for a voltage of 300V.
The cable features a tin-plated copper conductor and a flame-retardant PVC jacket.
The cable is 50 meters long.
It is suitable for factory automation wiring, industrial Ethernet communications, and connections for sensors and actuators.
This cable complies with CE, CSA, and UL standards.
The outside diameter of the cable is 8.56 mm.
The minimum operating temperature is -30 °C.
Yes, it includes a braided tin-copper shield for mechanical protection and EMI shielding.
It supports long continuous runs from spools, making it suitable for large installations.
