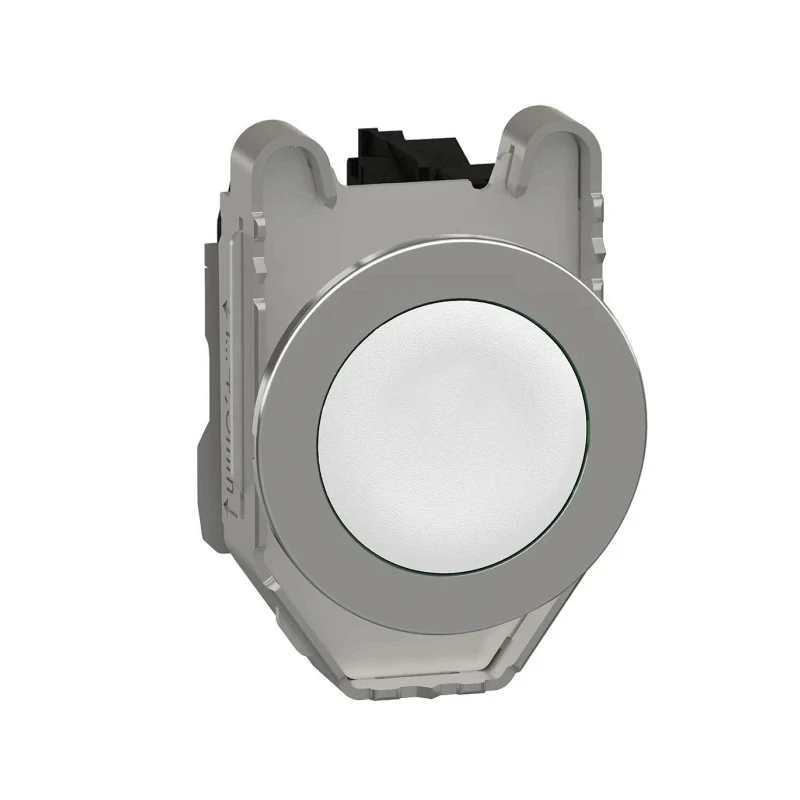

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPST, White LED XB4FA11

Schneider Electric XB4FA11 is a Harmony XB4 Series push button switch designed for panel mounting applications requiring a 30 mm cutout. Featuring a spring return mechanism with a round, white actuator and white LED, this switch is engineered for high reliability and ease of installation.

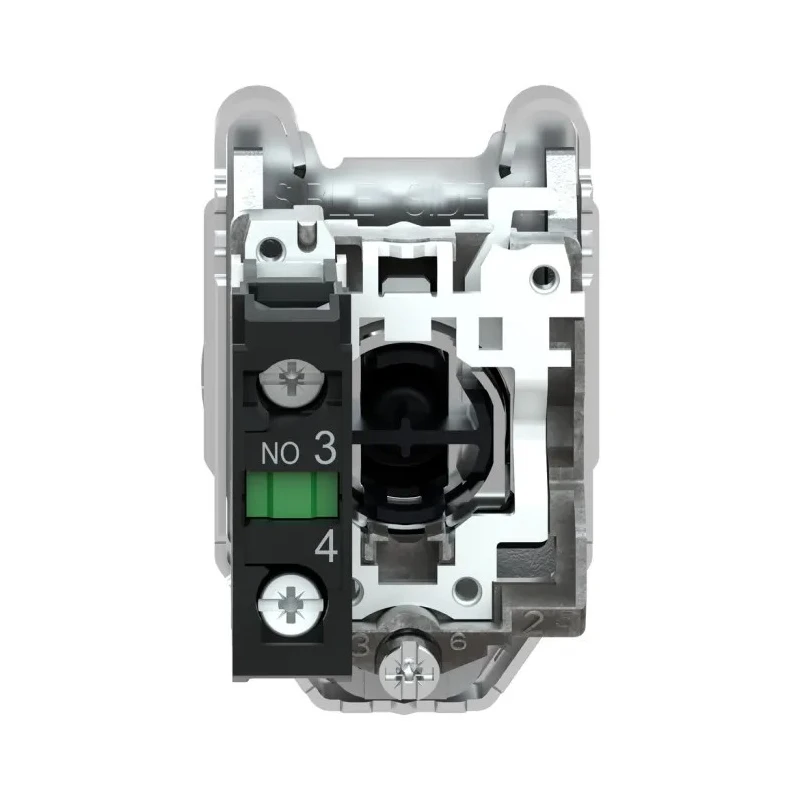

Its compatibility with multiple terminal types including screw clamps ensures flexibility in wiring methods. The switch is rated for a 6A contact current and supports both DC and AC voltages up to 600V, making it suitable for diverse industrial control circuits.

Equipped with robust protection ratings IP66, IP67, IP69, and IP69K, the push button is resistant to dust, moisture, and high-pressure water jets. It operates reliably within a wide temperature range from -40°C to 70°C, making it ideal for harsh environments such as mining, food and beverage processing, automotive manufacturing, and water treatment plants.

The flush-mounted design, chromium-plated bezel, and zamak fixing collar combine aesthetics with durability, ensuring the switch withstands high impact (IK06) and vibration during operation. Its ergonomic design enhances user comfort and operational safety.

This product is certified to multiple international standards such as CSA C22.2 No 14, EN/IEC 60947-5-1 and 5-4, UL 508, JIS C8201-5-1, and complies with marine and type 13/4X protection requirements.

The packaging contains one unit of the push button switch, which can be installed using a cross-head screwdriver. Its design prevents vibration and ensures secure mounting and wiring integrity. Accessories compatible with this product are available separately for panel customization and enhanced functionality.

This push button switch features a round white actuator with a spring return operation. Designed for panel installation with a 30 mm mounting diameter for easy setup. It offers IP66, IP67, IP69, and IP69K ratings ensuring high protection against dust and water.

The switch contact current is rated at 6 amperes, suitable for various industrial applications. Compatible with multiple connection types including screw clamp and connector terminals. Operating temperature range from -40°C up to 70°C for extreme environment usage.

Compliant with multiple international standards including EN/IEC, UL, CSA, and JIS approvals. Flush mount design enhances ergonomic use and appealing aesthetics in control panels. The product is repairable by the end user promoting sustainability and reduced downtime.

Compact dimensions of 47 mm height, 36.6 mm width, and 55 mm length make it suitable for constrained panel spaces.

This Push Button Switch is widely used across industrial, manufacturing, laboratory, HVAC, water treatment, and commercial applications for reliable, ergonomic control signaling and switching. Its durability and flexibility make it a preferred choice for varied industries seeking compliance with stringent standards and extended lifecycle products.
