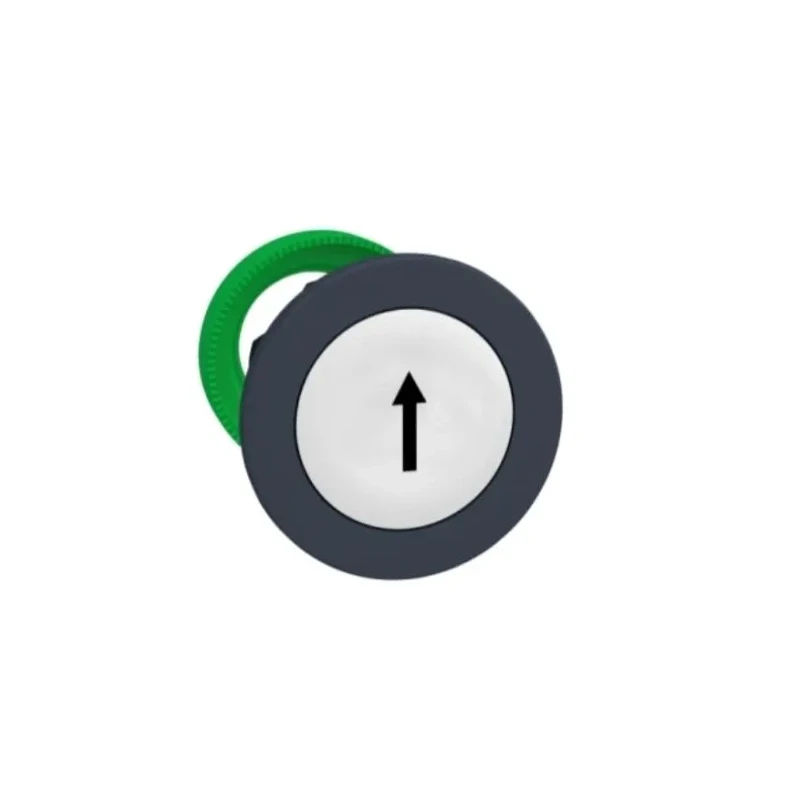

Schneider Electric Harmony Series White Momentary Push Button Head 30 mm Cutout IP69K IP67 IP66 ZB5FA334

Schneider Electric ZB5FA334 Harmony Series White Momentary Push Button Head is engineered with a 30 mm cutout diameter to provide dependable control solutions in demanding industrial settings. Rated IP69K, IP67, and IP66, this push button head offers excellent protection against dust, water ingress, and high-pressure cleaning, making it suitable for harsh environmental conditions.

Manufactured with high-quality plastic, the round white actuator features a 36.6 mm diameter and is marked with a black up arrow for clear operator guidance. The momentary action design ensures responsive and safe user control. The product includes an integrated body and fixing collar, enabling secure installation in control panels and equipment.

It meets stringent worldwide standards including EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, CE, UL 508, and JIS C8201 series, underscoring its quality and safety credentials. The actuator is built to operate reliably in temperatures ranging from -40°C to 70°C with high chemical robustness against cleaning solvents, alcohol, detergent, cutting oil, and milk, ensuring longevity even in food and beverage processing applications.

The design incorporates high vibration resistance with shake-proof terminal screws and multiple connection options such as screw clamp, connector, Faston connector, spring terminal, and printed circuit board termination. These features provide great flexibility for integration into various industrial control systems.

This push button head is suitable for a wide array of uses across industrial machinery, packaging lines, material handling systems, marine environments, building infrastructure, energy distribution panels, public works, restaurants, commercial buildings, and airports. The modular design simplifies customization with a large accessory set to meet diverse application requirements.

Constructed from durable plastic material ensuring long-lasting usage. Round white push button with a diameter of 36.6 mm and an up arrow marking for clear identification. Supports momentary push button actuation for precise control operations.

Includes body and fixing collar for secure mounting. Complies with rigorous standards including EN/IEC 60947 series, CSA C22.2 No 14, CE, UL 508, and JIS certifications. Operates within a temperature range from -40°C to 70°C, suitable for extreme environments.

High chemical resistance to solvents, detergents, alcohol, cutting oil, and milk. Designed for high vibration resistance with shake-proof terminal screws. Offers multiple connection types such as screw clamp, connector, Faston connector, spring terminal, and printed circuit board.

Ideal for industrial and infrastructure applications in challenging environments. Explore the extensive range of Schneider Electric Push Button Heads and components at EnvMart for reliable and customizable control solutions.
