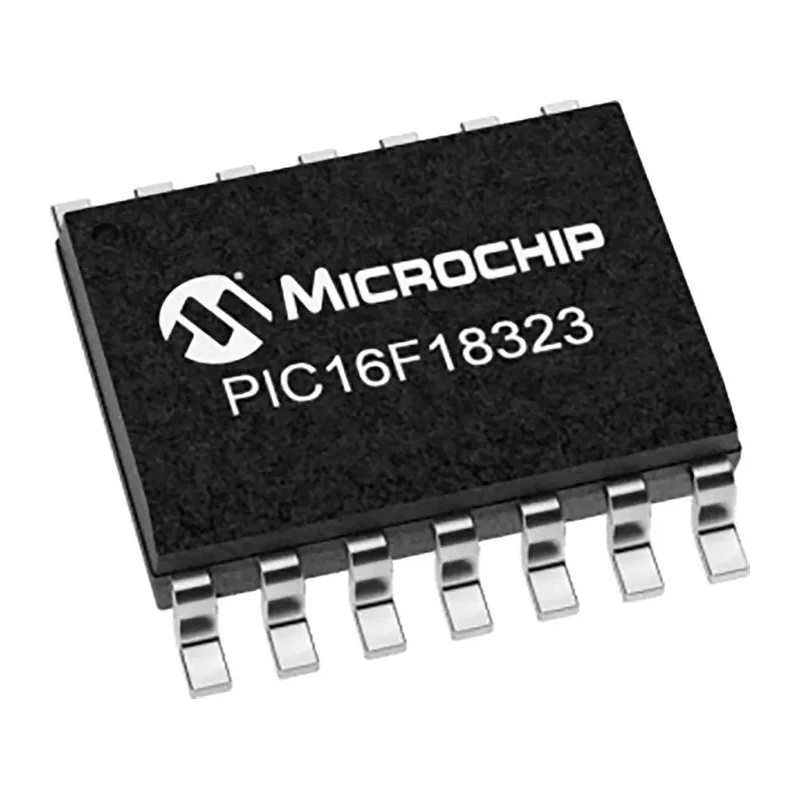

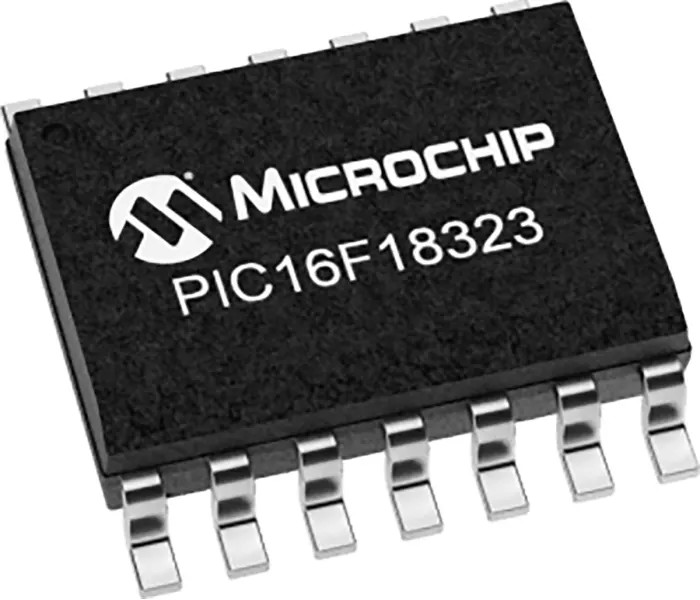

Microchip 8-bit PIC16F Microcontroller, 32 MHz, 3.5kB FLASH, 14-Pin SOIC PIC16F18323-E/SL

Microchip PIC16F18323-E/SL 8-bit PIC Microcontroller operates at 32 MHz with 3.5kB Flash memory in a compact 14-Pin SOIC package. This microcontroller is designed for a wide range of general purpose and low power applications, combining enhanced mid-range core architecture with extended analog and communication peripherals.

Its features include a RISC instruction set with 49 instructions and 16 stack levels, 256-bit RAM, and 12 programmable I/O pins. The device supports IDLE and DOZE modes for extreme low power consumption, ideal for battery-powered industrial and commercial devices.

Equipped with advanced analog peripherals, it houses an 11-channel 10-bit ADC with voltage reference, a 5-bit DAC, two analog comparators, numerically controlled oscillator, and configurable logic controllers to provide precise control in sensor interfacing and signal processing tasks.

Operates over a wide voltage range of 2.3 V to 5.5 V, with maximum power dissipation of 800 mW. Incorporates automotive-standard compliance AEC-Q100 ensuring robustness in harsh environments. Peripheral pin select and module disable features offer design flexibility and power saving.

Multiple timers including two 8-bit and one 16-bit timers plus extended watchdog timer allow accurate timing and system monitoring. Supports in-circuit serial programming (ICSP) facilitating in-system firmware updates and debugging.

Its small size with dimensions 8.65 mm length, 3.9 mm width, and 1.5 mm height makes it suitable for space-constrained applications in embedded systems, industrial automation, consumer electronics, and automotive controls.

The microcontroller is RoHS compliant and manufactured in Thailand, assuring quality and compliance with environmental standards. Explore further electronic components and Microcontrollers in the Semiconductor category on EnvMart for your advanced industrial and commercial electronics projects.
