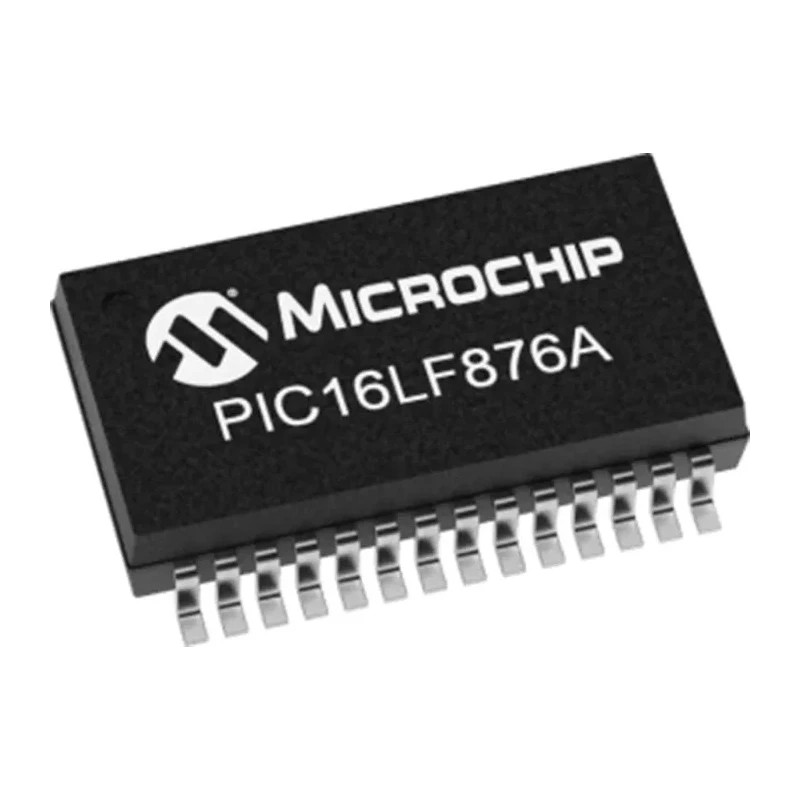

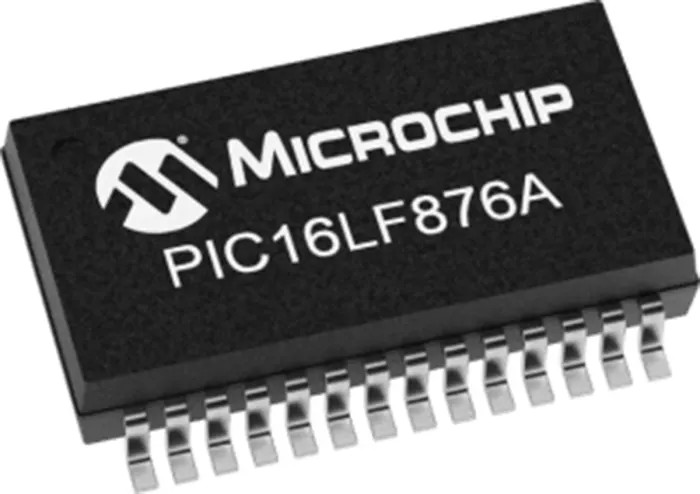

Microchip 8-bit PIC16LF Microcontroller 20 MHz 14.3kB FLASH 28-Pin SOIC PIC16LF876A-I/SO

Microchip PIC16LF876A-I/SO is a powerful yet easy-to-program 8-bit CMOS FLASH microcontroller featuring Microchip's PIC architecture. Operating at a maximum clock frequency of 20 MHz, it integrates 14.3kB of program memory allowing complex embedded system designs. This device includes 256 bytes of EEPROM data memory for non-volatile storage and 368 bits of RAM for fast data operations.

The 28-pin SOIC package supports surface mounting with compact dimensions of 18.08mm length, 7.59mm width, and 2.39mm height, optimized for space-constrained applications. Maximum power dissipation is rated at 800 mW, ensuring efficient energy management.

It offers versatile peripheral features such as 2 analog comparators, 5 channels of 10-bit Analog-to-Digital converters, 2 capture/compare/PWM modules, and a synchronous serial port configurable as either a 3-wire SPI or a 2-wire I²C bus. Additionally, its Universal Asynchronous Receiver Transmitter supports serial communication for embedded systems.

The microcontroller features 22 programmable input/output pins with 25mA sink/source capability per I/O, supporting flexible interfacing options. The device supports self-programming and In-Circuit Debugging (ICD), facilitating effective firmware development and updates.

Designed for robust operational conditions, it operates reliably in temperature ranges from -40°C to 85°C, catering to automotive, industrial, appliance, and consumer electronics applications. Its RISC architecture enables fast instruction execution at 200 nanoseconds per instruction using just 35 single word instructions.

Microchip PIC16LF876A-I/SO is RoHS compliant to meet environmental standards, making it suitable for modern manufacturing requirements. The device is ideal for applications requiring efficient analog and digital integration with versatile peripheral support.

Operates at 20 MHz clock frequency for quick processing. Includes 14.3kB FLASH program memory with EEPROM for flexible storage. Supports 5 channels of 10-bit ADC and 2 analog comparators. Provides 22 programmable I/O pins capable of 25mA sink/source.

Equipped with SPI, I2C, and USART communication interfaces. Operates within -40°C to 85°C temperature range for harsh environments. Compact 28-pin SOIC surface mount package with precise dimensions. Supports self-programming and In-Circuit Debugging (ICD).
