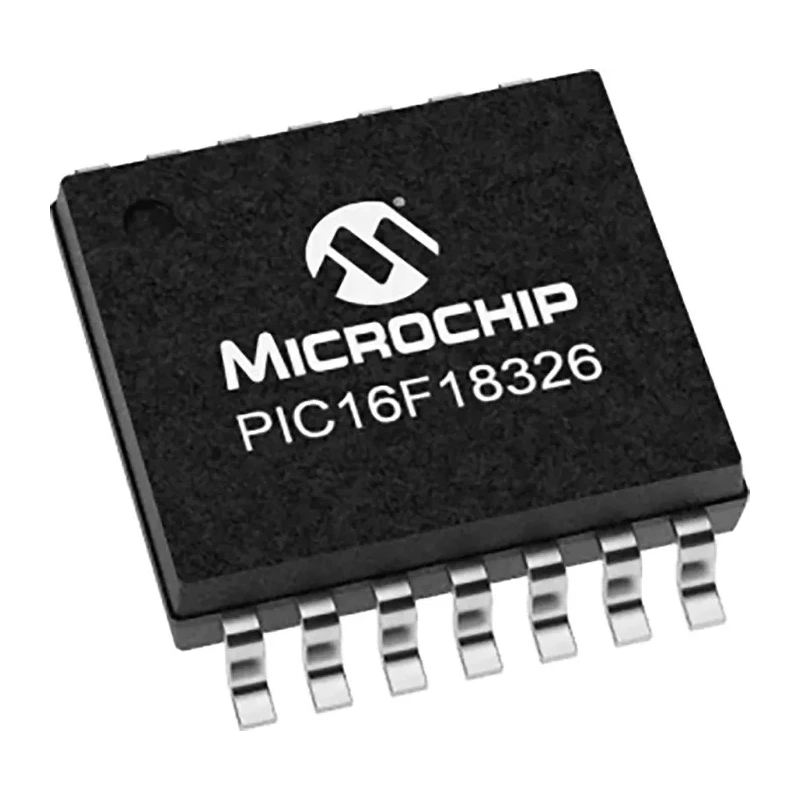

Microchip 8-bit PIC Microcontroller 28kB FLASH 32 MHz 14-Pin TSSOP PIC16F18326-I/ST
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | PIC16F18326-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features an enhanced mid-range 8-bit PIC core with 49 instructions and 16 stack levels.
- Equipped with 28kB of self-programmable FLASH memory and 2kB RAM.
- Operates over a wide voltage range from 2.3V to 5.5V suitable for diverse applications.
- Incorporates 11 channels of 10-bit ADCs, 1 5-bit DAC, and 2 analog comparators.
- Includes multiple timers, PWM modules, and core independent peripherals for flexible control.
- Comes in a compact 14-pin TSSOP surface mount package with dimensions 5.1mm x 4.5mm x 1.05mm.
- Offers extended industrial operating temperature range from -40°C to 85°C.
- Supports In-Circuit Serial Programming (ICSP) for easy firmware updates and debugging.
Product Description
Microchip PIC16F18326-I/ST is a high-performance 8-bit PIC microcontroller featuring a 28kB FLASH program memory and operating at a maximum clock frequency of 32 MHz. Designed for a wide range of general purpose and low power applications, it combines an enhanced mid-range core with advanced peripheral modules to deliver versatile functionality in a compact 14-pin TSSOP package.
This microcontroller integrates 12 programmable I/O pins, 11 channels of 10-bit Analog-to-Digital Converters (ADCs), a 5-bit Digital-to-Analog Converter (DAC), and 2 analog comparators providing extensive signal processing capabilities. The included timers (two 8-bit and one 16-bit), Pulse Width Modulation (PWM) modules, and Complementary Waveform Generator enable precise timing and control tasks essential for industrial, laboratory, and embedded systems applications.
Operating voltage range from 2.3V to 5.5V and low power states such as IDLE and DOZE contribute to energy-efficient designs. The device supports In-Circuit Serial Programming (ICSP) simplifying development and deployment cycles. Its robust design tolerates industrial temperature extremes from -40°C up to 85°C, suitable for harsh environments.
Compliant with RoHS environmental standards, the PIC16F18326-I/ST reinforces Microchip's commitment to sustainable, high-quality semiconductor products. It is ideal for applications including embedded control, industrial automation, consumer electronics, and communication devices requiring reliable 8-bit processing.
Features an enhanced mid-range 8-bit PIC core with 49 instructions and 16 stack levels. Equipped with 28kB of self-programmable FLASH memory and 2kB RAM. Operates over a wide voltage range from 2.3V to 5.5V suitable for diverse applications.
Incorporates 11 channels of 10-bit ADCs, 1 5-bit DAC, and 2 analog comparators. Includes multiple timers, PWM modules, and core independent peripherals for flexible control. Comes in a compact 14-pin TSSOP surface mount package with dimensions 5.1mm x 4.5mm x 1.05mm.
Offers extended industrial operating temperature range from -40°C to 85°C. Supports In-Circuit Serial Programming (ICSP) for easy firmware updates and debugging. Compliant with RoHS standards ensuring environmental safety.
Explore a wide selection of Microcontrollers and other semiconductor components on EnvMart for industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 28kB, utilizing FLASH memory technology.
This microcontroller operates over a voltage range from 2.3V to 5.5V.
It incorporates 11 channels of 10-bit Analog-to-Digital Converters (ADCs).
The dimensions of the TSSOP package are 5.1mm in length, 4.5mm in width, and 1.05mm in height.
It has an extended industrial operating temperature range from -40°C to 85°C.
This model provides 12 programmable I/O pins.
It includes two 8-bit timers and one 16-bit timer for timing and control tasks.
Yes, it supports In-Circuit Serial Programming (ICSP) for easy firmware updates and debugging.
The maximum power dissipation for the PIC16F18326-I/ST is 800mW.
It integrates 2 analog comparators for signal processing capabilities.
Yes, it is compliant with RoHS environmental standards.
