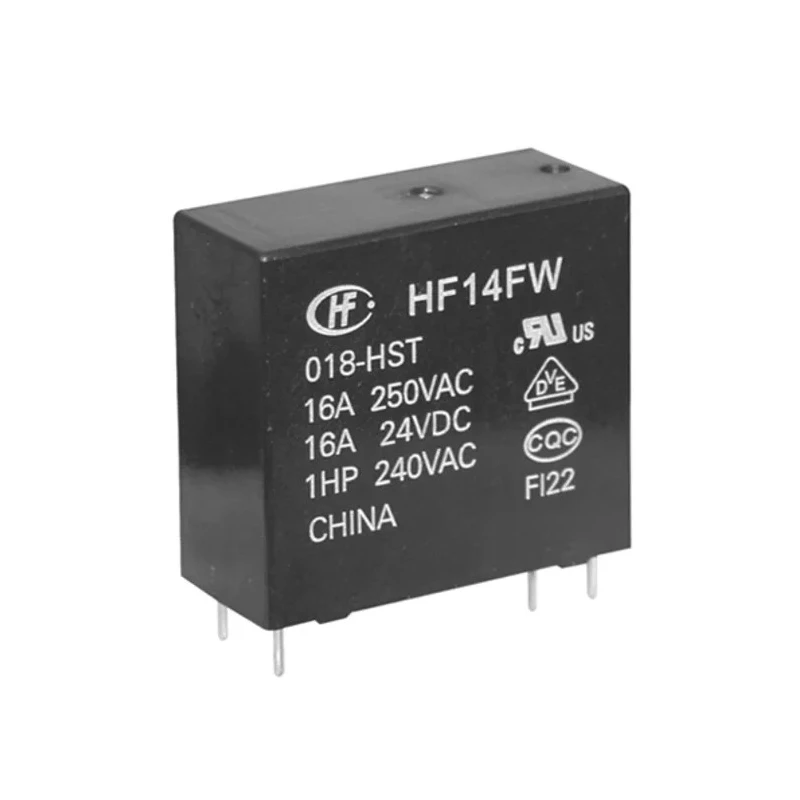

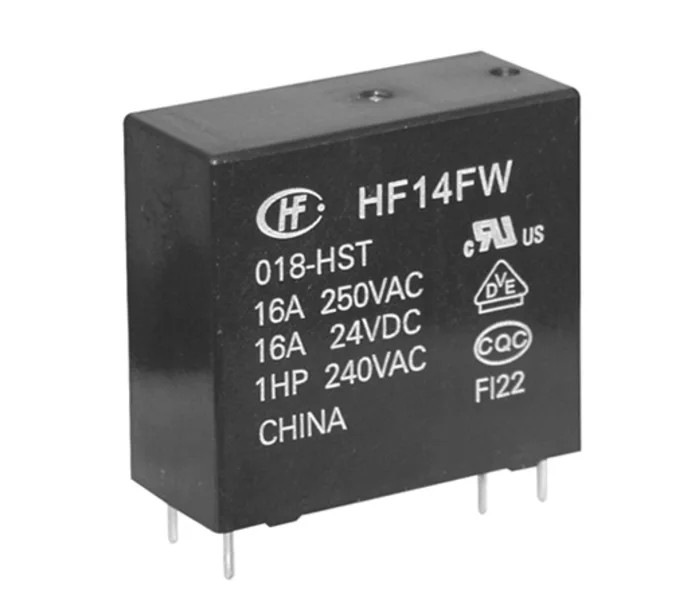

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 20A Switching Current SPST HF14FW/012-HPTF

Hongfa Europe GMBH HF14FW/012-HPTF PCB Power Relay is a robust electromagnetic relay featuring a 12V DC coil voltage and capable of switching currents up to 20A. It is designed as a single-pole single-throw (SPST) relay with silver alloy contacts that ensure reliable electrical conductivity and long service life.

This relay series HF14FW is optimized for PCB mounting with compact dimensions of 29mm in length, 26.5mm in height, and 13mm in width, making it ideal for space-constrained applications. The coil resistance of 200Ω and coil power consumption of 720mW provide efficient coil actuation while maintaining low energy usage.

The relay withstands operating temperatures from -40°C to 85°C, making it suitable for a wide range of environmental conditions in industrial and automation systems. Its high isolation voltage rating of 4kVAC between the coil and contacts enhances safety, protecting sensitive control circuits.

The contact arrangement is 1 Form A (SPST) with silver alloy contacts that minimize contact resistance to 50mΩ. It supports switching AC voltages up to 277V and DC voltages up to 30V, with a maximum switching power of 5.5kVA. The flux proof design ensures reliable performance under various conditions. This relay is RoHS compliant, confirming adherence to environmental standards.

Common applications include industrial automation control devices, automotive systems requiring robust switching components, and other electrical equipment where efficient, reliable switching is critical.

Overall, this Hongfa PCB power relay is an environmentally friendly, compact, and high-performance component designed for demanding industrial and commercial uses. It combines durability with precision switching capabilities.

Provides high power switching capability up to 480W DC load. Features a 1 Form A (SPST) contact configuration with silver alloy contacts. Operates in a wide temperature range from -40°C to 85°C. Coil resistance is 200 ohms ensuring efficient operation at 720mW coil power.

Compact dimensions are 29mm length, 26.5mm height, and 13mm width suitable for PCB mounting. Offers 4kVAC isolation voltage between coil and contacts improving safety and reliability. Silver alloy contact material ensures low contact resistance of 50mΩ for enhanced electrical performance.

Suitable for use in industrial, automation, and electrical control applications. RoHS compliant environmental friendly product with flux proofed design. Browse the Electronics & Electricals category for more Power Relay products and components suitable for your industrial and automation needs at EnvMart.
