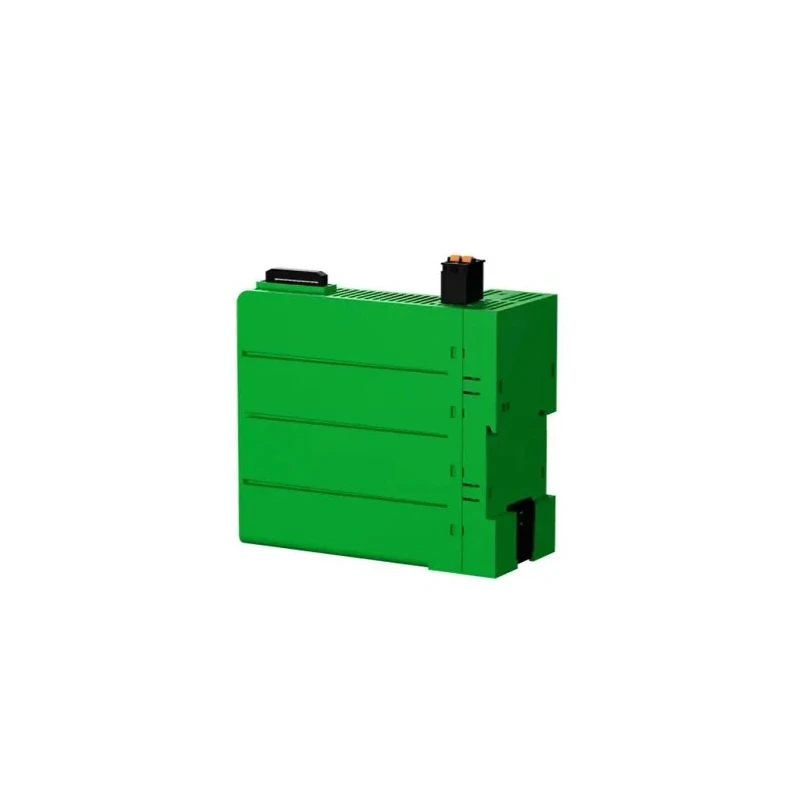

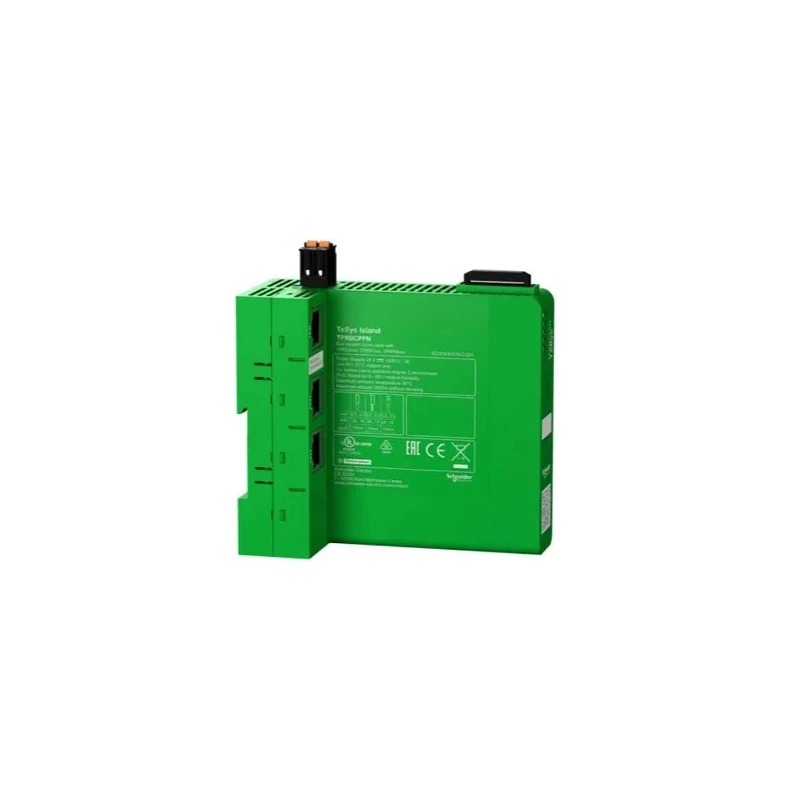

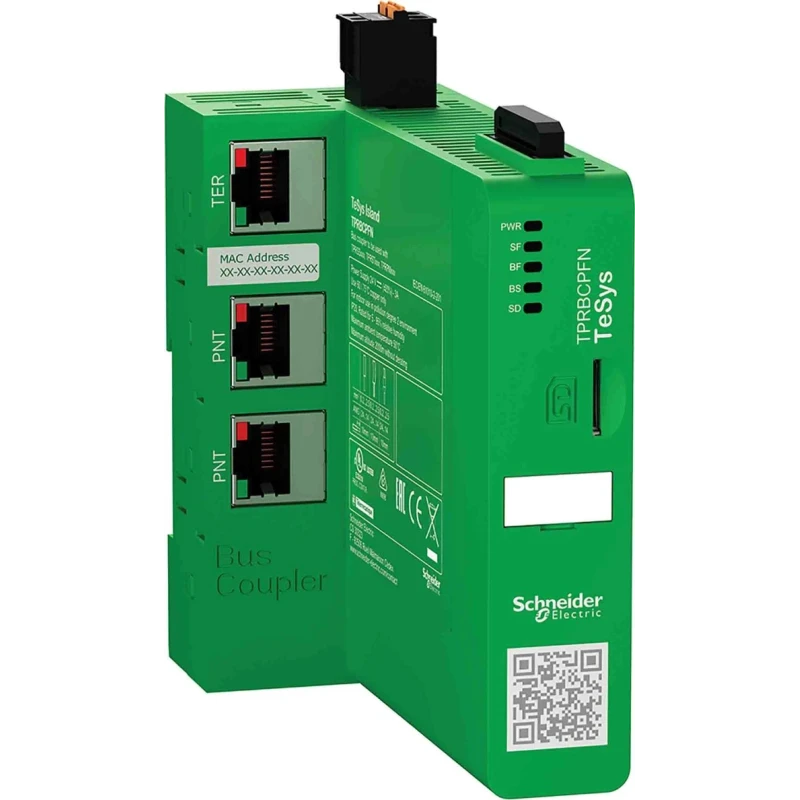

Schneider Electric TPRBC Series Bus Coupler 24V TPRBCPFN

Schneider Electric TPRBCPFN Bus Coupler 24V is an advanced automation component designed for use within the TeSys Island series, providing integral connectivity for controlling electrical loads and motors up to 80 A (AC-3) or 37 kW (40 hp). The bus coupler acts as the central connection hub between groups of starters and an automation controller, allowing efficient communication and power distribution in industrial automation systems.

This bus coupler supports integration with SoMove software for full island control and requires only a single 24V DC power supply to manage the entire island. It features dual fieldbus ports enabling communication via Profinet IO and Ethernet TCP/IP protocols, plus a dedicated service port with an embedded web server to facilitate maintenance and diagnostics.

The device is compatible with a broad range of TeSys Island modules including TPRST motor starters, TPRSS SIL motor starters, and TPRPM power modules, as well as TPRSM SIL, TPRVM voltage, analog (TPRAN), and digital IO (TPRDG) modules, providing versatility for various automation needs.

Its DIN rail mount configuration ensures easy installation within electrical control panels, accompanied by spring-type terminals for robust wiring connections. Local signaling is accomplished through LEDs that indicate operational status in green, yellow, and red colors, enhancing visual monitoring. The bus coupler includes reverse polarity protection on its power supply input, safeguarding against wiring errors.

This product complies with international safety and quality standards including EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and EN/IEC 60947-4-1, ensuring reliable and safe operation within demanding industrial environments.

Supports up to 20 modules in a complete island management setup. Equipped with Profinet IO communication port for seamless fieldbus interfacing. Features 2 RJ45 female connectors for Profinet IO protocol communication. Includes one RJ45 female Ethernet TCP/IP service port and an integrated micro SD card port.

Designed for 24 V DC supply with reverse polarity protection. Compatible with TPRST SIL motor starter, TPRSS SIL motor starter, and various interface and IO modules. Local signalling via green, yellow, and red LEDs for operational status indication.

DIN rail mount type for easy installation in industry control panels. Meets standards EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and EN/IEC 60947-4-1.

The Schneider Electric TPRBCPFN Bus Coupler is ideally suited for industrial automation applications including manufacturing, Process Control, and safety IO modules integration. Its robust design facilitates automation system expansion and efficient motor load management, helping industries achieve enhanced operational reliability and Industry 4.0 compliance.
