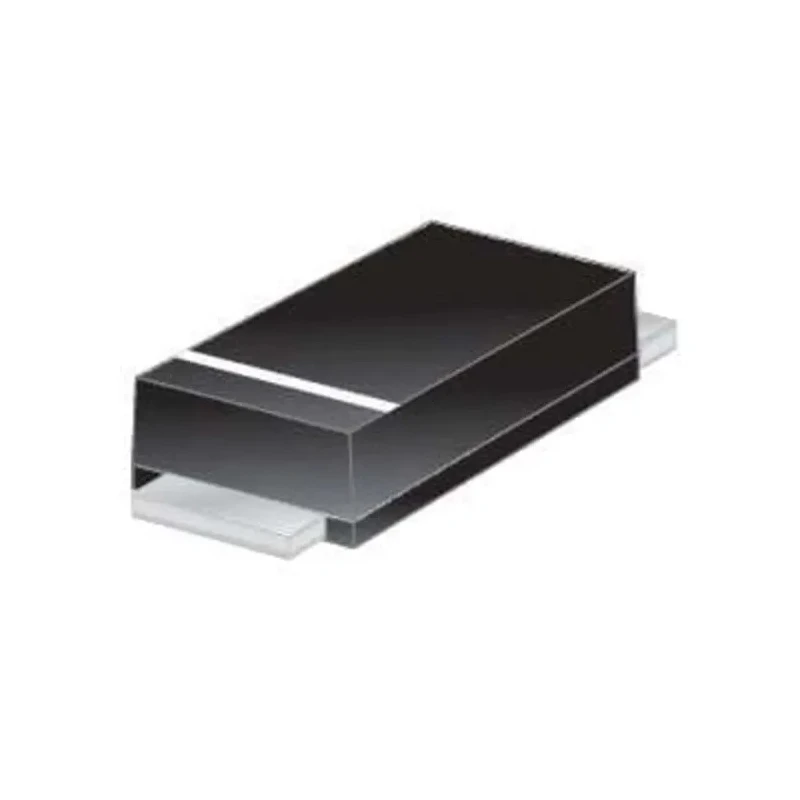

DiodesZetex Schottky Barrier Diode Low Leakage 40 V 3 A Surface Mount SMAF B340AF-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 4.6mm |
| Model | B340AF-13 |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | B340AF |
| Maximum Operating Temperature | 150°C |
| Package Type | SMAF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Low Leakage |
| Peak Reverse Current Ir | 200nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- The diode features a low forward voltage drop of 500 mV for improved efficiency.
- It is designed in a 2-pin SMAF package suitable for compact surface mounting.
- The device operates reliably over a temperature range from -55°C to 150°C.
- With a peak non-repetitive forward surge current of 80 A, it handles high transient loads.
- It conforms to the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
- The diode has compact dimensions of 4.6 mm length, 2.95 mm width, and 1.1 mm height.
- The peak reverse current is only 200 nA, indicating very low leakage characteristics.
Product Description
DiodesZetex B340AF-13 is a Schottky Barrier Diode designed for surface mounting in an SMAF package. It features a maximum continuous forward current rating of 3 A and a peak reverse repetitive voltage of 40 V, making it suitable for efficient rectification tasks.
This diode exhibits a low forward voltage drop of 500 mV, contributing to reduced power loss and enhanced thermal performance. The device's low leakage current, with a peak reverse current of only 200 nA, ensures minimal power dissipation in high-sensitivity applications.
Constructed to operate across a wide temperature range from -55°C to 150°C, the diode is compliant with AEC-Q101 automotive standards, providing reliability required in demanding automotive and industrial environments.
The compact SMAF package dimensions - 4.6 mm length, 2.95 mm width, and 1.1 mm height - allow for efficient use of PCB space in high-density circuit designs. The diode supports a peak non-repetitive forward surge current of 80 A, suitable for transient load conditions.
Schottky diodes like the B340AF-13 are widely used in power supply circuits, photovoltaic systems, and high-frequency switching applications due to their fast switching capability and low forward voltage drop.
The diode features a low forward voltage drop of 500 mV for improved efficiency. It is designed in a 2-pin SMAF package suitable for compact surface mounting. The device operates reliably over a temperature range from -55°C to 150°C.
With a peak non-repetitive forward surge current of 80 A, it handles high transient loads. It conforms to the automotive standard AEC-Q101, ensuring high reliability for automotive applications. The diode has compact dimensions of 4.6 mm length, 2.95 mm width, and 1.1 mm height.
The peak reverse current is only 200 nA, indicating very low leakage characteristics.
This product is ideal for use in industrial, automotive, and electronic manufacturing sectors. For detailed circuit design and integration, technical documents and certificates of compliance are available for download.
Explore the full range of semiconductor components and Schottky Diodes in EnvMart to find compatible parts for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this diode is 3 A.
The peak reverse repetitive voltage for the B340AF-13 is 40 V.
This model features a low forward voltage drop of 500 mV.
The compact SMAF package dimensions are 4.6 mm in length, 2.95 mm in width, and 1.1 mm in height.
The diode can handle a peak non-repetitive forward surge current of 80 A.
It operates reliably over a temperature range from -55°C to 150°C.
The peak reverse current is only 200 nA, indicating very low leakage characteristics.
Yes, it conforms to the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
This model is designed for surface mounting.
The diode configuration is single, making it suitable for various rectification tasks.
It is classified as a low leakage rectifier, contributing to minimal power dissipation in sensitive applications.
The country of origin for this diode is India.
