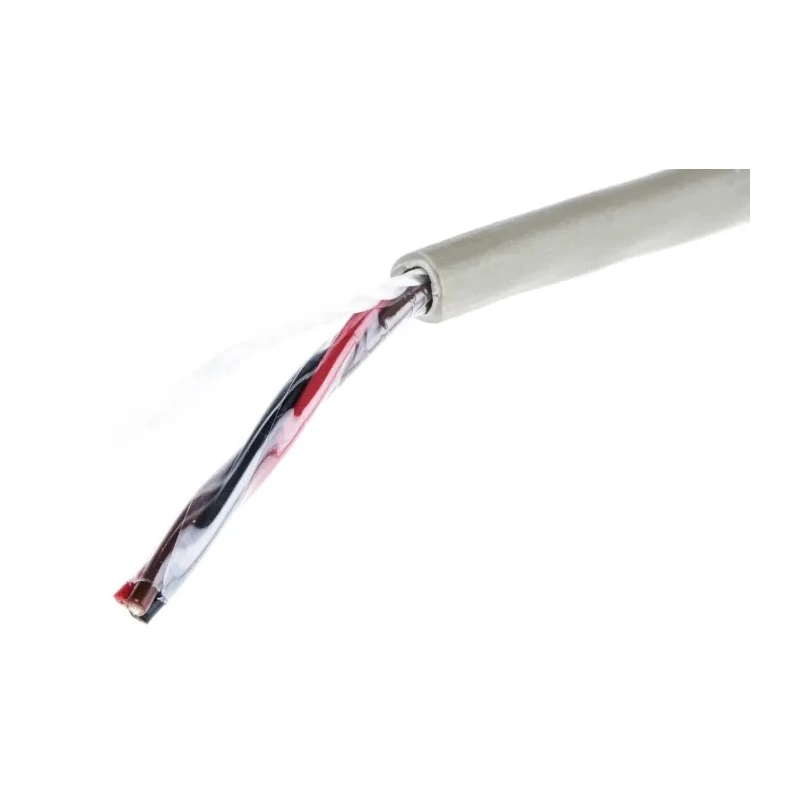

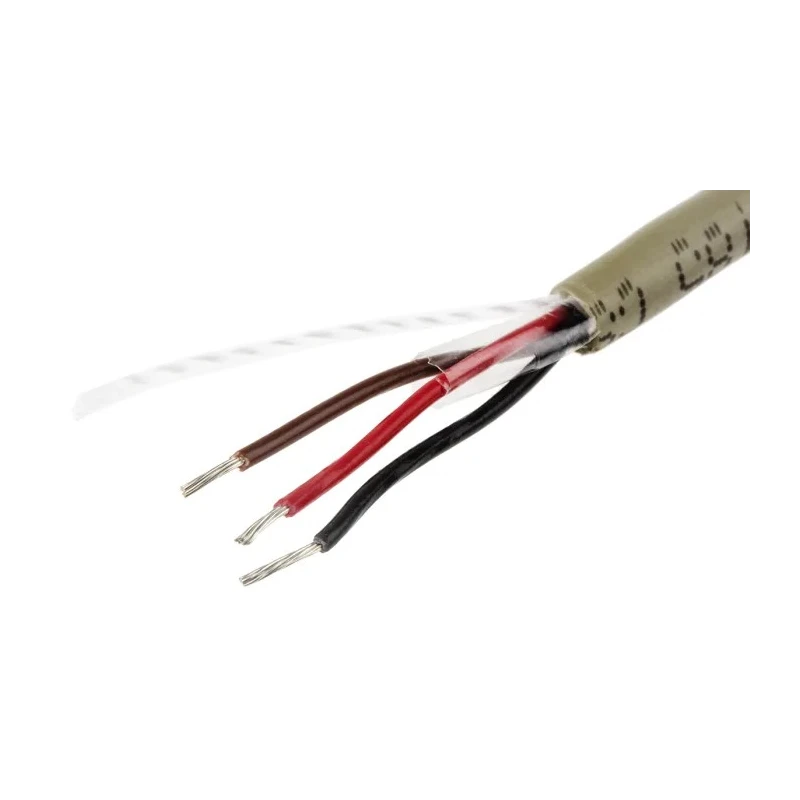

Alpha Wire Pro-Tekt Series 3-Core 0.14 mm² Data Cable 50 m, Grey Polyvinyl Chloride Sheath B952031 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.14mm² |
| Model | B952031 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 3.84mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.151 inch (3.84 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.16mm |
| Size of Strands | 0.16mm |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/34 |
Key Features
- Comprises three stranded tinned copper conductors color coded black, brown, and red.
- Offers a durable grey polyvinyl chloride jacket with flame retardant properties.
- Designed for operating temperatures from -30°C to +105°C.
- Nominal diameter of 3.84 mm with 7 strands of 0.16 mm per conductor for flexibility.
- Rated for 300 V voltage applications suitable for industrial power and data transmission.
- Stranding configuration is 7/34 with insulation thickness of 0.25 mm for enhanced durability.
- Certified under CE, CSA, and UL standards ensuring compliance and safety.
- Flame retardant jacket and insulation materials provide excellent abrasion and oil resistance.
Product Description
Alpha Wire B952031 GE321 Pro-Tekt Series Data Cable is a 3-core cable constructed with stranded tinned copper conductors. It features a 0.14 mm² cross sectional area and a grey polyvinyl chloride (PVC) jacket designed for high-performance, durability, and flexibility in industrial environments.
This cable supports an operating voltage of 300 V and functions reliably in temperature conditions ranging from -30°C to +105°C. The PVC sheath is flame retardant, oil resistant, and UV resistant, making it ideal for tough working conditions.
The conductors are color-coded black, brown, and red, each consisting of 7 strands of 0.16 mm diameter wires. Its compact nominal diameter of 3.84 mm and jacket thickness of 0.81 mm allow for space-efficient installation even in constrained environments.
Certified to meet CE, CSA, and UL standards, this cable ensures compliance with international safety requirements. The Pro-Tekt range caters specifically to demanding industrial applications such as automation, medical instrumentation, aerospace, petrochemical, and commercial electronics sectors.
The cable is unshielded which allows use in controlled environments with low electromagnetic noise. It also offers variations with different shielding options for electromagnetic interference resistance.
Comprises three stranded tinned copper conductors color coded black, brown, and red. Durable grey polyvinyl chloride flame retardant jacket. Operating temperature range from -30°C to +105°C. Nominal overall diameter of 3.84 mm and jacket thickness of 0.81 mm.
Certified under CE, CSA, and UL standards for safety and quality. Ideal for industrial automation, aerospace, medical devices, and petrochemical use. Offers flexibility with stranded conductor design and multiple shielding options.
Supports operating voltage rating of 300 V. Designed for demanding European industrial markets requiring robust, reliable data cable solutions. Explore more high-quality Data Cables and electrical products on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is +105°C.
The nominal diameter of this cable is 3.84 mm.
This cable comprises three stranded tinned copper conductors, color-coded black, brown, and red.
This model is certified under CE, CSA, and UL standards, ensuring compliance with safety requirements.
The cable is rated for 300 V voltage applications.
The insulation thickness of the conductors is 0.25 mm.
This model has a length of 50 meters.
The minimum operating temperature for this cable is -30°C.
The jacket material is made of grey polyvinyl chloride (PVC).
This data cable has three cores.
The stranding configuration of the conductors is 7/34, with each conductor consisting of 7 strands of 0.16 mm.
Yes, this cable is designed for demanding industrial applications such as automation, medical instrumentation, aerospace, and petrochemical sectors.
