Honeywell GLB Series Rod Limit Switch, 1 NO/1 NC, , Die Cast Zinc Housing, 600V AC, 10A IP67

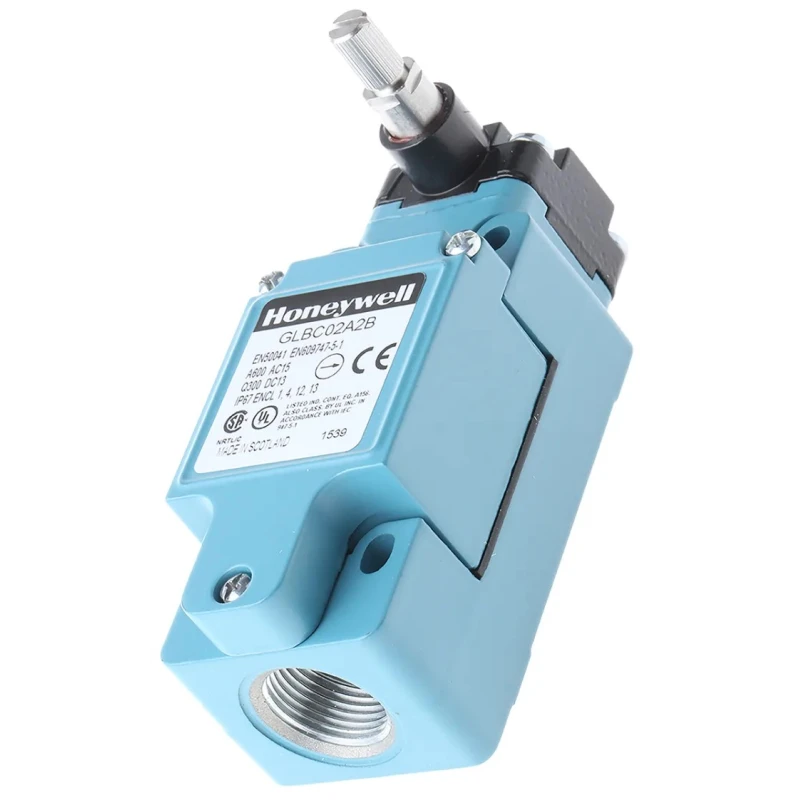

Honeywell Technologies GLBC02A2B is a rod actuator limit switch designed for precise position sensing and robust industrial control applications. It features a die cast zinc body with electrostatic epoxy coating providing enhanced corrosion resistance and ruggedness suitable for harsh environments.

This limit switch offers a contact configuration of 1 normally open and 1 normally closed snap-action contact, rated for a switching current of 10 amps at 600 volts AC. It supports switching voltages up to 250 volts DC and complies with international safety standards including CCC, CE, CSA, and UL.

Designed with IP67 ingress protection, the switch remains reliably sealed against dust and water, enabling usage in wet or dusty manufacturing and processing conditions. Its mechanical life extends to 15 million operations, ensuring long-term performance in continuous cycling industrial applications. The operating temperature range of -25 to 85 degrees Celsius accommodates diverse environmental conditions common in factory automation and machine safety applications.

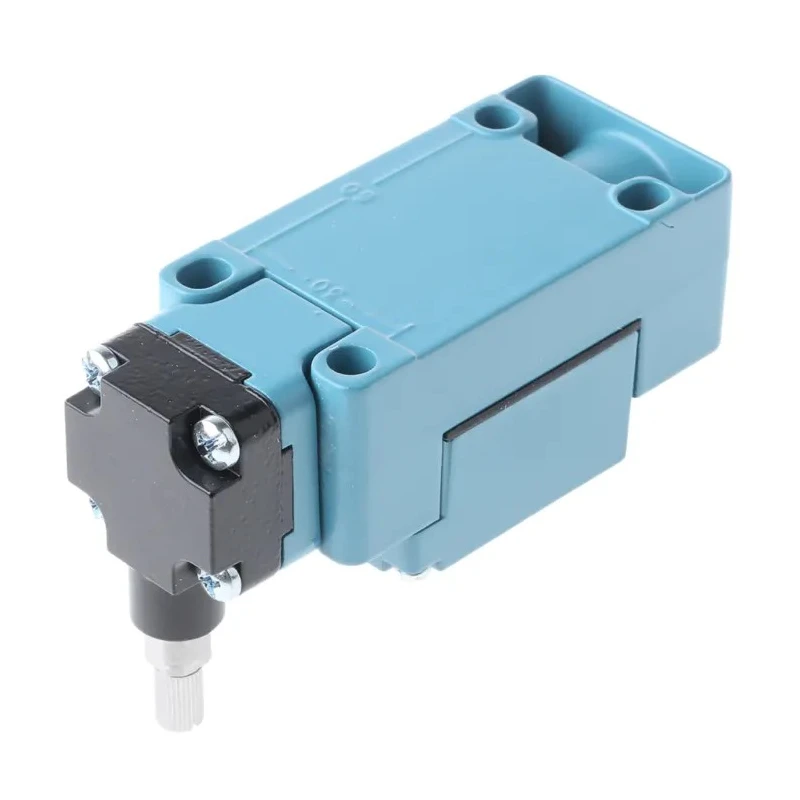

The rod actuator provides linear motion sensing capability, permitting side or end mounting for flexibility in installation. A 20 mm M20 conduit entry facilitates integration with standard industrial trunking systems for wiring protection.

This model is ideal for applications such as conveyor travel endpoints, machine safety interlocks actuated by plungers or cams, repetitive position sensing in packaging lines, valve position feedback in process plants, and indexing control in automated assembly machinery.

Robust die cast zinc housing with electrostatic epoxy coating for durability and corrosion resistance. Contact configuration of 1 NO and 1 NC with snap-action type contacts rated at 600V AC and 10A current. IP67 ingress protection rating for use in harsh, wet, and dusty environments.

Mechanical life expectancy of up to 15 million operations ensures reliable long-term use. Wide operating temperature range of -25 to 85 °C suits harsh industrial settings. Low actuation torque of 0.33 Nm lowers the force needed to operate.

M20 conduit entry for standard industrial cable installations. Flexible mounting orientation for side or end actuation with rod actuator. Compliance with international standards: CCC, CE, CSA, UL, IEC/EN 60947-5-1. Explore the full range of Honeywell Limit Switches and industrial switches on EnvMart for comprehensive automation solutions.
