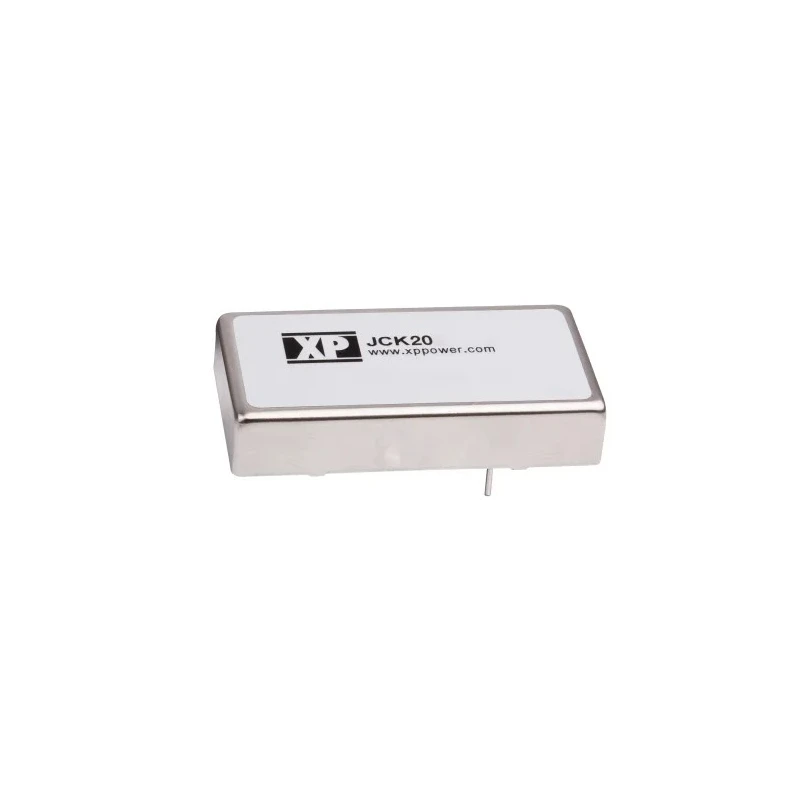

XP Power DC/DC Converter 5V DC 4A 36V Input 18V Input 20W Through Hole JCK2024S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 5V dc/ 4 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 93% |
| Length | 50.8mm |
| Model | JCK2024S05 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 680000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 4A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This converter offers a high efficiency of 93% ensuring minimal energy loss.
- It provides 1600V DC isolation for safe and reliable operation.
- The compact design includes 6 pins and measures 50.8mm length, 25.4mm width, and 10.2mm depth.
- The unit has a mean time between failures (MTBF) of 680,000 hours indicating high reliability.
- Designed for board mount applications with remote on/off control available.
- Suitable for industrial and electronic power management use in harsh environments.
Product Description
XP Power JCK2024S05 is an isolated DC/DC converter providing a regulated 5V DC output at 4A within a 20W power rating. The device supports an input voltage range from 18V to 36V and features a through-hole DIP package, making it compatible with standard PCB mounting techniques. Operating temperature extends from -40°C to +100°C, offering robust performance in demanding industrial conditions.
This converter features a high efficiency rate of 93%, aiding energy conservation and thermal management. It includes an isolation voltage rating of 1600V DC, enhancing circuit safety and noise immunity in sensitive electronic applications. The product has a mean time between failures (MTBF) of 680,000 hours, demonstrating long-term reliability and durability.
The compact form factor measures 50.8mm in length, 25.4mm in width, and 10.2mm in depth, featuring 6 pins for electrical connectivity and a 2:1 input voltage ratio. Remote on/off capability allows flexible control in embedded electronic systems. This DC/DC converter is ideal for industrial, manufacturing, telecommunications, and power supply unit applications requiring efficient voltage regulation and isolation.
High efficiency of 93% reduces power loss. 1600V DC isolation voltage for enhanced safety. Wide input range from 18V to 36V with 2:1 input ratio. Through-hole DIP package for board mount compatibility. Operating temperature from -40°C to 100°C ensures suitability for harsh environments.
680,000 hours MTBF for reliable long-term operation. Compact size with 6 electrical pins for integration.
XP Power's JCK series DC/DC converters are engineered for reliability and performance, suitable for power supplies, industrial controls, and other electronic equipment requiring efficient voltage conversion and electrical isolation.
Explore more power supply components and industrial electronic solutions from XP Power and the broad EnvMart catalog.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output of 5V DC at a maximum current of 4A, with a total output power rating of 20W.
The converter supports an input voltage range from 18V to 36V, allowing for a 2:1 input voltage ratio.
It has a high efficiency rating of 93%, which helps minimize energy loss during operation.
The dimensions of this unit are 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
The converter features an isolation voltage rating of 1600V DC, enhancing safety and noise immunity in circuits.
It has a mean time between failures (MTBF) of 680,000 hours, indicating a high level of reliability.
This converter operates effectively within a temperature range of -40°C to 100°C, making it suitable for harsh environments.
It is designed for through-hole mounting, compatible with standard PCB mounting techniques.
Yes, it includes remote on/off control capability, allowing for flexible operation in embedded systems.
It is suitable for industrial, manufacturing, telecommunications, and power supply unit applications requiring efficient voltage regulation and isolation.
This unit features 6 pins for electrical connectivity.
The JCK2024S05 comes in a DIP package type, which is standard for board mount applications.
