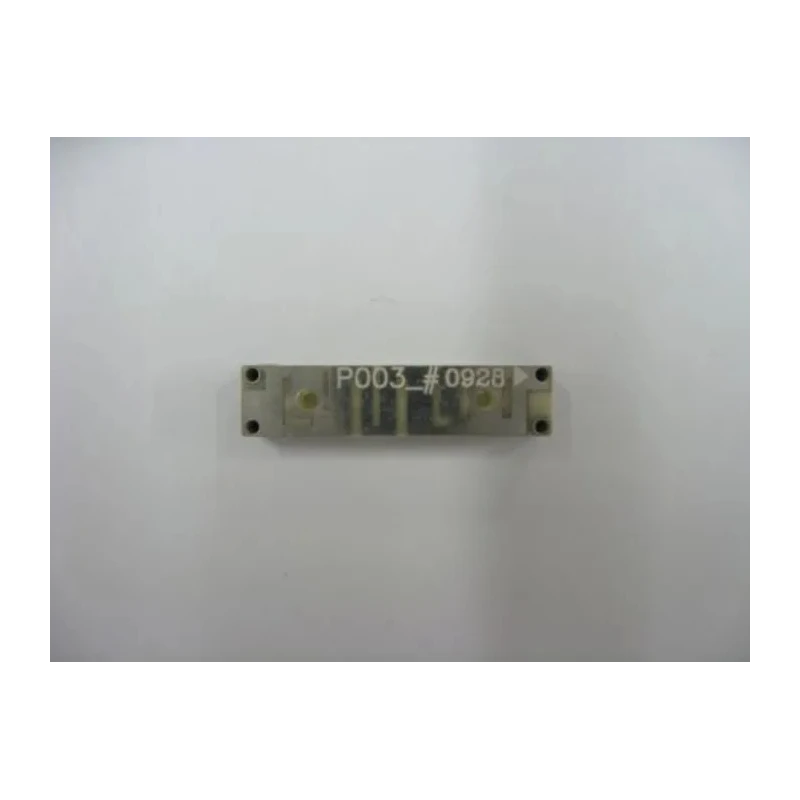

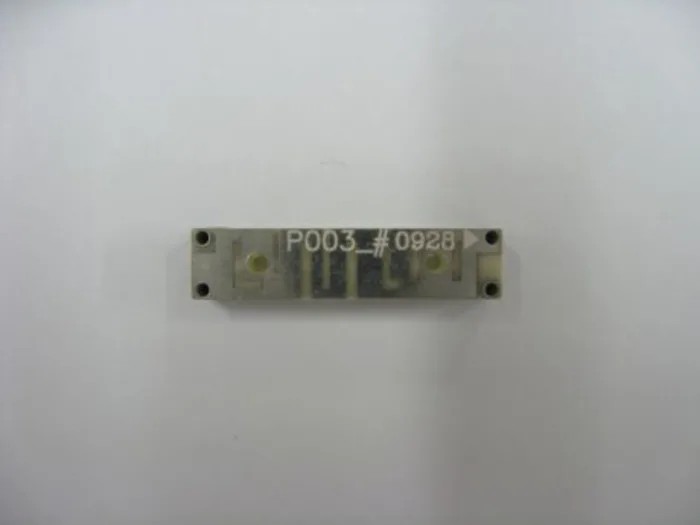

CTi Internal SMT Antenna Internal Board GSM DCS PCS UMTS Bands 5.52dBi Gain CTI-AMMAP003
Specifications
| Country of Origin | India |
|---|---|
| Brand | CTi |
| Model | CTI-AMMAP003 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Polarization | Linear |
| Gain | 5.52dBi |
| Internal/External | Internal |
| VSWR | 3.0 1 max |
| VSWR 3.0 | 1 max |
| Azimuth Beam Pattern | Omni-directional |
Key Features
- Compact internal SMT antenna suitable for embedded applications.
- Supports multi-band GSM, DCS, PCS, and UMTS frequencies.
- Omni-directional azimuth beam pattern for consistent signal coverage.
- Impedance matched at 50 ohms to ensure efficient signal transmission.
- Linear polarization for reliable data and voice communication.
- Operational temperature range from -35°C to 85°C ensures durability in diverse environments.
- Complies with industry standards but no specific external certifications.
Product Description
CTi CTI-AMMAP003 Internal SMT Antenna is a compact antenna board designed for embedded applications requiring multi-band support including GSM, DCS, PCS, and UMTS cellular networks. It features a gain of 5.52dBi and an omni-directional azimuth beam pattern, ensuring consistent signal reception and transmission across intended frequency bands. This antenna maintains a linear polarization and an impedance of 50 ohms, optimizing signal quality and reducing interference.
Engineered to operate reliably within a temperature range of -35°C to 85°C, this antenna is suitable for industrial, telecommunications, and electronic assembly applications where internal antenna integration is essential. The maximum Voltage Standing Wave Ratio (VSWR) is maintained at 3.0:1, reducing signal reflection for efficient performance. While it is not certified under specific standards, the antenna design complies with industry requirements for SMT internal antenna boards.
Its compact form factor and robust operating temperature range make it suitable for consumer electronics, industrial communication devices, smart metering, and telemetry systems. This antenna supports vital cellular bands, enabling effective data and voice communication. The CTI-AMMAP003 is an essential component for OEMs and system integrators developing multi-band cellular devices requiring reliable internal antenna solutions.
Compact internal SMT antenna suitable for embedded applications. Supports multi-band GSM, DCS, PCS, and UMTS frequencies. Omni-directional azimuth beam pattern for consistent signal coverage. Impedance matched at 50 ohms to ensure efficient signal transmission.
Linear polarization for reliable data and voice communication. Operational temperature range from -35°C to 85°C ensures durability in diverse environments. Maximum VSWR of 3.0:1 to minimize signal reflection and loss. Complies with industry standards but no specific external certifications.
Explore more high-quality Antennas and electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CTI-AMMAP003 antenna has a gain of 5.52dBi, optimizing signal quality for cellular communications.
This model supports multi-band GSM, DCS, PCS, and UMTS frequencies, making it suitable for various cellular applications.
The CTI-AMMAP003 features linear polarization, which is essential for reliable data and voice communication.
The maximum Voltage Standing Wave Ratio (VSWR) for this antenna is 3.0:1, which helps minimize signal reflection.
This antenna has an omni-directional azimuth beam pattern, ensuring consistent signal coverage across its supported frequency bands.
Yes, this model is specifically designed for embedded applications, making it ideal for integration into various devices.
The antenna is impedance matched at 50 ohms, which ensures efficient signal transmission and reduces interference.
The CTI-AMMAP003 antenna is manufactured in India.
This antenna is suitable for applications in consumer electronics, industrial communication devices, smart metering, and telemetry systems.
The specific dimensions and weight of the CTI-AMMAP003 are not provided in the available data.
While the design of this antenna complies with industry standards, it does not have specific external certifications.
