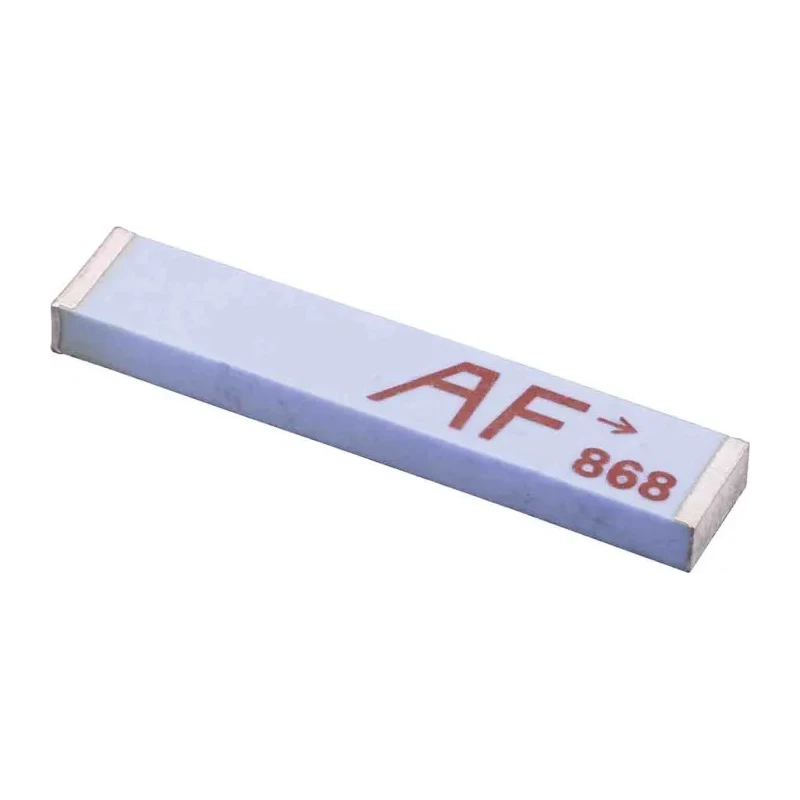

Linx Internal SMT Antenna ISM Band 863-873MHz 0.5dBi Gain LTCC Surface Mount Solder Connection ANT-868-CHP-T
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Linx |
| Model | ANT-868-CHP-T |
| Connection Type | Solder |
| Bandwidth | 10MHz |
| Series | CHP |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Gain | 0.5dBi |
| Standards/Approvals | RoHS Compliant |
| Maximum Frequency | 873MHz |
| Minimum Frequency | 863MHz |
| Internal/External | Internal |
| RF Protocols | ISM Band |
| Antenna Physical Form | Chip |
| Antenna Mount Type | Surface |
| Antenna Internal Construction | LTCC |
| Number of Bands | 1 |
Key Features
- This chip antenna uses advanced low temperature co-fired ceramic LTCC technology.
- It features a compact internal SMT form factor for easy PCB integration.
- Compatible with ISM band wireless protocols including Bluetooth and Zigbee.
- Operates reliably in a temperature range from -40°C to 85°C.
- It offers low loss and 50Ω characteristic impedance for efficient signal transmission.
- Surface mount solder connection allows robust and easy assembly on PCBs.
- The antenna is RoHS compliant to meet environmental standards.
- Manufactured in Taiwan, Province Of China ensuring high quality.
Product Description
Linx ANT-868-CHP-T is an internal SMT antenna designed specifically for ISM band applications between 863MHz and 873MHz. This antenna employs state-of-the-art LTCC (Low Temperature Co-fired Ceramic) technology to achieve a compact chip form with high efficiency, delivering a gain of 0.5dBi.
The antenna is optimized for embedding into wireless products including Bluetooth, 802.11, Zigbee, and other common standards operating in the ISM frequency band. It offers a bandwidth of 10MHz and maintains a characteristic impedance of 50Ω to ensure maximum signal integrity with minimal loss.
With a surface mount type and solder connection, the ANT-868-CHP-T antenna is easily integrated onto PCBs, making it suitable for compact and lightweight device designs. Its operational temperature range from -40°C to 85°C supports usage across various demanding industrial, laboratory, and commercial environments.
The product is RoHS compliant, reflecting an environmentally responsible manufacturing process. Manufactured in Taiwan, Province Of China, this antenna meets high quality and reliability standards.
This chip antenna uses advanced LTCC technology for superior performance. Compact internal SMT form factor for easy PCB integration. Compatible with ISM band wireless protocols including Bluetooth and Zigbee. Wide operating temperature range from -40°C to 85°C.
Offers low loss and 50Ω characteristic impedance for efficient transmission. Surface mount solder connection for robust assembly. RoHS compliant ensuring environmentally safe production. Manufactured in Taiwan, Province Of China with strict quality control.
This antenna is ideal for industrial communications, IoT devices, wireless sensor networks, and commercial wireless systems requiring a reliable and compact antenna solution. Explore more from our Electronics Components category for Antennas and wireless products suitable for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the ISM band frequency range of 863MHz to 873MHz.
It has a bandwidth of 10MHz, suitable for various wireless applications.
The antenna operates reliably within a temperature range of -40°C to 85°C.
It features a surface mount solder connection for easy assembly on PCBs.
Yes, this antenna is RoHS compliant, ensuring it meets environmental standards.
It is compatible with ISM band wireless protocols, including Bluetooth and Zigbee.
The antenna is designed in a compact chip form, optimized for internal SMT applications.
This antenna is manufactured in Taiwan, Province Of China, ensuring high quality standards.
It maintains a characteristic impedance of 50Ω for efficient signal integrity.
The antenna utilizes LTCC (Low Temperature Co-fired Ceramic) technology for its internal construction.
This model is ideal for industrial communications, IoT devices, and wireless sensor networks.
