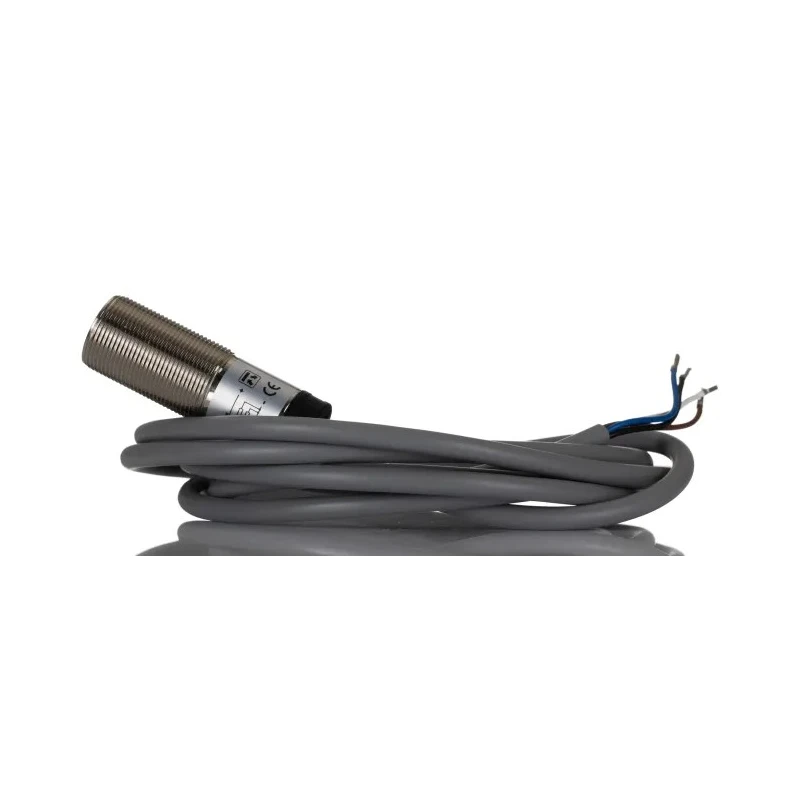

RS Pro Diffuse Reflection Photoelectric Sensor, Barrel Style, 0.4 m Detection Range, NPN NO/NC Output, Water Resistant IP67

RS Pro IP67 Diffuse Reflection Photoelectric Sensor model IP67 is a high-quality, barrel style photoelectric sensor designed for industrial and automation applications. It provides a non-contact detection method using an infrared LED light source, enabling reliable sensing of objects within a 0.4 meter range. The diffuse reflection technology ensures effective detection by reflecting emitted light off the target object.

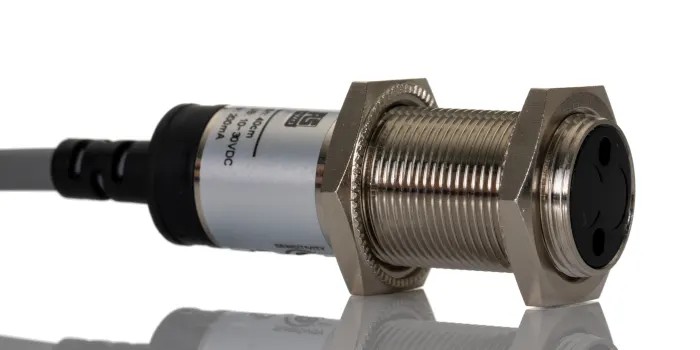

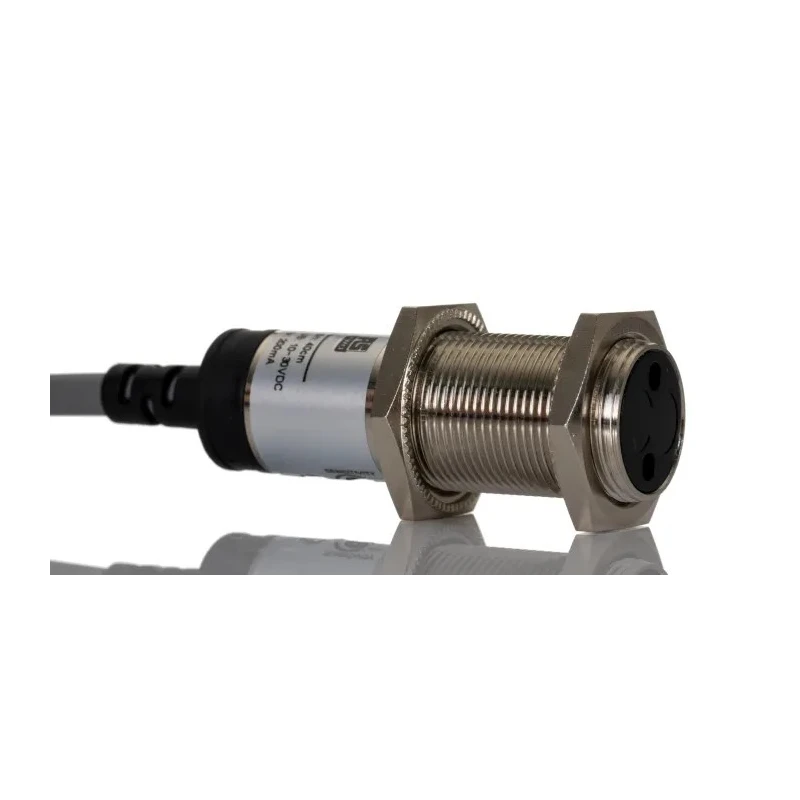

Constructed from durable copper nickel housing and designed to IP67 standards, this sensor offers excellent resistance to dust and water ingress, making it suitable for harsh industrial environments. Its compact barrel design with M18 thread size and screw mount allows secure and easy installation in various machinery and automation setups.

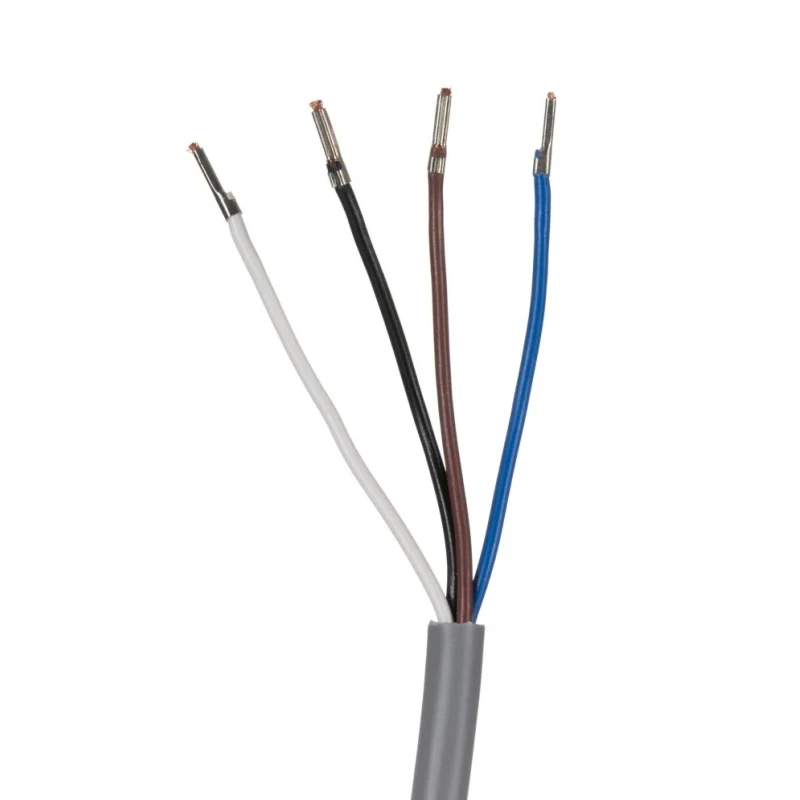

This sensor operates on a maximum DC voltage of 30 V and handles currents up to 200 mA, with a rapid 8.2 ms response time. It features an NPN normally open/normally closed output configuration combined with a cable terminal type for straightforward electrical interfacing. The operating temperature range from -15°C to 55°C broadens its applicability across diverse industrial conditions.

Certified to CE standards and designed for standard industrial use, this sensor does not carry hazardous area certifications but is reliable for many automation control situations. It is especially suited for manufacturing plants, quality control systems, conveyor monitoring, and presence or absence detection tasks.

Operating in industries such as manufacturing, water treatment, HVAC, and equipment automation, the RS Pro IP67 photoelectric sensor ensures long service life with minimal interference or sensor damage due to its contactless sensing principle.

This sensor uses diffuse reflection detection for reliable sensing. The barrel design enables secure mounting and durability. Equipped with a cable terminal type for easy connection. Operates within a temperature range from -15°C to 55°C.

Infrared LED light source ensures precise detection. Supports a maximum DC voltage of 30 V and maximum current of 200 mA. Response time is rapid at 8.2 milliseconds for efficient sensing. Housing is copper nickel material providing strength and corrosion resistance.

Thread size is M18 and mount type is screw for stable installation. Certified with CE standards but not hazardous area rated. Explore the RS Pro range of Photoelectric Sensors at EnvMart for reliable, industrial-grade sensing solutions tailored to automation and control applications.
