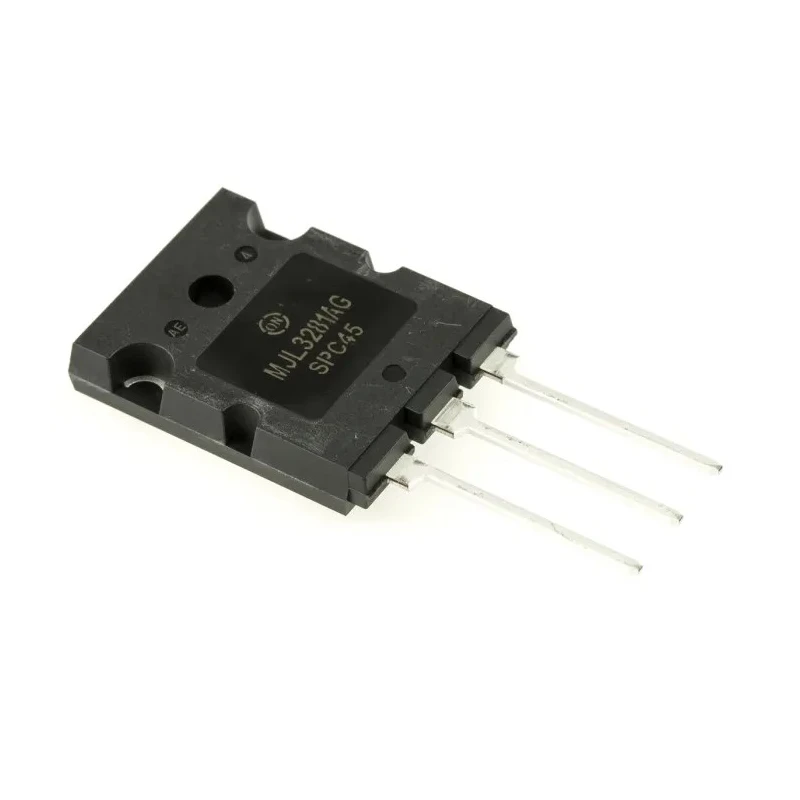

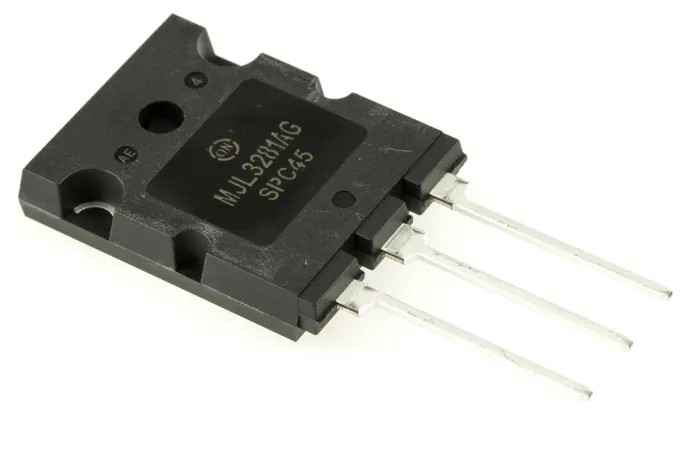

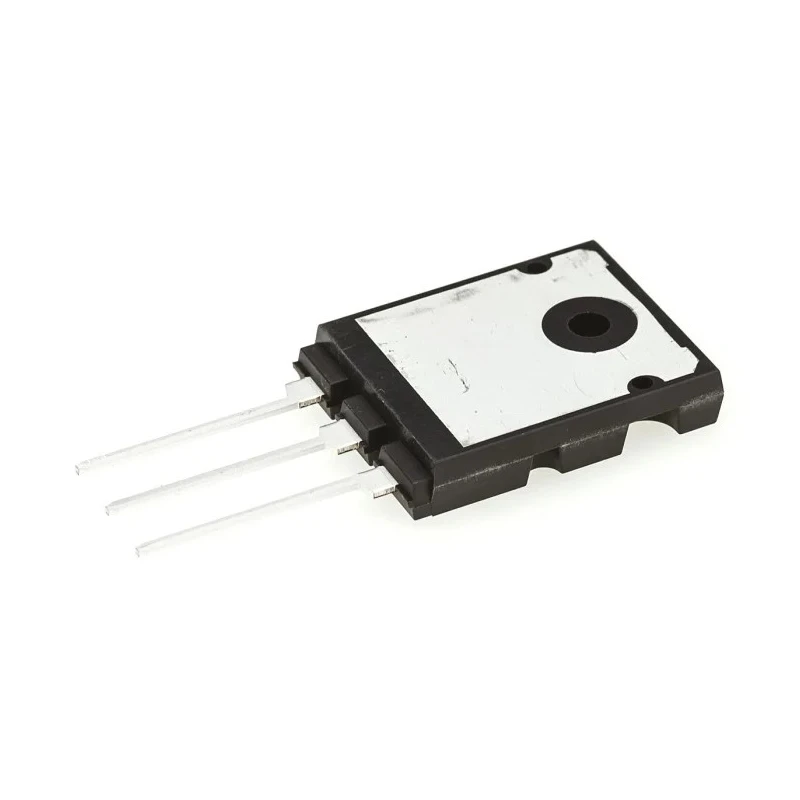

onsemi Transistor 15 A NPN 200 V 3-Pin TO-3BPL Power Transistor MJL3281AG

onsemi MJL3281AG is a high-power NPN bipolar transistor designed for applications requiring a maximum DC collector current of 15 A and collector-emitter voltage of 200 V. Packaged in a rugged TO-3BPL 3-pin through-hole configuration, this transistor is built to endure robust operating environments in industrial and power electronics sectors.

It boasts a maximum power dissipation of 200 W, enabling it to handle substantial power loads efficiently. The minimum DC current gain (hFE) of 45 ensures effective amplification, while a transition frequency of 30 MHz supports high-speed switching operations.

The MJL3281AG operates reliably over a broad temperature range from -65°C up to 150°C, making it suitable for harsh thermal conditions commonly encountered in industrial and manufacturing equipment. Its voltage ratings include a maximum collector-base voltage (VCBO) of 230 V and emitter-base voltage (VEBO) of 7 V, providing versatile application flexibility.

This power transistor is not automotive qualified and lacks special certifications but aligns with general semiconductor industry standards for discrete bipolar transistors. Its dimensions (height 47.8 mm, length 20.3 mm, width 5.3 mm) and three-pin design facilitate easy integration into control circuits and power amplification systems.

Applications for the MJL3281AG include industrial machinery, power supply regulation, motor control, and other high-power electric circuits requiring durable and reliable transistor components. It is supplied in a tube packaging format, ready for insertion into machinery to improve production efficiency.

This transistor features a TO-3BPL 3-pin package suitable for through-hole mounting. It has a maximum power dissipation of 200 W ensuring robust performance in demanding applications. Designed with a high cut-off frequency of 30 MHz for efficient switching and amplification.

The device operates across a wide temperature range from -65°C to 150°C for industrial reliability. Its minimum DC current gain is 45, providing good amplification characteristics. The component supports a maximum collector-base voltage of 230 V and emitter-base voltage of 7 V.

Compliant with industry standards but without any automotive qualification or special approvals. Ideal for industrial, power electronics, and control circuit applications requiring high current and voltage handling. Discover more power transistors and Bipolar Transistors at EnvMart to enhance your industrial and electronics projects with trusted components from leading brands.
