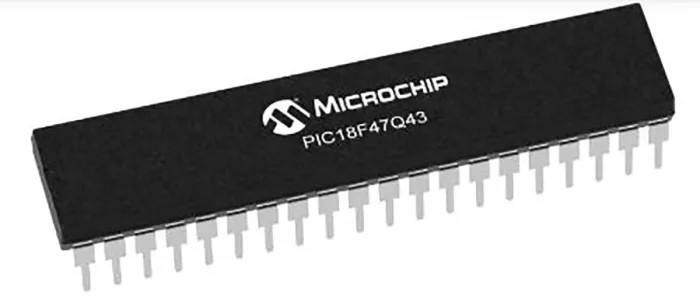

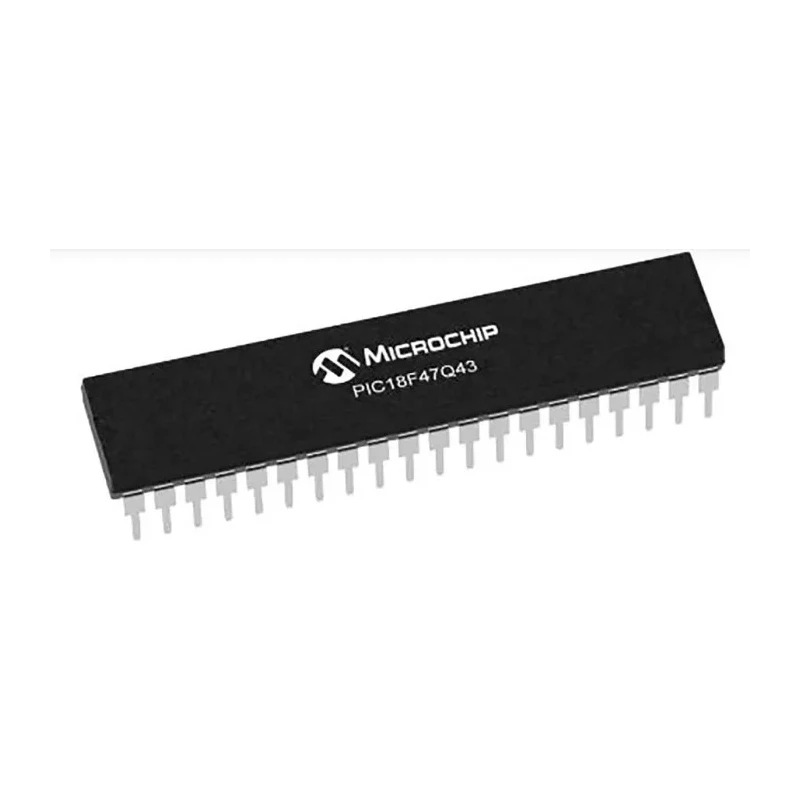

Microchip 8 bit PIC Microcontroller PIC18F47Q43-I/P, 32 MHz, 128kB FLASH, 40-Pin PDIP

Microchip PIC18F47Q43-I/P 8 bit PIC Microcontroller operates at a maximum clock frequency of 32 MHz and offers 128kB FLASH program memory with an 8-bit data bus width. Packaged in a 40-Pin PDIP, this microcontroller is intended for real-time control applications requiring reliable processing power and memory.

This device integrates 8.192kB RAM and 35 channels of 12-bit ADCs, enabling precise analog input measurement and advanced capacitance touch sensing with computation automation. It includes 2 analogue comparators and supports multiple timers, enhancing timing control in embedded applications.

The microcontroller supports supply voltages from 1.8V to 5.5V, suitable for diverse power supply designs. Its robust design includes low-current power-on reset, brown-out reset, and low-power brown-out reset options to ensure reliable start-up and operation. It dissipates a maximum power of 800mW and operates within an industrial temperature range of -40°C to 85°C.

Measuring 53.34mm in length, 5.08mm in height, and 0.58 inches in width, the 40-Pin PDIP package is fitted for various PCB footprints and surface mount applications.

This microcontroller is ideal for industrial automation, embedded systems, instrumentation, and consumer electronics that require precise control and advanced analog features. The FLASH memory and robust power management features make it suitable for low-power and high-performance systems.

This microcontroller features an 8-bit data bus width and a PIC core architecture. It has 128kB of program memory in FLASH type and 8.192kB of RAM. Operates from a supply voltage range of 1.8V to 5.5V, with a maximum clock frequency of 32 MHz.

Includes 2 analogue comparators and 35 channels of 12-bit ADC conversion for advanced sensing capabilities. Designed for use in real-time control applications with multiple timers (3 or 4 timers). Supports low-current power-on reset, brown-out reset, and low-power brown-out reset options for reliable operation.

Dimensions include a length of 53.34mm, height of 5.08mm, and width of 0.58 inches. Operating temperature ranges from -40°C to 85°C, suitable for various industrial environments. The package type is PDIP (Plastic Dual In-line Package) suitable for surface mounting.

Robust 800mW maximum power dissipation for stable performance under workload. Explore more Microcontroller solutions in the Electronics & Electricals category on EnvMart for a wide range of embedded and control applications.
