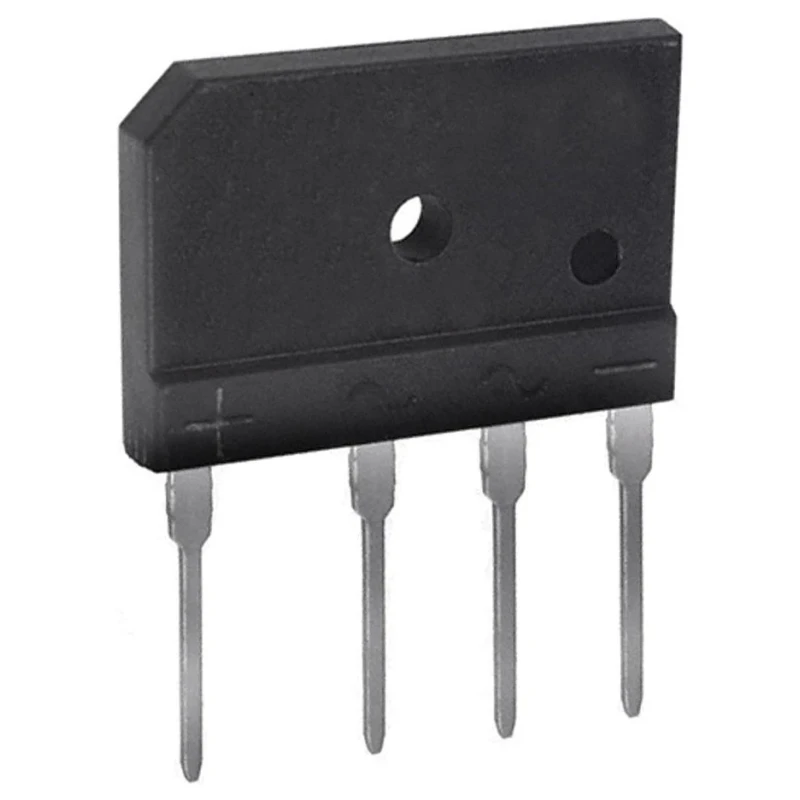

HY Electronic Corp Bridge Rectifier 600 V 220 A 4-Pin Through Hole GBJ1006
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 19.7mm |
| Length | 30.3mm |
| Model | GBJ1006 |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Series | GBJ |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBJ |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 10A |
| Peak Forward Voltage Vf | 1V |
| DiodesZetex Bridge Rectifier, 600 V 170 A, 4-Pin SingleBrand | DiodesZetex |
Key Features
- Features a 4-pin single configuration suitable for through hole mounting.
- Operates over a temperature range from -55°C to 150°C.
- Delivers a forward current rating of 10 A with a peak forward voltage of 1 V.
- Constructed with glass passivated technology for enhanced durability and reliability.
- Measures 30.3 mm in length, 4.8 mm in width and 19.7 mm in height.
- Converts AC to DC efficiently in power electronic circuits.
- Complies with UL94V-0 flammability classification for plastic materials.
- Manufactured in China with the GBJ series design.
Product Description
HY Electronic Corp GBJ1006 Bridge Rectifier is a high-performance semiconductor device designed for converting alternating current (AC) to direct current (DC) in various electronic applications. This model features a peak reverse repetitive voltage (Vrrm) rating of 600 V, supporting a forward current (If) of 10 A and a peak non-repetitive forward surge current (Ifsm) of 220 A, ensuring reliable operation under demanding surge conditions. Its glass passivated construction enhances stability and lifespan in circuit designs.
The bridge rectifier is housed in a compact GBJ package, with dimensions of 30.3 mm length, 4.8 mm width, and 19.7 mm height, suitable for through hole PCB mounting. It features a 4-pin single configuration and a peak forward voltage of 1 V, delivering efficient rectification with low voltage drop. The device operates reliably within -55°C to 150°C, making it suitable for a wide range of industrial, commercial, and electronic equipment applications.
The plastic materials used carry a UL94V-0 flammability rating, ensuring excellent safety standards. Manufactured in China under the GBJ series by HY Electronic Corp, this bridge rectifier is ideal for use in power supplies, motor control, inverters, and other power electronic systems requiring robust diode bridge solutions.
Robust 600 V peak reverse voltage with 220 A surge capability. Durable glass passivated construction for long-lasting use. Compact GBJ packaging allows easy through hole mounting on PCBs. Wide operating temperature range from -55°C to 150°C supports diverse environments.
Low forward voltage drop of 1 V enhances energy efficiency. 4-pin single configuration for straightforward integration into circuits. Conforms to UL94V-0 flammability classification for plastic materials. Designed for industrial, construction, HVAC, and manufacturing electronic applications.
This HY Electronic Corp bridge rectifier GBJ1006 is a reliable choice for engineers and designers focusing on power electronics in laboratory, industrial, commercial, and HVAC contexts. Browse similar Bridge Rectifiers and semiconductor devices for compatible solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GBJ1006 bridge rectifier has a peak reverse repetitive voltage (Vrrm) rating of 600 V.
This model supports a maximum forward current (If) rating of 10 A.
The peak non-repetitive forward surge current (Ifsm) capability is 220 A.
The dimensions of the GBJ1006 are 30.3 mm in length, 4.8 mm in width, and 19.7 mm in height.
It operates reliably over a temperature range from -55°C to 150°C.
The GBJ1006 features a 4-pin single configuration suitable for through hole mounting.
The peak forward voltage (Vf) drop for this model is 1 V.
The plastic materials used in this model comply with the UL94V-0 flammability classification.
This model is designed for through hole mounting on PCBs.
The GBJ1006 is manufactured in China.
This bridge rectifier belongs to the GBJ series.
The GBJ1006 is suitable for various electronic applications, including power supplies, motor control, and inverters.
