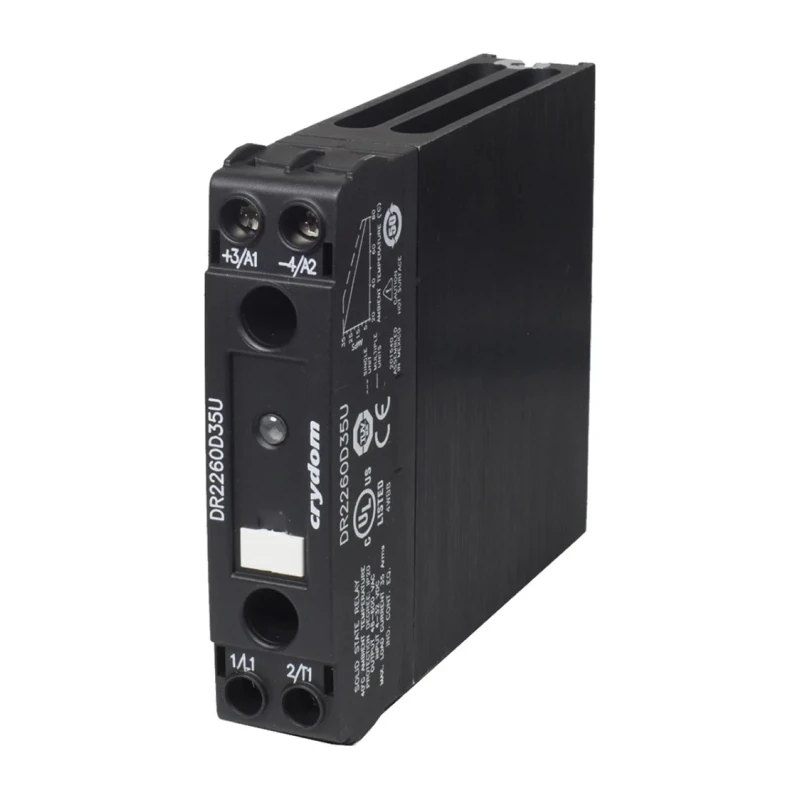

Crydom Solid State Relay DR22 Series, 20 A Load, 600 Vrms Load, DIN Rail Mount, 4 to 32 V DC Control DR22
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 93.2mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 20A |
| Standards/Approvals | RoHS, CE |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mA |
Key Features
- Supports control voltage range from 4 V DC to 32 V DC for versatile applications.
- Features zero voltage switching function to minimize electrical noise.
- Equipped with a screw terminal type for secure electrical connections.
- Operating temperature range extends from -40°C to 80°C for durability in harsh environments.
- Has an IP20 finger-safe rating providing protection against objects larger than 12 mm.
- Utilizes MOSFET output type for efficient load switching with low leakage current.
- Compact dimensions of 22.5 mm length, 116 mm width, and 93.2 mm height enable easy integration.
- Includes green LED status indicator for straightforward troubleshooting.
Product Description
Crydom DR22 Series Solid State Relay DR22 offers a 20 A maximum load current rating with a secure DIN rail mount configuration. Designed for industrial and automation applications, it features a 600 Vrms maximum load voltage and MOSFET output for reliable, silent switching.
This relay operates over a wide control voltage range of 4 to 32 V DC and employs zero voltage switching to minimize electrical noise and wear. Its screw terminal contacts facilitate installation and maintenance, while the device maintains optimal performance within a broad temperature range from -40°C to +80°C.
The IP20 rating ensures finger-safe operation, protecting against intrusion of objects greater than 12 mm. The unit’s self-extinguishing flame-retardant housing contributes to enhanced fire safety, making it suitable for demanding industrial environments such as power converters, HVAC systems, and manufacturing automation.
The compact size (22.5 mm length, 116 mm width, 93.2 mm height) combined with low off-state leakage current (0.1 mA) and low capacitance (8 pF) support high-integrity signal control in sensitive electronic systems. A green LED status indicator aids easy operation monitoring and troubleshooting.
20 A rated maximum load current for heavy-duty applications. DIN rail mounting for secure mechanical installation. Zero voltage switching reduces relay noise and prolongs device life. Operating temperature range from -40°C to +80°C for versatile use.
IP20 finger-safe protection for improved operational safety. Screw terminal connections ensure reliable contact and easy wiring. MOSFET output type delivers high switching efficiency. Self-extinguishing flame-retardant housing offers fire resistance.
Compact design optimizes panel space requirements. Green LED status indicator simplifies diagnostic and maintenance tasks.
Crydom DR22 Series Solid State Relays are widely used in industrial automation, HVAC control, power converters, and other electronic load switching applications where reliability, safety, and longevity are critical. This product originates from Mexico and complies with RoHS and CE standards.
Explore more solid state relay products in the Electronics & Electricals > Relays & Contactors > Solid State Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom DR22 Series Solid State Relay has a maximum load current rating of 20 A.
It supports a control voltage range from 4 V DC to 32 V DC.
This unit utilizes a MOSFET output type for efficient load switching.
The operating temperature range extends from -40°C to +80°C.
It has an IP20 rating, providing protection against objects larger than 12 mm.
The relay is designed for DIN rail mounting, ensuring secure mechanical installation.
The dimensions are 22.5 mm in length, 116 mm in width, and 93.2 mm in height.
The green LED status indicator simplifies operation monitoring and troubleshooting.
It complies with RoHS and CE standards.
The off-state leakage current is 0.1 mA.
It is equipped with screw terminal connections for secure electrical connections.
This model is widely used in industrial automation, HVAC control, and power converters.
