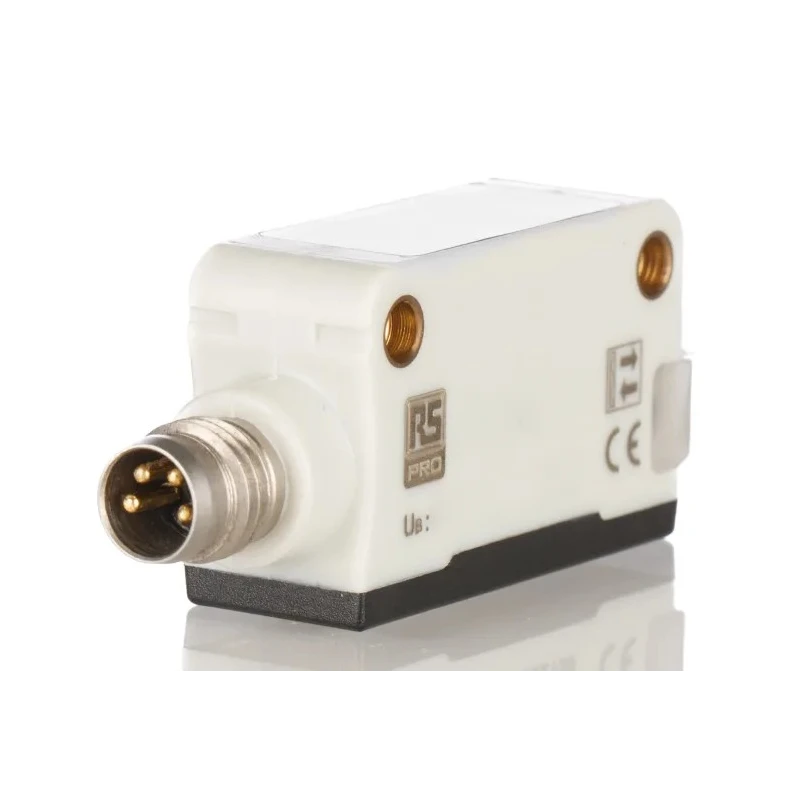

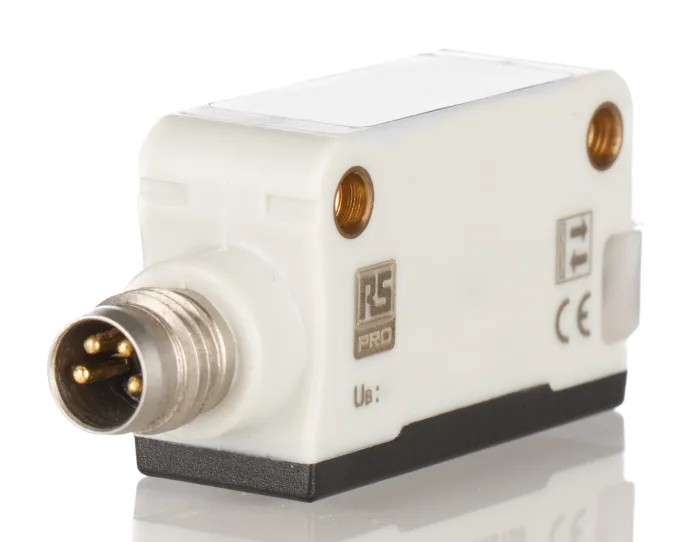

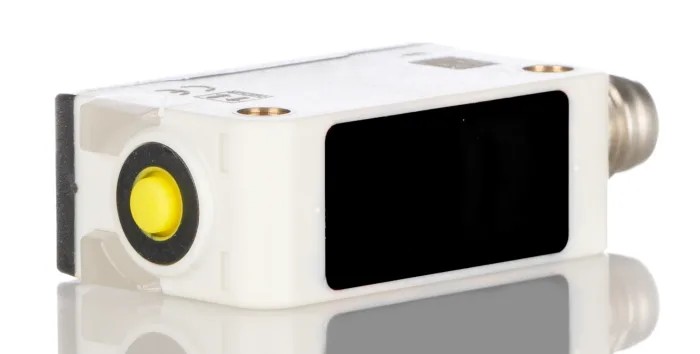

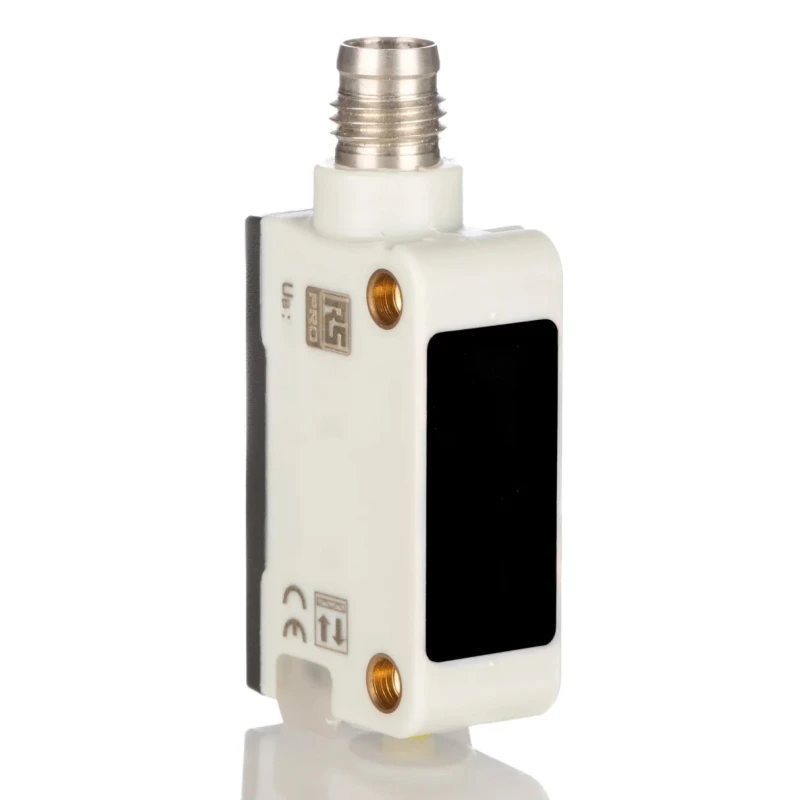

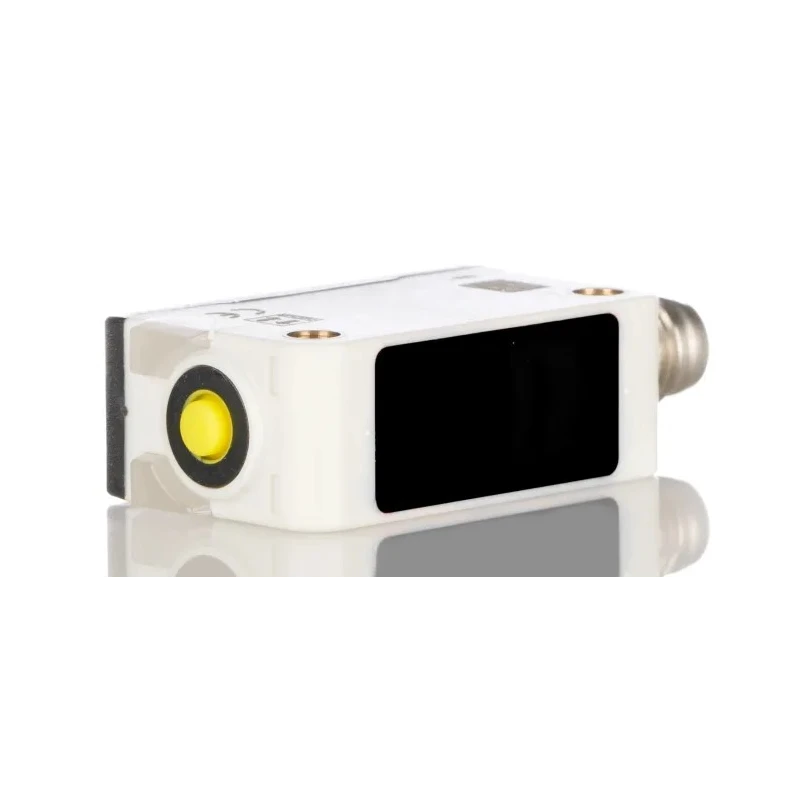

RS PRO Diffuse Reflection Photoelectric Sensor, Block Sensor, 1 m Detection Range, NPN NO/NC Output, M8 Connector IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 1ms |
| Light Source | Infrared LED |
| Detection range | 1 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polycarbonate |
| Electrical Connection | PVC cable or M8 Connector |
| Output type | NPN NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Note | Emitter and receiver should be used in pairs |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse Reflection |
| Terminal type | M8 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- The sensor uses diffuse reflection technology with an infrared LED light source for reliable detection.
- It offers a fast response time of 1 millisecond and is IP67 rated for protection in harsh environments.
- The device supports voltages up to 30 V dc and a maximum current of 200 mA.
- The housing is made from durable ABS and polycarbonate materials with bracket and screw mounting options.
- The sensor operates within a temperature range of -25°C to 55°C for versatile industrial applications.
- Output type is switchable between normally open and normally closed (NO/NC) with NPN transistor output.
- The electrical connection is via PVC cable or M8 connector for easy integration.
- It is CE certified and designed for use in industrial manufacturing, automation, and conveyor belt systems.
Product Description
RS PRO IP67 Diffuse Reflection Photoelectric Sensor, model IP67, is a compact block sensor designed for industrial automation tasks requiring precise object detection over a 1 meter range. It employs diffuse reflection with an infrared LED light source to detect presence or absence of objects without contact, making it ideal for conveyor belts, manufacturing plants, and control gear systems.
The sensor’s robust ABS and polycarbonate housing provides IP67 rated protection, ensuring reliable operation even in harsh environments. It supports a maximum DC voltage of 30 V and a current up to 200 mA, with a fast response time of 1 ms for efficient detection. Switchable NPN NO/NC output enhances flexibility in electrical control configurations.
Mounting options include bracket and screw types, and the electrical connection is facilitated through either PVC cable or an M8 connector. Operating temperature ranges from -25°C to 55°C, broadening its applicability across diverse industrial and commercial scenarios. The sensor is CE certified and manufactured to meet demanding automation standards.
Key features include one-click distance setting for accuracy, suitability for detecting high light and some transparent objects, and a universal housing design for wide sensor type replacement compatibility. Note that the sensor’s emitter and receiver should be used in pairs for optimal performance.
The sensor integrates easily into industrial automation, manufacturing, conveyor systems, and HVAC control environments. Its durable, IP67 rated housing ensures resistance to dust and water ingress. Infrared LED technology provides consistent object detection under varying light conditions.
Switchable output modes allow tailored control signal configurations. Compact and versatile sensor style supports a broad range of industrial uses. Explore our extensive range of RS PRO sensors and automation control products on EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a detection range of 1 meter, utilizing diffuse reflection technology for reliable object detection.
It features a switchable NPN output that can be configured as normally open (NO) or normally closed (NC).
The maximum current is 200 mA, and it supports a maximum DC voltage of 30 V.
This model has a fast response time of 1 millisecond, allowing for efficient detection.

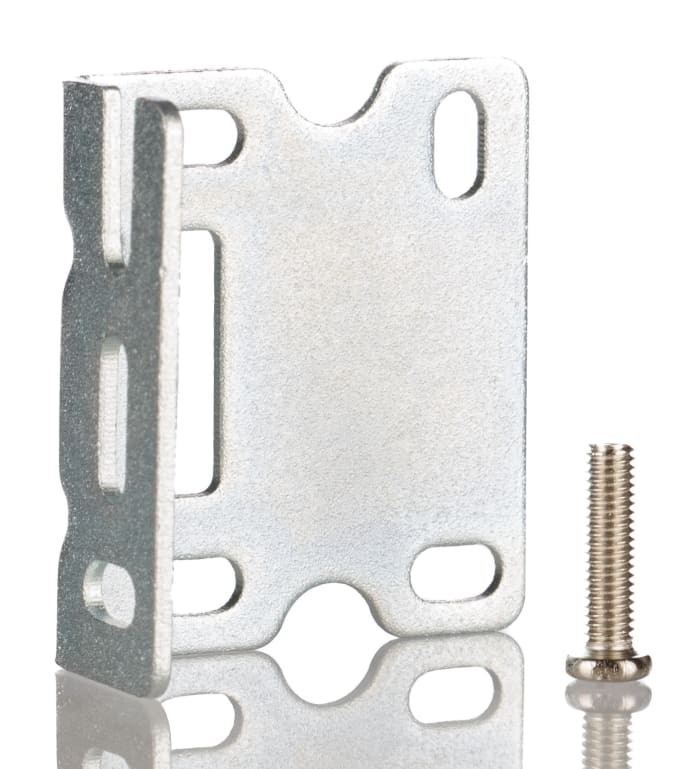

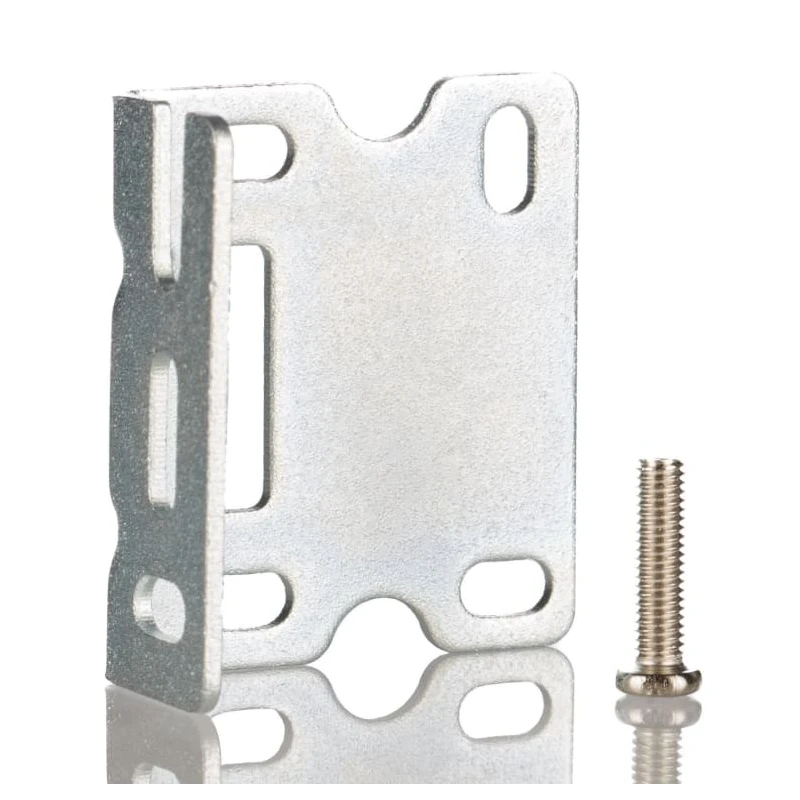

It can be mounted using either bracket or screw types, providing flexibility in installation.
The housing is made from durable ABS and polycarbonate materials, ensuring protection in various environments.
It operates within a temperature range of -25°C to 55°C, making it suitable for diverse industrial applications.
The electrical connection can be made via PVC cable or an M8 connector, facilitating easy integration.
Yes, it is rated IP67, providing protection against dust and water ingress, making it suitable for harsh environments.
It uses an infrared LED light source for reliable object detection without contact.
The sensor is CE certified, indicating compliance with relevant safety and performance standards.
Yes, it is noted that the emitter and receiver should be used in pairs for optimal performance.
