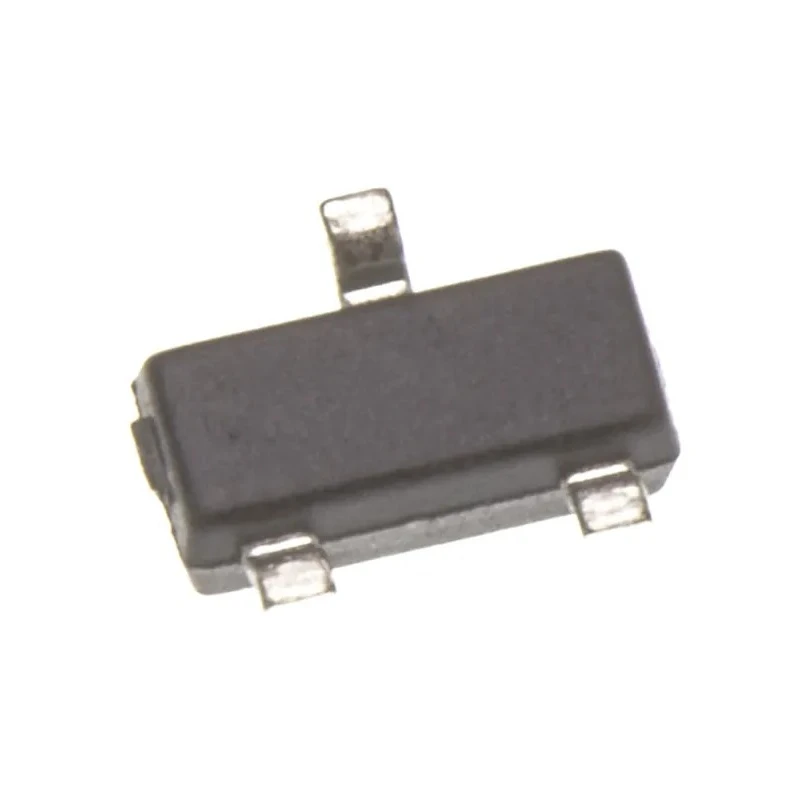

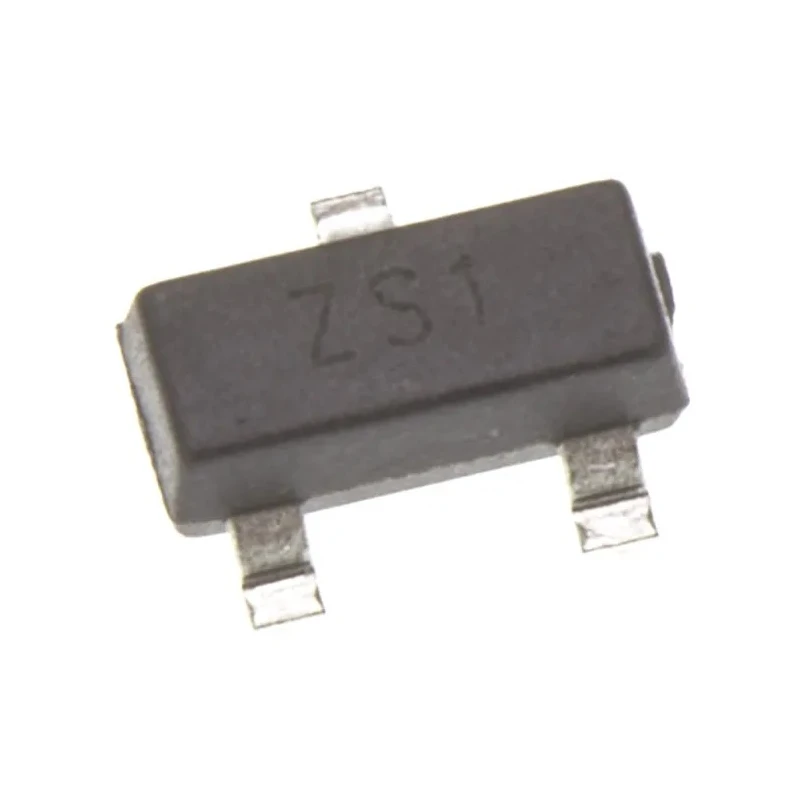

DiodesZetex 40 V 1.75 A Schottky Diode 3-Pin SOT-23 ZHCS1000TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3.05mm |
| Model | ZHCS1000TA |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | ZHCS1000X |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.75A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 12A |
| Maximum Forward Voltage Vf | 600mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Surface mount package type SOT-23 designed for easy PCB assembly.
- Low forward voltage drop of 600 mV improves efficiency.
- Peak reverse repetitive voltage up to 40 V supports various circuit applications.
- High peak non-repetitive forward surge current rating of 12 A ensures reliability under transient conditions.
- Operating temperature range from -55°C up to 125°C for industrial use.
- Automotive standard compliant AEC-Q101 for enhanced quality and reliability.
- Peak reverse current of 100 μA minimizes leakage in circuits.
- Fast peak reverse recovery time of 12 ns for high frequency switching.
Product Description
DiodesZetex ZHCS1000TA is a high-performance Schottky diode featuring a maximum continuous forward current of 1.75 A and a peak reverse repetitive voltage rating of 40 V. Packaged in a compact 3-pin SOT-23 surface mount package, it delivers efficient rectification with a low forward voltage of 600 mV, helping reduce power loss in electronic circuits.
This diode supports a broad operating temperature range from -55°C to 125°C, making it suitable for industrial, automotive, and commercial electronic applications. The device complies with the AEC-Q101 automotive standard, ensuring robust performance in harsh environments.
With a peak non-repetitive forward surge current of 12 A and a fast peak reverse recovery time of 12 ns, the ZHCS1000TA excels in circuits requiring rapid switching and high reliability. Its compact dimensions (3.05 mm length, 1.4 mm width, and 1 mm height) allow for space-saving designs in modern printed circuit boards.
This Schottky diode is ideal for power management, voltage clamping, and protection circuits where low forward voltage drop and fast switching are essential. The low peak reverse current of 100 μA further reduces power consumption and improves circuit stability.
Surface mount SOT-23 package for efficient PCB integration. Low forward voltage drop reduces power dissipation. High surge current capacity for transient tolerance. Wide operating temperature range supports diverse environments.
Automotive-grade reliability per AEC-Q101 standard compliance. Compact size enables minimal PCB footprint. Fast recovery time suitable for high frequency applications. Single diode configuration for versatile electronic designs.
Low leakage current enhances performance and durability. Manufactured in China with consistent quality control.
Choose the DiodesZetex ZHCS1000TA Schottky Diode for reliable, efficient rectification and switching in industrial, automotive, and commercial electronics. Explore our comprehensive range of semiconductor components and accessories available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1.75 A.
It has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop is 600 mV, which helps improve efficiency.
This diode is packaged in a 3-pin SOT-23 surface mount type.
The peak non-repetitive forward surge current rating is 12 A.
The operating temperature range is from -55°C to 125°C.
The peak reverse current is 100 μA, which minimizes leakage in circuits.
The peak reverse recovery time is 12 ns, making it suitable for high frequency switching applications.
Yes, it complies with the AEC-Q101 automotive standard for enhanced quality and reliability.
The dimensions are 3.05 mm in length, 1.4 mm in width, and 1 mm in height.
It has a single diode configuration, which is versatile for various electronic designs.
This model is manufactured in China, ensuring consistent quality control.
