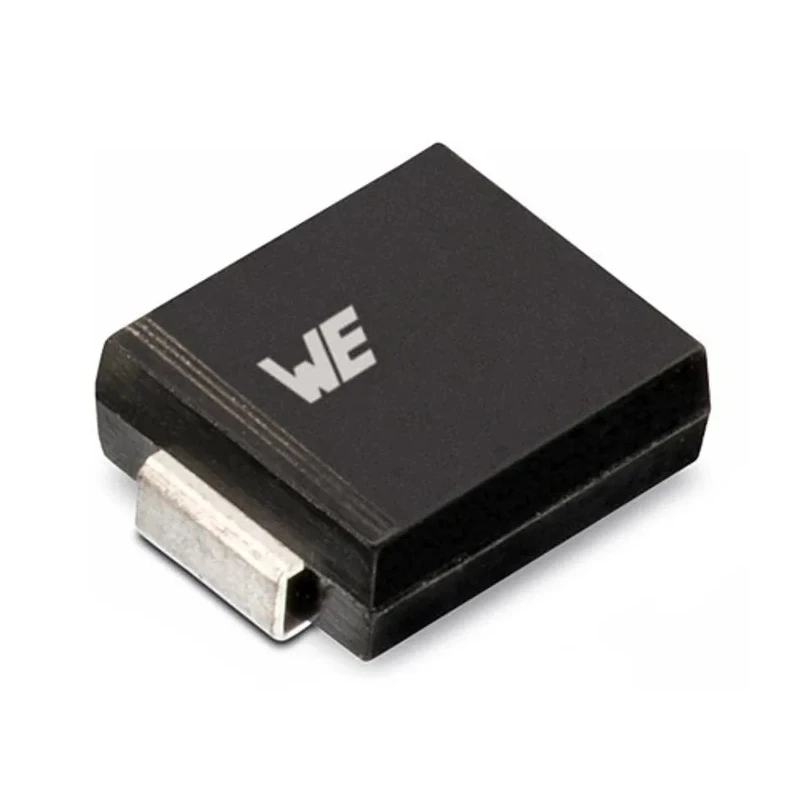

Wurth Elektronik 1-Element Bi-Directional TVS Diode Surface Mounted 3 kW 2-Pin DO-214 824551511

Wurth Elektronik 824551511 is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for protecting electronic circuits from voltage spikes and transient surges. Featuring a 3 kW peak pulse power rating and a 2-pin DO-214 surface mount package, this TVS diode is suitable for use in industrial, automotive, telecommunications, and electronic device protection applications.

This diode is configured as a single element bi-directional device, providing efficient clamping of transient voltages with a low profile package that facilitates compact PCB mounting. It offers a minimum breakdown voltage of 59.7 V with a clamping voltage of 82.4 V, ensuring reliable protection against high voltage transients.

Capable of handling a maximum peak pulse current of 36.4 A and operating over a wide temperature range from -65°C to 150°C, the device ensures durability and stable performance under demanding environmental conditions. Its glass passivated junction and low leakage current of 2 μA contribute to high circuit reliability.

The compact dimensions of 6.86 mm length, 5.9 mm width, and 2.34 mm height make it suitable for space-constrained electronic designs. Manufactured in China, this component adheres to Wurth Elektronik's standards for quality and performance.

Configured as a single element for effective transient voltage suppression. Bi-directional design accommodates voltage spikes in both directions. Surface mount package type DO-214 ensures low profile and efficient PCB integration.

Clamping voltage at 82.4 V with minimum breakdown voltage of 59.7 V for robust protection. Peak pulse current rating up to 36.4 A suits high transient load applications. Operates reliably between temperatures from -65°C to a maximum of 150°C.

Compact physical dimensions: 6.86 mm length, 5.9 mm width, and 2.34 mm height. Low maximum reverse leakage current of 2 μA enhances circuit stability. Manufactured in China maintaining product quality standards.

This Wurth Elektronik 824551511 TVS diode is ideal for transient voltage protection in industrial electronics, automation systems, power supplies, telecommunications equipment, and any environment requiring fast surge suppression to protect sensitive electronic components.
