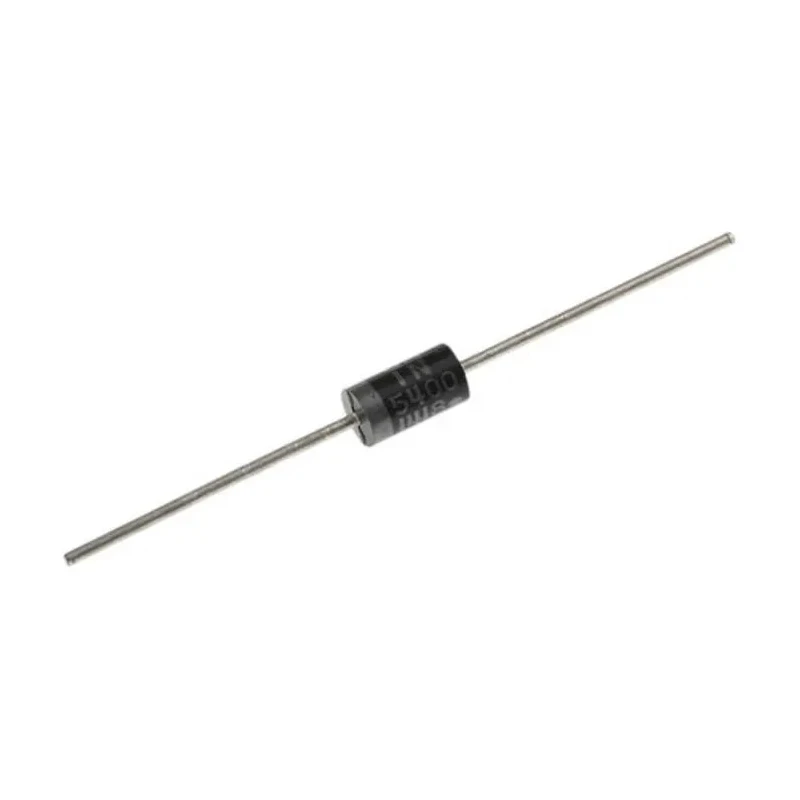

onsemi 400 V 3 A Schottky Diode Through Hole 2-Pin DO-41 1N5404RLG
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Length | 9.5mm |
| Model | 1N5404RLG |
| Mount Type | Through Hole |
| Series | 1N5404 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1V |
| onsemi 400V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5404GBrand | ON Semiconductor |
| Taiwan Semi 400V 3A, Diode, 2-Pin DO-201AD 1N5404 R0Brand | Taiwan Semiconductor |
| Fairchild 400V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5404Brand | Fairchild Semiconductor |
Key Features
- This Schottky diode features a maximum continuous forward current of 3 A.
- It offers a peak reverse repetitive voltage of 400 V, suitable for medium voltage circuits.
- The diode has a low maximum forward voltage of 1 V, improving efficiency.
- Package type is DO-41 with two pins for easy through-hole mounting.
- Operating temperature ranges from -65°C minimum to 150°C maximum.
- Peak non-repetitive forward surge current is rated up to 200 A, ensuring robustness under transient conditions.
- The diode’s length is 9.5 mm and diameter is 5.3 mm, compact for discrete semiconductor uses.
- It does not have automotive or specific standards approvals.
Product Description
onsemi 1N5404RLG is a Schottky diode designed for discrete semiconductor and power rectification applications operating with a maximum continuous forward current of 3 A and peak reverse voltage of 400 V. This diode uses a through-hole mounting style with a DO-41 package and two pins, supporting easy integration into various electronic assemblies.
Its low maximum forward voltage of 1 V enhances efficiency by minimizing power loss during conduction, ideal for power supply circuits and power management solutions. The diode supports a wide operating temperature range from -65°C to 150°C, enabling reliable performance in industrial and commercial environments.
The device exhibits a peak non-repetitive forward surge current of 200 A, making it resilient to transient overloads commonly encountered in electronic systems. Its compact physical dimensions (9.5 mm length and 5.3 mm diameter) suit space-constrained applications in electronics manufacturing.
This product is particularly suited for power rectification in industrial, consumer electronics, telecommunications, and general electrical engineering contexts. This Schottky diode features a maximum continuous forward current of 3 A.
It offers a peak reverse repetitive voltage of 400 V, suitable for medium voltage circuits. The diode has a low maximum forward voltage drop of 1 V for enhanced efficiency. Package type is DO-41 with two pins for easy mounting.
Operating temperature ranges from -65°C to 150°C for robust performance. Peak non-repetitive forward surge current is 200 A, ensuring transient tolerance. Compact size with 9.5 mm length and 5.3 mm diameter. Made in China by onsemi with model number 1N5404RLG.
Explore our extensive selection of semiconductors and Schottky Diodes at EnvMart for industrial, electronic, and power conversion applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 3 A.
The peak reverse repetitive voltage rating is 400 V, making it suitable for medium voltage circuits.
The maximum forward voltage drop is 1 V, which helps to enhance efficiency during operation.
This diode has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for various applications.
The operating temperature range for this model is from -65°C to 150°C.
The peak non-repetitive forward surge current is rated up to 200 A, ensuring resilience under transient conditions.
This diode uses a through-hole mounting style with a DO-41 package and two pins for easy integration.
The diode configuration is single, suitable for various electronic applications.
The peak reverse current is rated at 50 μA.
This Schottky diode is suitable for power rectification in industrial, consumer electronics, telecommunications, and general electrical engineering contexts.
This Schottky diode is manufactured by onsemi.
This diode is manufactured in China.
