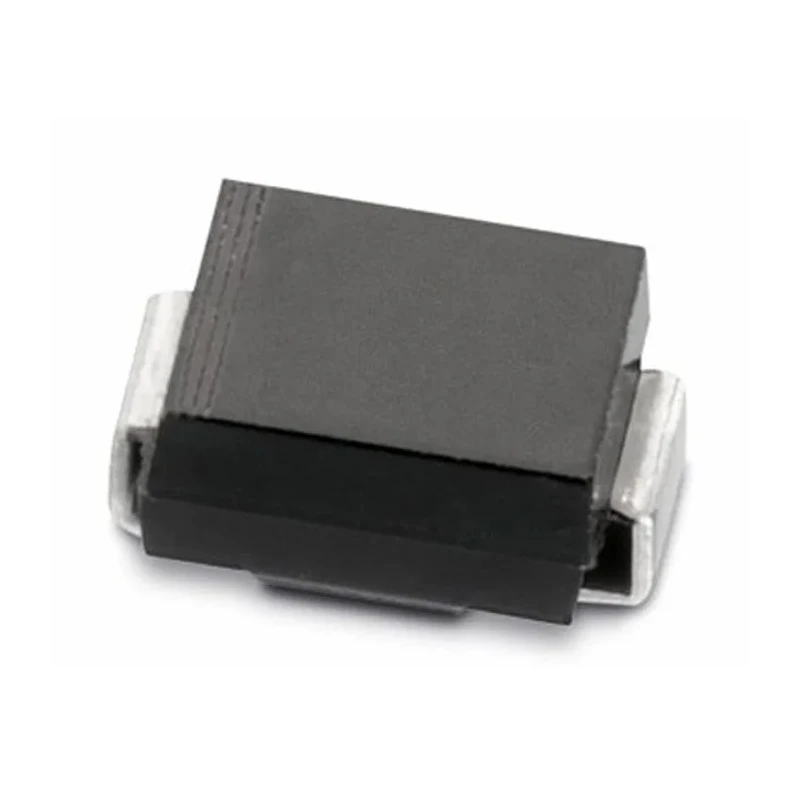

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521301
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.3mm |
| Length | 4.32mm |
| Width | 3.62mm |
| Mount Type | Surface |
| Series | WE-TVSP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 35.05V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 12.4A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode configuration is single and bi-directional ensuring effective transient voltage suppression.
- Minimum breakdown voltage is 35.05 V with a clamping voltage of 48.4 V.
- Operates reliably in temperatures ranging from -65°C to 150°C.
- Maximum peak pulse current rating is 12.4 A suitable for transient events.
- Compact dimensions of 4.32mm length, 3.62mm width, and 2.3mm height provide low profile mounting.
- Glass passivated junction ensures fast response time and durability.
- Maximum reverse leakage current is only 1 μA preserving device efficiency.
- Ideal for industrial and electronic applications requiring robust voltage spike protection.
Product Description
Wurth Elektronik 824521301 is a 1-element bi-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transients. This device has a peak pulse power dissipation rating of 600 W, making it suitable for high energy transient suppression in industrial and consumer electronics.
It features a DO-214 surface mount package with a low profile form factor measuring 4.32 mm in length, 3.62 mm in width, and 2.3 mm in height. The glass passivated junction provides rapid response times essential for protecting circuits during sudden voltage transients.
The diode offers a minimum breakdown voltage of 35.05 V with a clamping voltage of 48.4 V, ensuring the device clamps unwanted voltage spikes effectively. It operates efficiently across a wide temperature range from -65°C to 150°C, supporting reliability in various environmental conditions.
The maximum peak pulse current is rated at 12.4 A with a low maximum reverse leakage current of 1 μA to maintain performance integrity. This makes it an excellent choice for industrial electronics, power supplies, and telecommunications equipment requiring protection from voltage surges and electrostatic discharge.
The Wurth Elektronik 824521301 TVS diode is manufactured in China and adheres to standard industry specifications, though no specific certifications are listed. Its single diode configuration and 2-pin DO-214 package simplify mounting and integration into PCBs.
The diode configuration is single and bi-directional, critical for bi-directional transient suppression. The TVS diode withstands peak pulse power of 600 W for transient voltages. It features a surface mount DO-214 package with compact and low profile dimensions.
Designed for reliable operation between -65°C to 150°C for varied industrial environments. The device exhibits low reverse leakage current and fast response times. Typical uses include industrial electronics, power supplies, communication systems, and circuit board protection.
Compact size and pin configuration allow efficient PCB integration. Explore more Wurth Elektronik electronic components and TVS Diodes on EnvMart to find suitable solutions for transient voltage protection in your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this TVS diode is 600 W, making it suitable for high energy transient suppression.
The minimum breakdown voltage for this model is 35.05 V, ensuring effective clamping of voltage spikes.
The dimensions of the DO-214 package are 4.32 mm in length, 3.62 mm in width, and 2.3 mm in height, allowing for low profile mounting.
The maximum peak pulse current rating for this diode is 12.4 A, suitable for transient events.
It operates reliably in temperatures ranging from -65°C to 150°C, supporting various environmental conditions.
This model features a single and bi-directional diode configuration, which is critical for bi-directional transient suppression.
The clamping voltage of this TVS diode is 48.4 V, which helps in effectively clamping unwanted voltage spikes.
The maximum reverse leakage current for this model is only 1 μA, which helps maintain device efficiency.
This diode is designed for surface mounting, which simplifies integration into PCBs.
This diode is suitable for industrial electronics, power supplies, communication systems, and circuit board protection.
The test current for this model is 1 mA, which is used for testing the diode's characteristics.
This TVS diode is manufactured in China, adhering to standard industry specifications.
