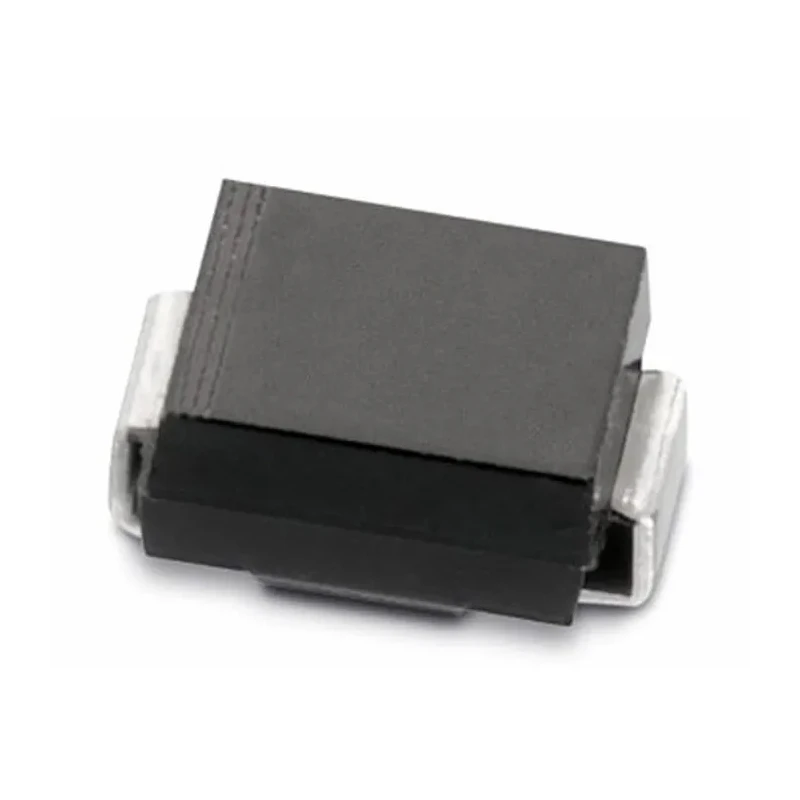

Wurth Elektronik 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 Package 824520601

Wurth Elektronik 824520601 Uni-Directional TVS Diode is a highly reliable transient voltage suppressor designed to protect sensitive electronic circuits from voltage spikes and transients. Featuring a single element diode configuration in a compact 2-pin DO-214 surface mount package, this device offers a peak pulse power dissipation of 600 W, making it ideal for applications requiring fast and efficient transient protection.

The diode operates within a voltage range characterized by a minimum breakdown voltage of 70.2 V and a clamping voltage of 96.8 V. It supports a maximum peak pulse current of 6.2 A, providing robust surge current handling capability to safeguard downstream components.

Its wide operating temperature range from -65°C to 150°C allows operation in demanding industrial, electronic manufacturing, and automotive applications, even though this specific model is not automotive standard certified.

The small form-factor DO-214 package measures 4.32 mm in length, 3.62 mm in width, and 2.3 mm in height, enabling compact PCB layouts and easy surface mounting. The glass-passivated junction technology ensures fast response times and enhanced device longevity under transient events.

Typical applications include protection for power supplies, communication devices, industrial control systems, and other electronic equipment vulnerable to voltage surges. The product is manufactured in China, ensuring consistent quality and performance suitable for a variety of industrial and manufacturing environments.

Uni-directional diode configuration suitable for protecting circuits against voltage transients. Peak pulse power dissipation rating of 600 W ensures robust performance under surge conditions. Compact DO-214 package with 2 pins for surface mounting applications.

Operating voltage range includes minimum breakdown voltage of 70.2 V and clamping voltage of 96.8 V. Wide operating temperature range from -65°C to 150°C for industrial environments. Maximum peak pulse current of 6.2 A supports high transient current handling.

Low maximum reverse leakage current of 1 μA minimizes standby power loss. Glass passivated junction ensures fast response and reliability for transient voltage suppression. Compact dimensions of 4.32 mm length, 3.62 mm width, and 2.3 mm height allow space-efficient PCB design.

Manufactured in China, compliant with standard semiconductor product quality for industrial use. Explore the Wurth Elektronik range on EnvMart for quality semiconductor components suited for industrial protection and power management solutions.
