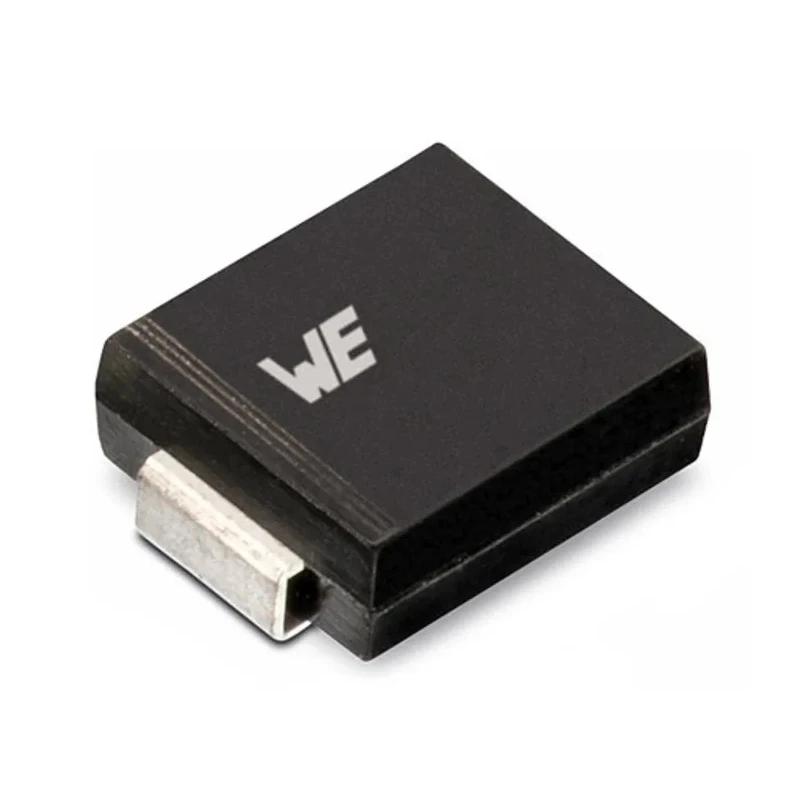

Wurth Elektronik 1-Element Uni-Directional TVS Diode 3 kW, 2-Pin DO-214 824550800

Wurth Elektronik 824550800 is a high-performance 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic circuits from transient voltage spikes. Rated at 3 kW peak pulse power dissipation, this diode offers robust protection in a compact DO-214 surface mount package. Its single element uni-directional configuration enables effective clamping of overvoltage conditions with minimal impact on circuit operation.

This device features a minimum breakdown voltage of 9.36 V and a clamping voltage of 13.6 V, providing reliable suppression of voltage surges. It supports a peak pulse current of up to 300 A, while maintaining low maximum reverse leakage current of 50 μA, enhancing circuit stability and efficiency.

The diode is suited for operation across a wide temperature range from -65°C to 150°C, making it applicable in demanding industrial, automotive, and electronic environments. Its glass passivated junction offers fast response time with low profile design, making it ideal for space-constrained printed circuit board assemblies.

With measured dimensions of 2.34 mm height, 6.86 mm length, and 5.9 mm width, the DO-214 package type facilitates easy surface mounting. The series designation WE-TVSP reflects Wurth Elektronik's commitment to producing reliable transient voltage suppressors tailored for various power and signal line protection needs.

Applications include industrial equipment, power supply protection, automotive electronics, and communication devices where transient voltage spikes might cause damage or malfunction. This product ensures extended device longevity and enhanced circuit reliability through effective surge protection.

Manufactured in China under strict quality controls, this component is supplied in new condition, ready for assembly and integration into protective electronic circuits. Uni-directional diode with single element configuration.

Minimum breakdown voltage of 9.36 V suitable for protection against voltage spikes. High clamping voltage of 13.6 V ensures effective transient suppression. Designed for operation between -65°C and 150°C for reliability in harsh environments.

Peak pulse current rating up to 300 A with low leakage current of 50 μA. Low-profile glass passivated junction structure enhances fast response time. Compact dimensions with height 2.34 mm, length 6.86 mm, and width 5.9 mm.

Surface mount package type DO-214 simplifies assembly on PCBs. Series WE-TVSP suitable for industrial and electronic applications requiring transient voltage protection. Manufactured in China with new condition assurance.
