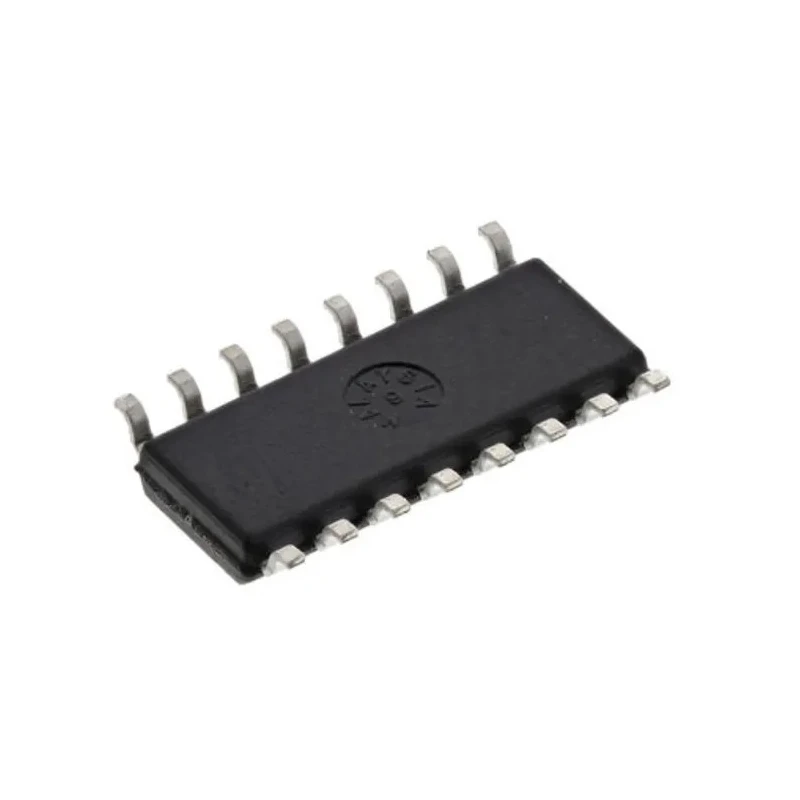

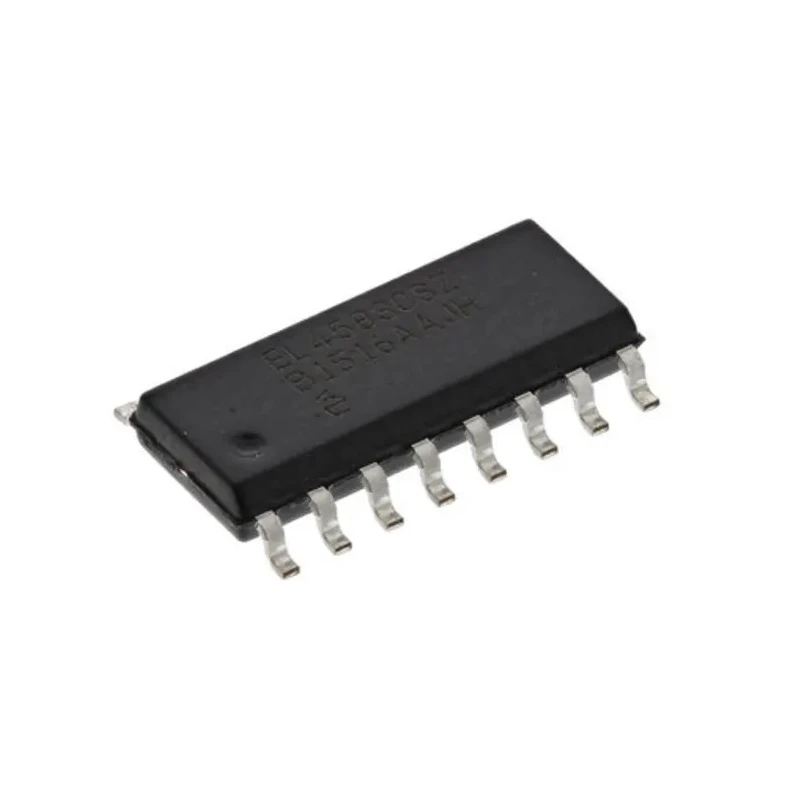

Renesas Electronics Line Transceiver CMOS/TTL Non-Inverting 16-Pin SOIC ICL3232CBNZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.65mm |
| Length | 10.5mm |
| Model | ICL3232CBNZ |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ISL32 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | TTL |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 0.3μs |
| Supply Current | 1mA |
Key Features
- Designed for RS-232 line driver and receiver applications.
- Operates between 3V minimum and 5.5V maximum supply voltage.
- Supports data rates up to 1 Mbps with maximum propagation delay of 0.3 microseconds.
- Surface mount device with compact 7.6 mm width and 10.5 mm length dimensions.
- Low power consumption with supply current of 1 mA.
- Operates reliably between 0°C and 70°C temperature range.
- Includes non-inverting TTL logic function for integrated interface performance.
- Ideal for electronic, industrial, and telecommunications interface circuits.
Product Description
Renesas Electronics ICL3232CBNZ is a CMOS/TTL line transceiver designed for RS-232 serial communication interfaces. Featuring non-inverting logic, this 16-pin SOIC device allows seamless integration into electronic systems requiring reliable signal transmission and reception.
The transceiver operates over a supply voltage range from 3V to 5.5V and supports maximum propagation delay times of 0.3 microseconds at load capacitance. It delivers a low supply current of 1 mA, making it suitable for power-sensitive applications.
Its surface mount SOIC package measures 7.6 mm in width, 10.5 mm in length, and 2.65 mm in height, ideally suited for compact PCB designs in industrial and communication products.
This device is rated for operation within 0°C to 70°C, ensuring reliable function in standard environmental conditions. The non-inverting TTL logic family support enables dependable signal logic compatibility.
Common uses include RS-232 line drivers and receivers within embedded systems, industrial automation, instrumentation, and telecommunications equipment. The transceiver ensures noise immunity and signal integrity for line interface applications.
Designed for RS-232 communication lines with integrated driver and receiver functions. Low voltage operation with a minimum of 3V required and a maximum supply of 5.5V. Fast switching with a propagation delay under 0.3 microseconds at standard load capacitance.
Compact 16-pin SOIC package allows efficient surface mount assembly. Low power consumption with typical 1 mA supply current. Rated for operating temperatures ranging from 0°C to 70°C. Non-inverting CMOS/TTL logic compatibility simplifies system design.
Explore a range of semiconductor interface ICs and line transceivers from Renesas Electronics on EnvMart for your industrial and electronic component needs.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates between a minimum supply voltage of 3V and a maximum supply voltage of 5.5V.
It supports data rates up to 1 Mbps, making it suitable for high-speed communication applications.
The device has a compact surface mount package with dimensions of 7.6 mm in width, 10.5 mm in length, and a height of 2.65 mm.
The maximum propagation delay time is 0.3 microseconds at standard load capacitance.
It operates reliably within a temperature range of 0°C to 70°C.
It features non-inverting TTL logic compatibility, allowing for seamless integration into electronic systems.
The supply current for this model is typically 1 mA, making it suitable for power-sensitive applications.
It comes in a 16-pin SOIC package, designed for efficient surface mount assembly.
Common applications include RS-232 line drivers and receivers in embedded systems, industrial automation, and telecommunications equipment.
The input type is single-ended, which is typical for RS-232 communication lines.
The country of origin for this model is India.
This line transceiver belongs to the CMOS/TTL logic family, ensuring compatibility with various digital circuits.
