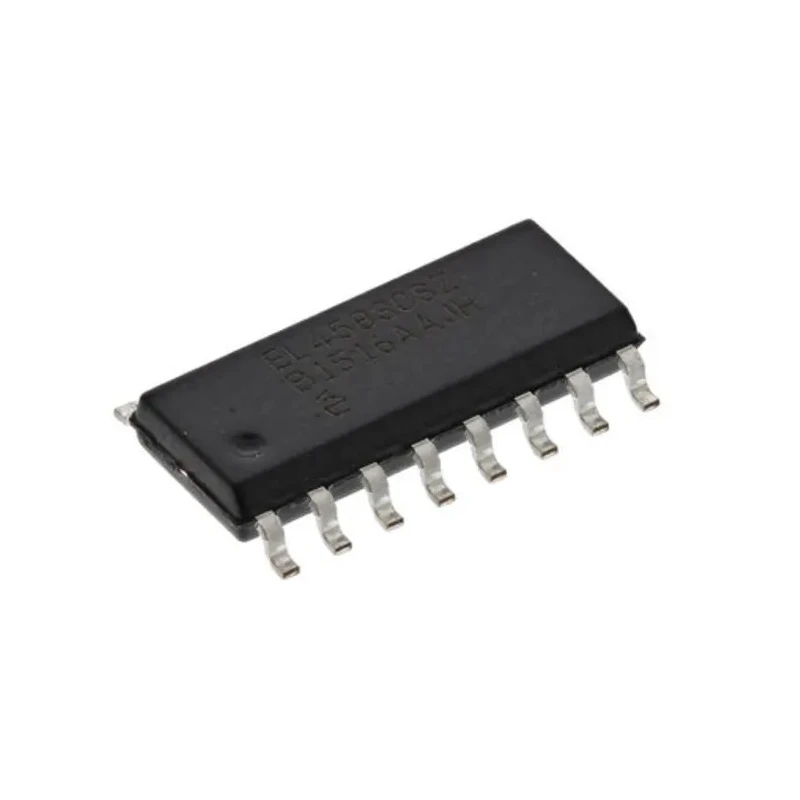

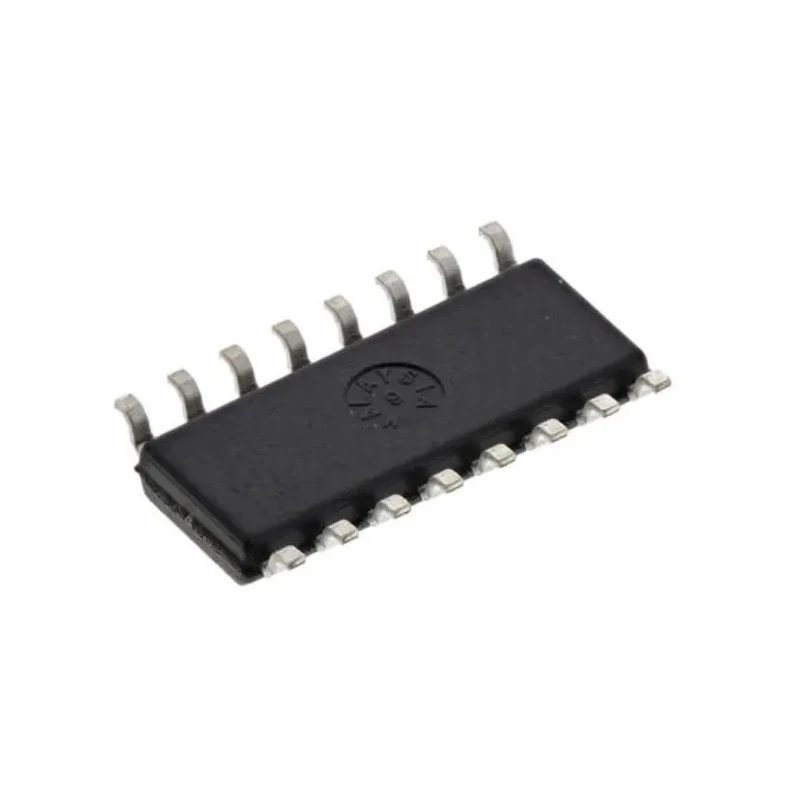

Renesas Electronics Line Transceiver, CMOS/TTL Logic, Non-Inverting, Surface Mount 16-Pin SOIC Package ICL3232IBNZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.65mm |
| Length | 10.5mm |
| Model | ICL3232IBNZ |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ISL32 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | TTL |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 0.3μs |
| Supply Current | 1mA |
Key Features
- Supports supply voltage range from 3V to 5.5V.
- Maximum propagation delay time of 0.3 microseconds at capacitive load.
- Operates reliably in temperature range from -40°C to 85°C.
- Low supply current consumption of approximately 1mA for efficient power use.
- Compact 16-pin SOIC surface mount package with 10.5 mm length and 7.6 mm width.
- CMOS/TTL logic family with single-ended TTL input and CMOS/TTL output.
- Non-inverting polarity ensures signal integrity.
- Ideal for RS-232 line driver and receiver applications supporting data rates up to 1 Mbps.
Product Description
Renesas Electronics ICL3232IBNZ is a high-performance line transceiver IC designed for RS-232 communication interfaces. It uses CMOS/TTL logic technology and provides non-inverting signal processing in a compact 16-pin SOIC surface mount package.
This device supports a minimum supply voltage of 3V and can operate up to 5.5V, making it versatile for various embedded and industrial electronic systems. The maximum propagation delay time of 0.3 microseconds ensures fast data transmission suitable for data rates up to 1 Mbps.
Operating temperature range from -40°C to 85°C allows reliable performance under harsh environmental conditions typically found in industrial, automotive, and commercial electronics.
The component features a low supply current of 1mA, optimizing power efficiency in battery-powered or low-energy communication modules. The 16-pin SOIC package has compact dimensions (10.5 mm length, 7.6 mm width, and 2.65 mm height), making it suitable for modern surface mount PCB layouts.
The device belongs to the TTL logic family, accepting single-ended TTL inputs and offering CMOS/TTL compatible outputs. Non-inverting polarity is ideal for maintaining signal shape without inversion through communication lines.
This line transceiver is commonly used as an RS-232 driver and receiver in industrial, laboratory instrumentation, communication equipment, and embedded systems. Its compact packaging and electrical characteristics support applications in automated machinery and control systems requiring robust serial data communication.
Originally developed by Intersil and now marketed under Renesas Electronics brand, the ICL3232IBNZ is a reliable Line Transceiver IC crafted to meet demanding interface communication standards without dedicated external components.
Explore EnvMart's wide selection of semiconductor interface ICs and electronic components designed for quality and durability in industrial electronics and embedded applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range from 3V to 5.5V.
The maximum propagation delay time is 0.3 microseconds at a capacitive load.
It operates reliably in a temperature range from -40°C to 85°C.
This unit uses CMOS/TTL logic technology with single-ended TTL input and CMOS/TTL output.
It comes in a compact 16-pin SOIC package with dimensions of 10.5 mm in length, 7.6 mm in width, and 2.65 mm in height.
The supply current consumption is approximately 1mA, which optimizes power efficiency.
This line transceiver is commonly used as an RS-232 driver and receiver in industrial, laboratory instrumentation, and embedded systems.
The output type is CMOS/TTL, ensuring compatibility with various systems.
This model has a pin count of 16.
The logic function is TTL, providing non-inverting signal processing.
The country of origin is China.
This model belongs to the ISL32 series of line transceiver ICs.
