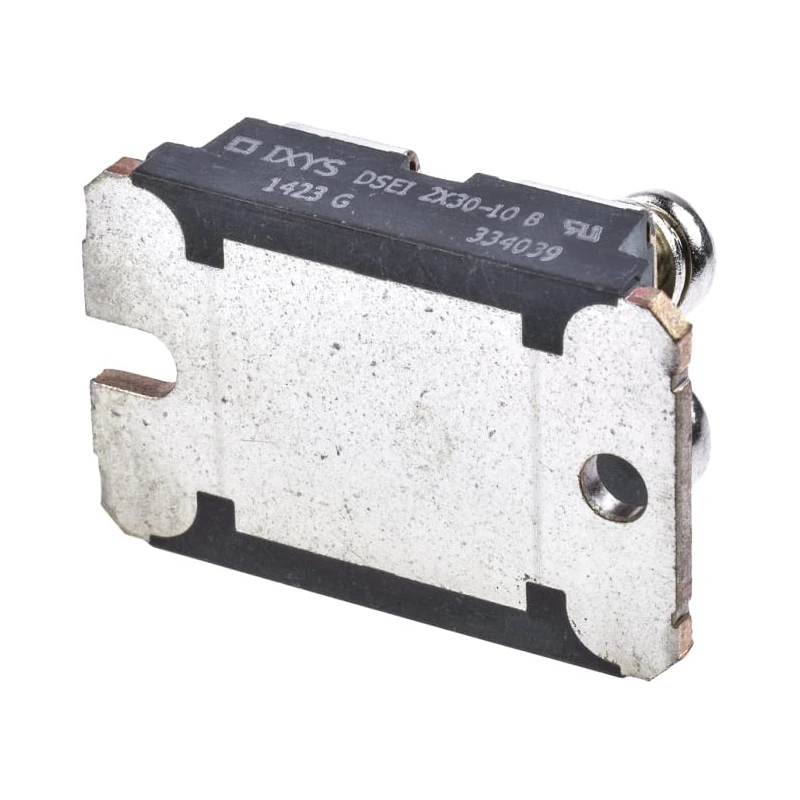

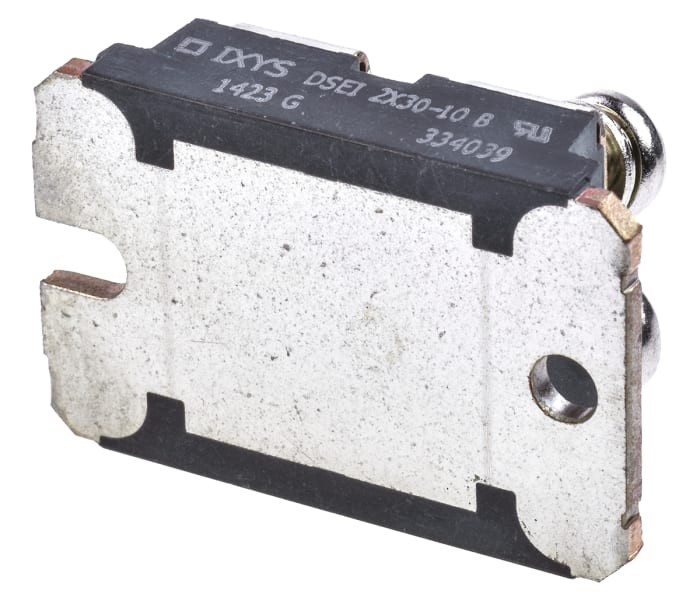

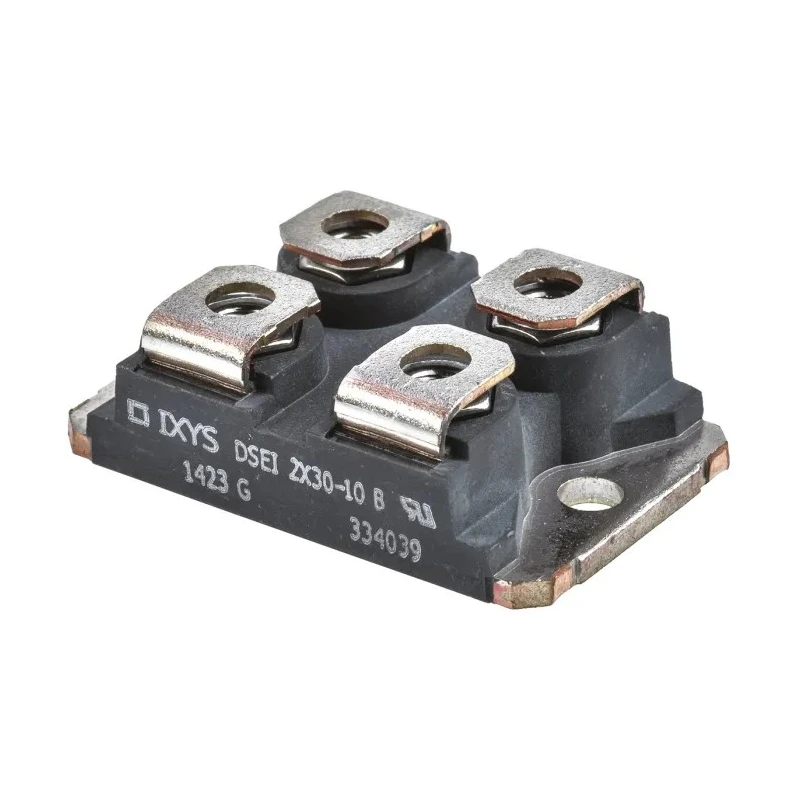

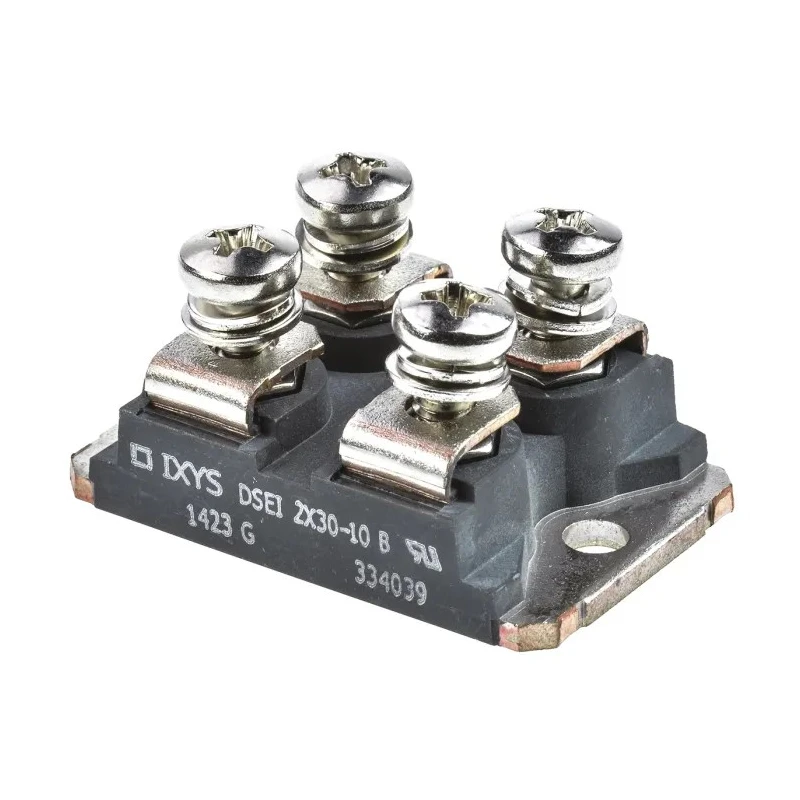

IXYS High Power Switching Diode 1 kV 30 A 4-Pin SOT-227 Package DSEI2X30-10B

IXYS DSEI2X30-10B is a high power switching diode designed for robust electronic applications requiring efficient rectification and high current handling capacity. Featuring a 1 kV peak reverse repetitive voltage rating and capable of sustaining a continuous forward current of 30 A, this diode is well-suited for power electronics, industrial automation, and other demanding semiconductor uses.

The diode housed in a 4-pin SOT-227 package allows panel mounting and provides electrical isolation for improved performance. Its switching rectifier type configuration supports rapid switching operations with a peak reverse recovery time of 50 nanoseconds, optimizing overall efficiency in power conversion circuits.

The device operates reliably in harsh temperature conditions ranging from −40°C low temperatures up to a maximum operating temperature of 150°C, making it ideal for industrial and manufacturing environments that demand durability and high thermal tolerance.

Additional electrical specifications include a peak forward surge current of 210 A and a maximum forward voltage of 2.4 V, controlling power dissipation effectively during switching cycles. The compact physical dimensions of length 38.23 mm, width 25.42 mm, and height 9.6 mm facilitate integration into a wide range of electronic assemblies.

This diode is not certified with any automotive standards, aligning it primarily for industrial, manufacturing, and general electronics applications. It complies with global RoHS directives, ensuring environmental safety in production and disposal.

Supports a maximum continuous forward current of 30 amps for high power applications. Designed with a peak reverse repetitive voltage of 1,000 volts to handle substantial voltage stress. Utilizes a switching rectifier diode configuration with isolated diode design for efficient operation.

Equipped with four pins in a compact SOT-227 package suitable for panel mounting. Operates reliably across a wide temperature range from −40°C to 150°C for industrial environments. Peak forward surge current capacity of 210 amps ensures protection against transient spikes.

Maximum forward voltage drop of 2.4 volts aids in minimizing power loss during conduction. Fast peak reverse recovery time of 50 nanoseconds improves switching efficiency in power circuits. Physical dimensions include a length of 38.23 mm, width of 25.42 mm, and height of 9.6 mm.

RoHS compliant and designed without automotive standards, suitable for general electronic industrial use.

This switching diode is ideal for use in industrial power management, electronic manufacturing, laboratory testing equipment, automotive electronics (non-certified), and semiconductor research. It ensures precise switching control and high reliability in electronic circuitry.
